FP7105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7105

FP7105: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size181KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7105 Overview

RF AMPLIFIER MODEL

FP7105 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13.5 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	150 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7105

Features

Medium Gain: 15 dB Typical

Low Noise Figure: 2.5 dB Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7105, 4 Pin TO-8 (T4)

TN7105, 4 Pin Surface Mount (SM3)

FP7105, 4 Pin Flatpack (FP4)

BX7105,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point....... +46 dBm (Typ.)

Second Order Two Tone Intercept Point........ +42 dBm (Typ.)

Third Order Two Tone Intercept Point............ +30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Gain Flatness (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)*

Power

Vdc

TYPICAL

Ta= 25 ºC

1 - 250 MHz

15.0

+0.4

+15

-18.5

<1.6:1

2.5

MIN/MAX

Ta = -55 ºC to +85 ºC

1 - 150 MHz

13.5 Min.

+0.7 Max.

+14 Min.

-18 Max.

2.0:1 Max.

3.5 Max.

+5 Min.

45 Max.

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +12 Volts

Continuous RF Input Power .................................. +15 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

NOTES:

Care should always be taken to effectively ground the case of each unit.

If DC is present on RF input/output, this model requires additional external blocking

capacitors.

*Noise Figure measured at 10 to 150 MHz.

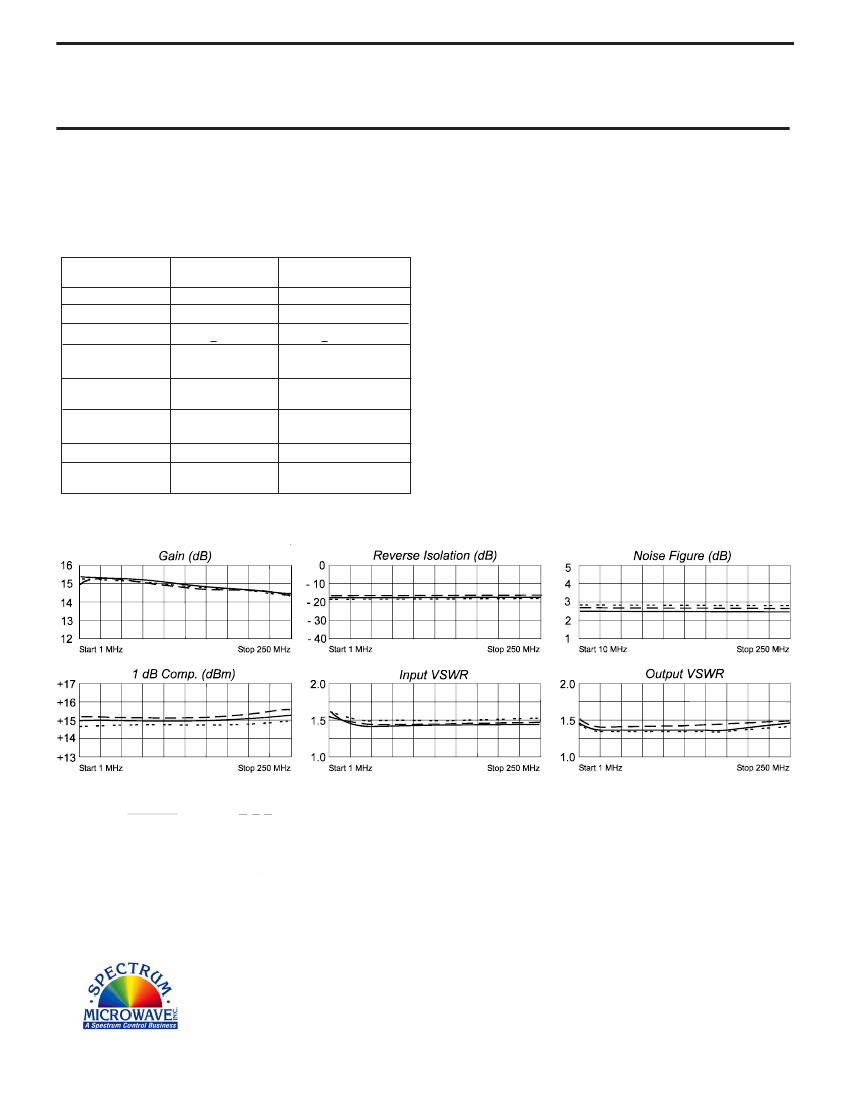

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

4/12/10

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7105 Related Products

	FP7105	BX7105	TM7105	TN7105
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	13.5 dB	13.5 dB	13.5 dB	13.5 dB
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	150 MHz	150 MHz	150 MHz	150 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz	1 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2

Recommended Resources

Precision constant current source circuit diagram

Solar water heater automatic water supply circuit

Automatic dimming desk lamp circuit

20v stable power supply circuit

0 to 300MHz non-Baud band amplifier circuit

Basic op amp symbols and power connections
