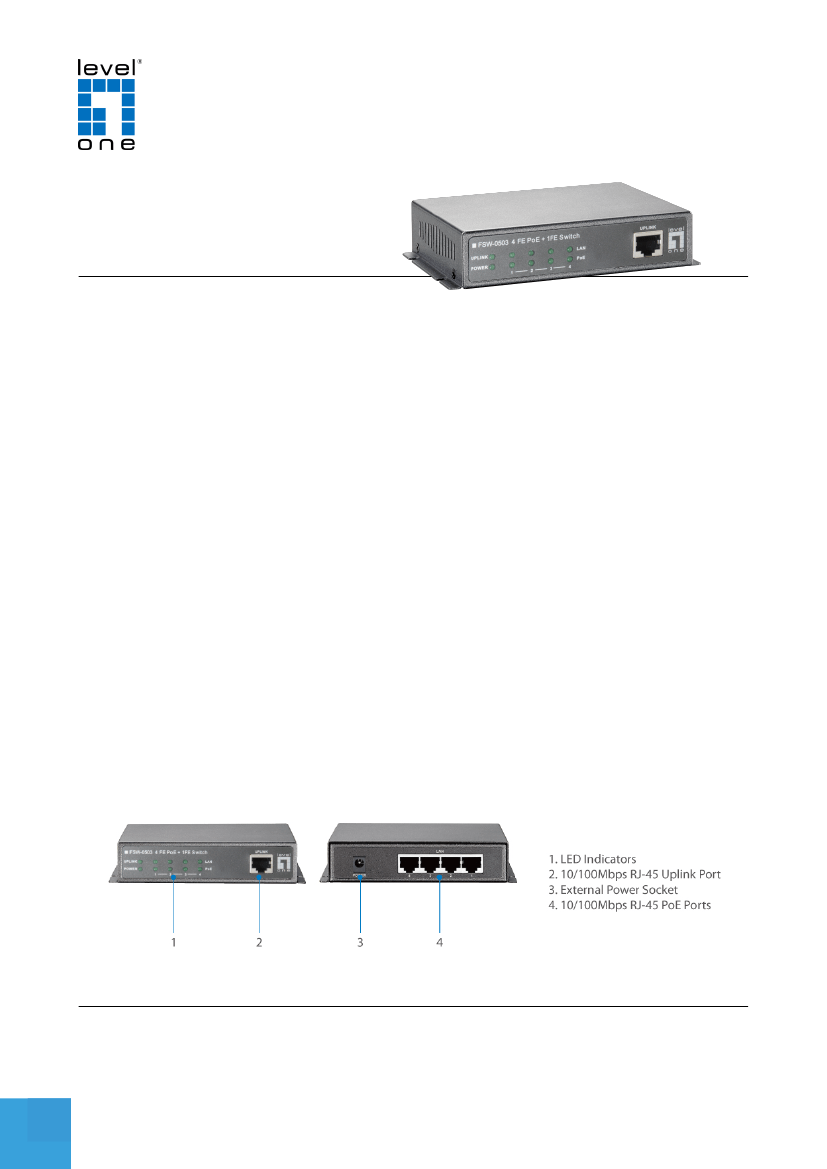

FSW-0503 Version: 1
4 FE PoE + 1 FE Switch, 61.6W
Advanced PoE Solution
FSW-0503(Z) is a 4 Fast Ethernet PoE +1 Fast Ethernet Switch. Per PoE port is powered up to 15.4W.
The total PoE power budget is 61.6W. It is an ideal solution for extensive WLAN, IP surveillance system
deployments especially when the legacy and PoE compliance devices co-exist in your network
environment. The switch automatically detects IEEE 802.3af compliant device connected and provides
power and data over a single cable to these devices.
FSW-0503(Z) is compact in size, making it ideal for desktop users with limited space. You also have option
of installing several FSW-0503(Z) in a 19” chassis (POC-6000) for a largescale rack-mount PoE Solution.
Stable and Reliable Network Environment
FSW-0503(Z) enables users to deploy a stable and reliable high-speed LAN environment, with store-and-
forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and
backpressure flow control mechanisms work respectively for full and half duplex modes. This device
supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.
Easy to Use
For instant error detection, the switch is equipped with a full range of LEDs to help monitor and troubleshoot
problems on the network.
Key Features
- Provides flexibility of 4 x 10/100BASE-TX PoE ports
- IEEE 802.3af PoE compliant to simplify deployment and installation
www.level1.com
Page 1 of 5
-
-
-
-
Auto-detection and protection of non-standard PoE devices
10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Total PoE power budget: 61.6W, up to 15.4W per port
Specifications
System Specifications
Buffer Memory (KB):
48KB
Connectors and Cabling:
4 x 10/100Base-TX RJ-45 PoE Ports
1 x 10/100Base-T RJ-45 Uplink Port
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
Indicator:
Power, Uplink, LAN 1~4 port, PoE 1~4 port
Transmission Method:
Store-and-Forward
Power:
Power Consumption: < 65W
Power Input: 100 ~ 240V DC / 50~60Hz 1.35A External Power Adapter
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
Features
PoE:
Power Budget: Max. 61.6w
PoE Standard: IEEE 802.3af Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 48V DC, Max. 15.4 watts (802.3af)
Power Pin Assignment: 1/2(+), 3/6(-)
Performance
MAC Address Table:
1K
Data Transfer Rate:
10/100Mbps
Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
Environment
Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C
www.level1.com
Page 2 of 5
Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%
Physical Specifications
Dimensions (W x D x H mm):
90 x 120 x 28 mm
Weight (g):
800 g
Others
Approval and Compliance:
FCC, CE

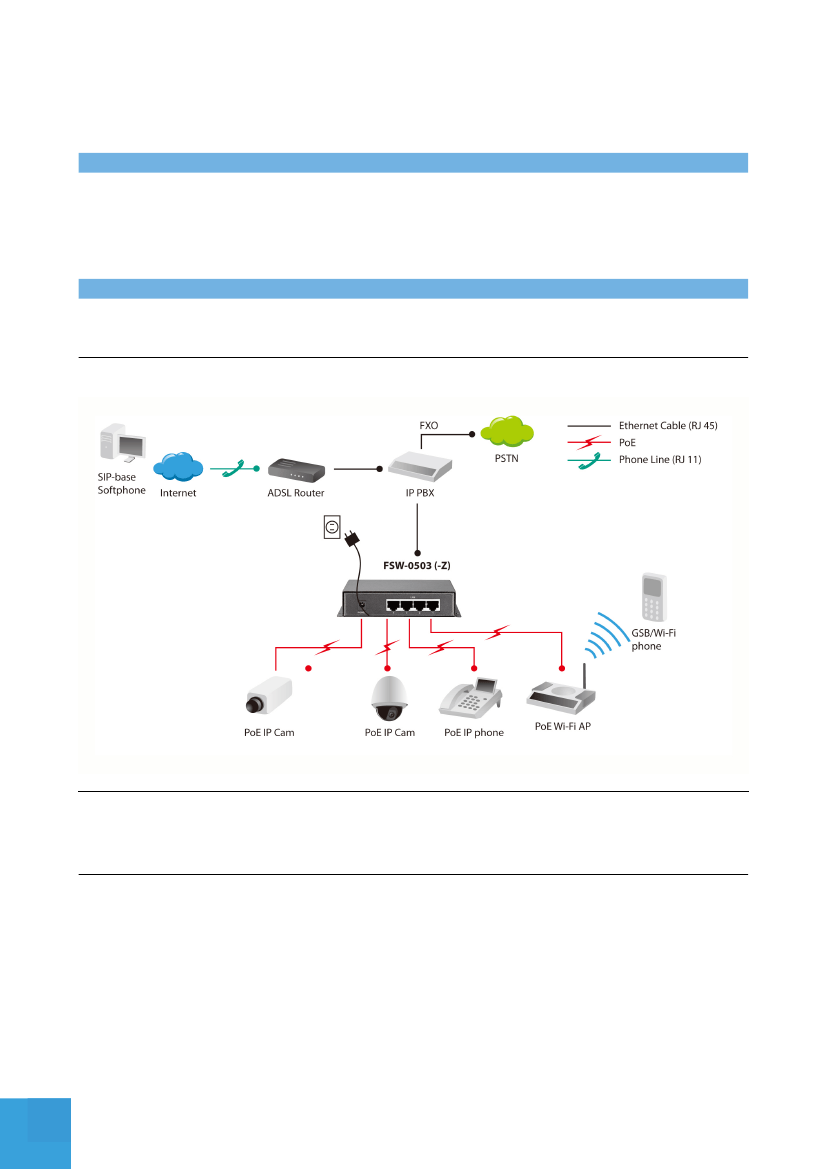

Diagram
Order Information
FSW-0503: power adapter included
FSW-0503Z: excl. power adapter
Package Contents
User Manual
www.level1.com
Page 3 of 5
Optional Accessory
POC-6000
8-Bay Chassis, 1000W
POC-4002
8-Bay Chassis, 500W
No liability or responsibility for any errors or omissions in the content.
Specifications are subject to change without notice.
www.level1.com
Page 4 of 5
All mentioned brand names are registered trademarks and property of their owners.
Copyright © Digital Data Communications GmbH, Germany. All Rights Reserved.
www.level1.com
Powered by TCPDF (www.tcpdf.org)
Page 5 of 5
