RF AMPLIFIER
MODEL
TM6712
Features
n
n
n
n
Low Noise Figure: <1.7 dB Typical
Medium Output Power: +9 dBm Typical
Operating Temp. - 55 ºC
to +85
ºC
Environmental Screening Available
Available as:
TM6712, 4 Pin TO-8 (T4)
TN6712, 4 Pin 0.450” Surface Mount (SM3)
FP6712, 4 Pin Flatpack (FP4)
BX6712, SMA Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ...... +42 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +36 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +20 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25 ºC
5 - 500 MHz
33
+9
-42
1.75:1
1.5:1
1.7
+12
35
MIN/MAX
Ta = -55 ºC to +85 ºC
5 - 500 MHz
31.0 Min.
+8.0 Min.
-40 Max.
2.0:1 Max.
2.0:1 Max.
2.0 Max.
+12
38 Max.
Maximum (No Damage) Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 15 Volts
Continuous RF Input Power ................................... + 6 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power ................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Revision 7/18/2013

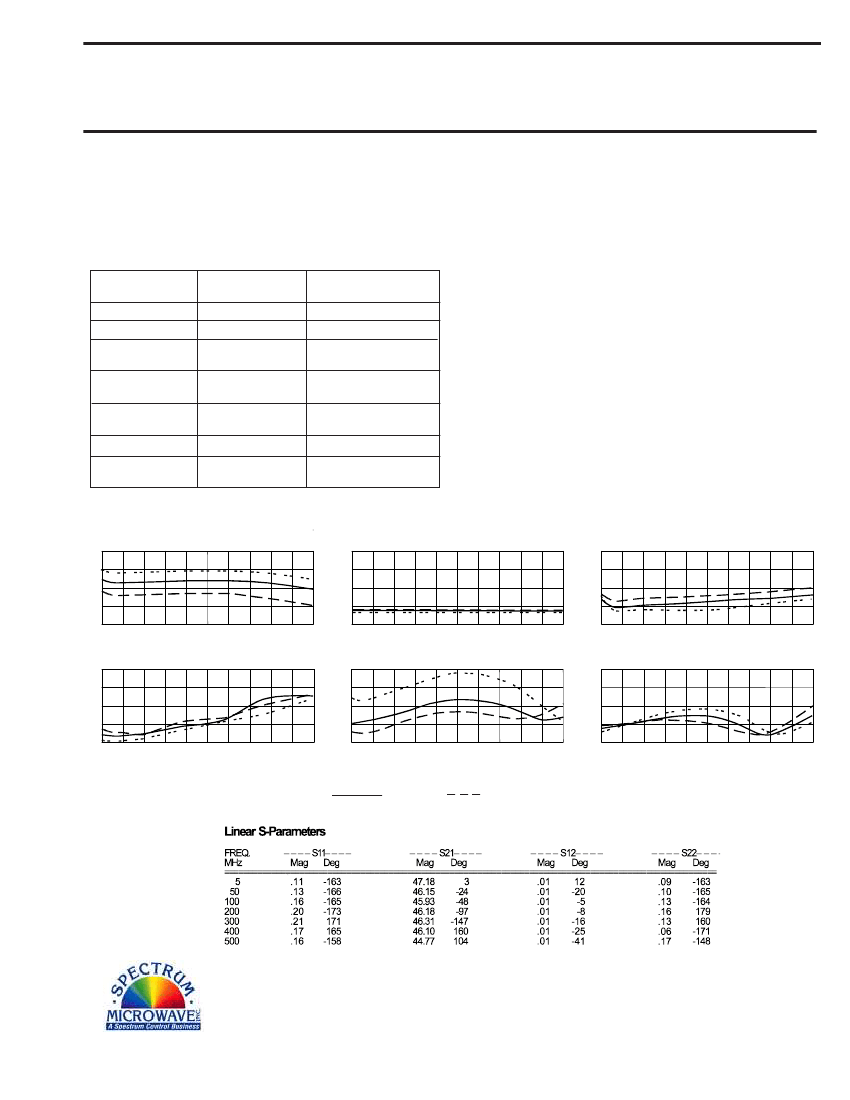

Typical Performance Data
- 10
- 20
- 30
- 40
- 50
1
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
35
34
33
32
31
Start 5 MHz
Gain (dB)
Reverse Isolation (dB)
3
2
Noise Figure (dB)
Stop 500 MHz
+12
+11
+10
+ 9
+ 8
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
