FP7222: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size75KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7222 Overview

RF AMPLIFIER MODEL

FP7222 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	27.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

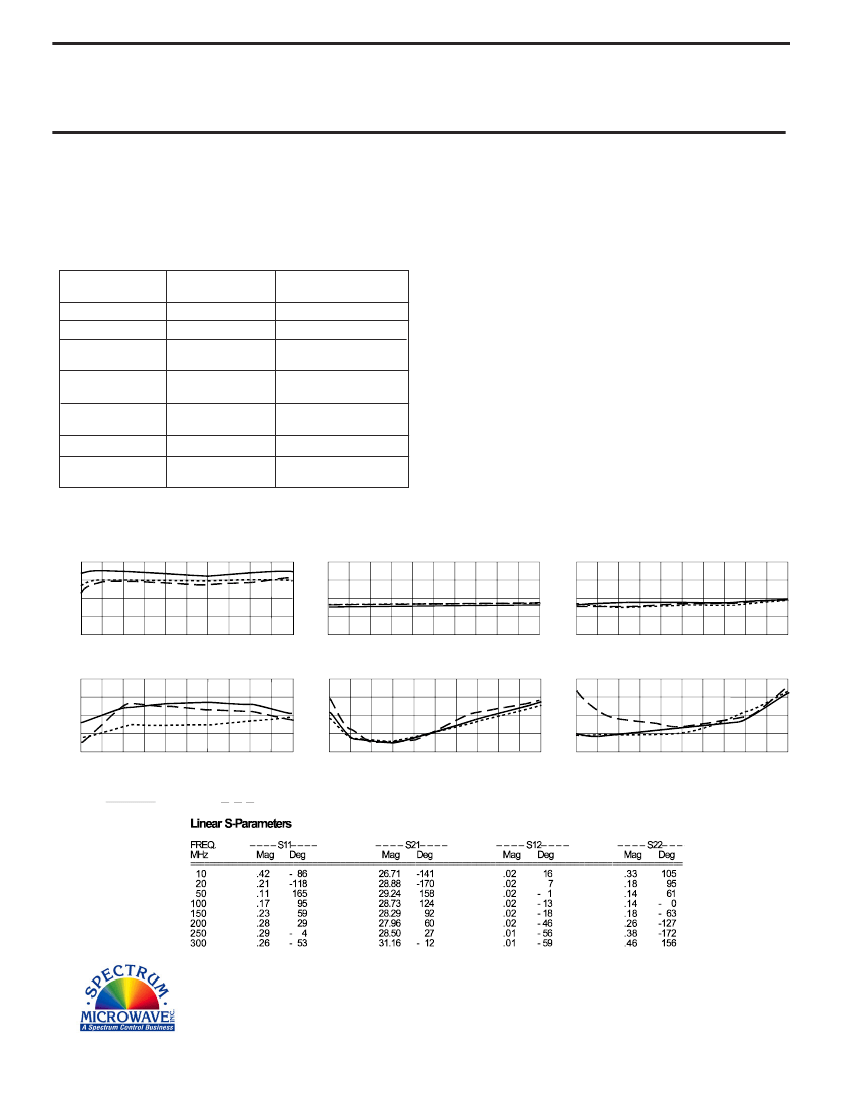

RF AMPLIFIER

MODEL

TM7222

Features

Low Noise Figure: 2.9 dB Typical

High Gain: 29 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7222, 4 Pin TO-8 (T4)

TN7222, 4 Pin Surface Mount (SM3)

FP7222, 4 Pin Flatpack (FP4)

BX7222, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point.........+44 dBm (Typ)

Second Order Two Tone Intercept Point..........+38 dBm (Typ)

Third Order Two Tone Intercept Point..............+32 dBm (Typ)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

20-250 MHz

+20.5

-34.5

1.75:1

2.9

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20-250 MHz

27.5 Min.

+18.0 Min.

-34 Max.

2.0:1 Max.

4.0 Max.

+15 Min.

52 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power.....50 Milliwatts ( 1 Minute Max.)

Maximum Peak Power................. 0.5 Watts ( 3

µsecMax.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 20 MHz

Stop 250 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Noise Figure (dB)

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

+22

+21

+20

+19

+18

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/05/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7222 Related Products

	FP7222	BX7222	TM7222	TN7222
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	27.5 dB	27.5 dB	27.5 dB	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-
Maximum operating frequency	250 MHz	250 MHz	250 MHz	-
Minimum operating frequency	20 MHz	20 MHz	20 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
