RF AMPLIFIER

MODEL

TM7272

Features

Gain: 14.7 dB Typical

Low VSWR: 1.15:1 Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7272, 4 Pin TO-8 (T4)

TN7272, 4 Pin Surface Mount (SM3)

FP7272, 4 Pin Flatpack (FP4)

BX7272,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +46 dBm (Typ.)

Second Order Two Tone Intercept Point........ +41 dBm (Typ.)

Third Order Two Tone Intercept Point............ +29 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-250 MHz

14.7

+14

-18.5

<1.15:1

3.0

MIN/MAX

Ta = -55 ºC to +85 ºC

10-200 MHz

14 Min./ 15.5 Max.

+12.0 Min.

-18 Max.

1.25:1 Max.

5.0 Max.

+5 Min.

38 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 10 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

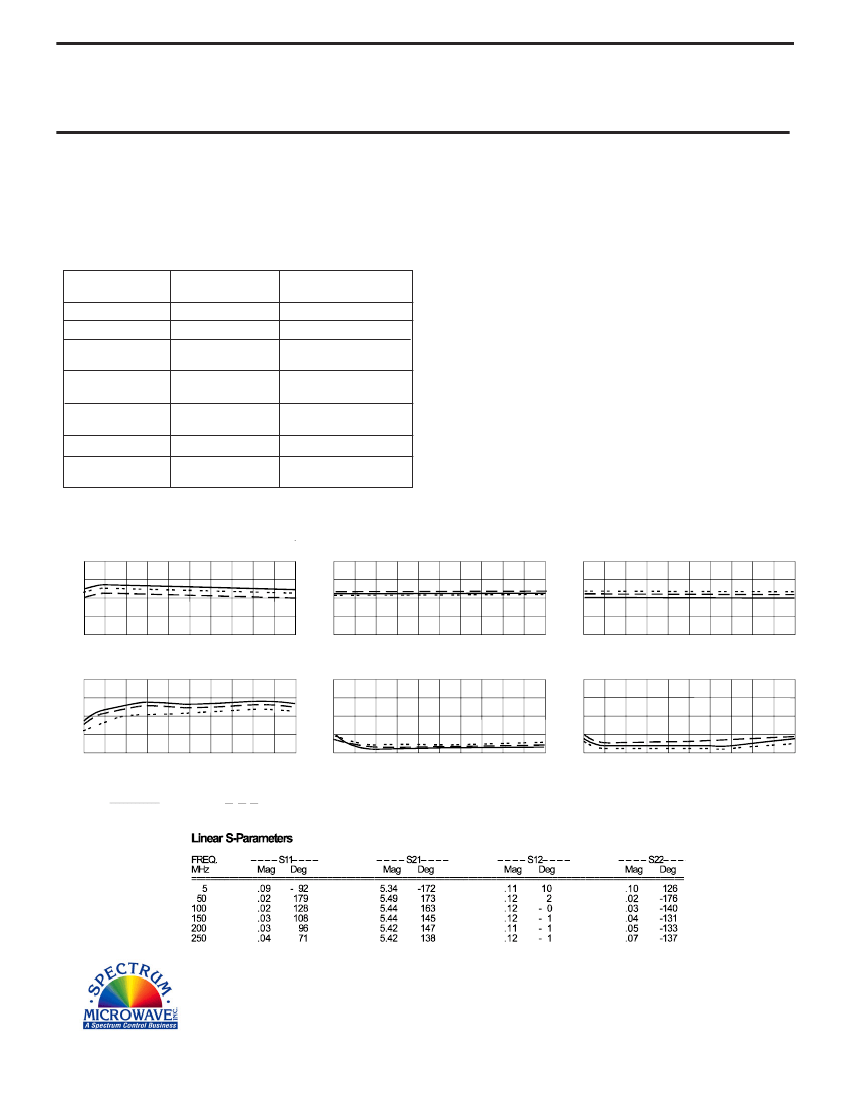

Typical Performance Data

Start 5 MHz

Stop 250 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 5 MHz

Stop 250 MHz

Start 5 MHz

Noise Figure (dB)

Stop 250 MHz

+16

+15

+14

+13

+12

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Stop 250 MHz

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 250 MHz

Start 5 MHz

Output VSWR

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
