FP7274: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7274 Overview

RF AMPLIFIER MODEL

FP7274 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	29 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

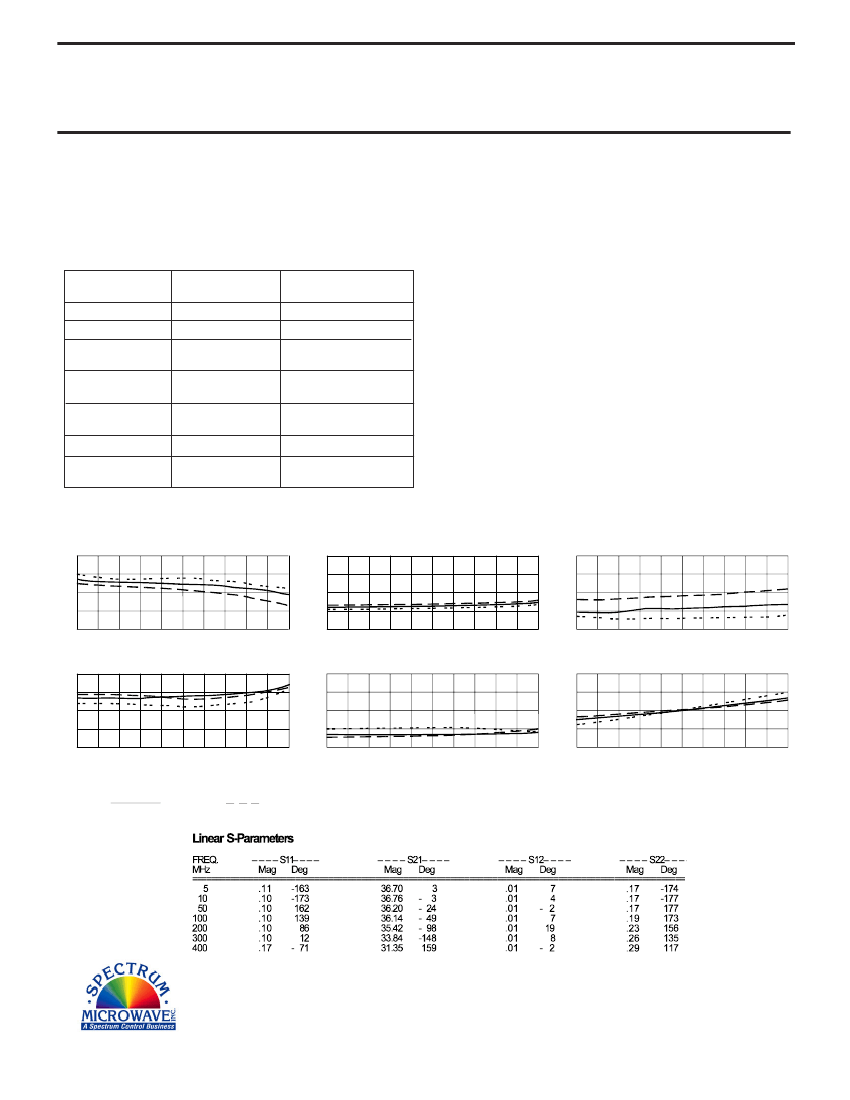

RF AMPLIFIER

MODEL

TM7274

Features

High Gain: 31 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7274, 4 Pin TO-8 (T4)

TN7274, 4 Pin Surface Mount (SM3)

FP7274, 4 Pin Flatpack (FP4)

BX7274,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+37 dBm (Typ.)

Second Order Two Tone Intercept Point.........+32 dBm (Typ.)

Third Order Two Tone Intercept Point.............+21 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-300 MHz

+9.5

-38

<1.5:

<1.75:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-300 MHz

29 Min.

+8.0 Min.

-36 Max.

2.0:1 Max.

4.0 Max.

+15 Min.

44 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................... + 6 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 300 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Noise Figure (dB)

Stop 300 MHz

+11

+10

+ 9

+ 8

+ 7

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

Start 5 MHz

Stop 300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
