FP7277PM Overview

RF AMPLIFIER MODEL

FP7277PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	9.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

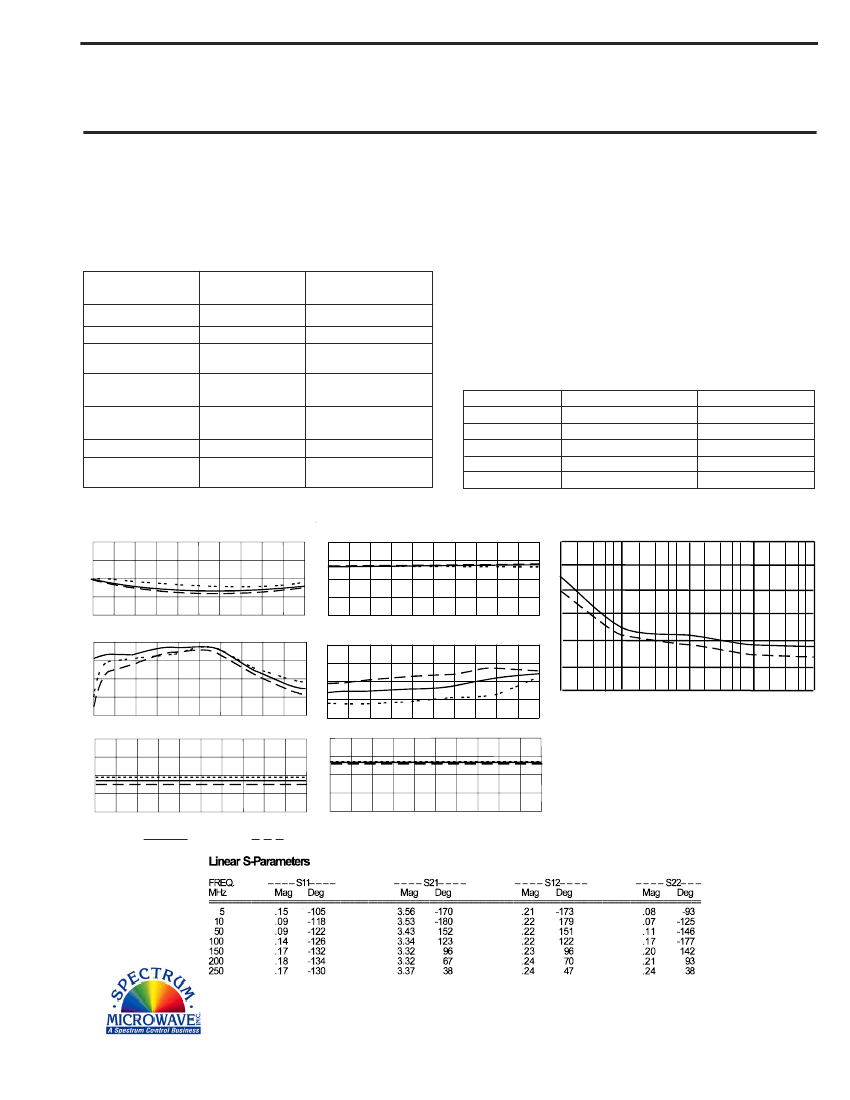

RF AMPLIFIER

MODEL

TM7277PM

Features

Superior Phase Noise Performance

High Output Power: +24 dBm Typical

High Third Order Intercept: +41 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7277PM, 4 Pin TO-8 (T4)

TN7277PM, 4 Pin Surface Mount (SM3)

FP7277PM, 4 Pin Flatpack (FP4)

BX7277PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +54 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +48 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +41 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +18 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation

(dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 250 MHz

10.5

+24.0

- 12.5

<1.50:1

<1.75:1

4.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 250 MHz

9.5

+20.0 Min.

- 11.5 Max.

2.0:1 Max.

5.0 Max.

+15

75 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-150

-168

-171

-175

-176

Guarantee (min.)

-145

-164

-168

-171

-172

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 250 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

-130

-140

-150

-160

Start 5 MHz

Stop 250 MHz

1 dB Comp. (dBm)

+25

+24

+23

+22

+21

Start 5 MHz

Stop 250 MHz

Noise Figure (dB)

-170

-180

-190

100

10k

100k

_________Guarantee __ __ __ __Typical

Start 5 MHz

2.0

1.5

1.0

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Output VSWR

Stop 250 MHz

Agilent ES5500 System

Residual Phase Noise Test Conditions:

Carrier Frequency: 250 MHz

Power Output +22.0 dBm

Temperature: 25

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
