FP7281PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7281PM

FP7281PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size75KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7281PM Overview

RF AMPLIFIER MODEL

FP7281PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	23 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

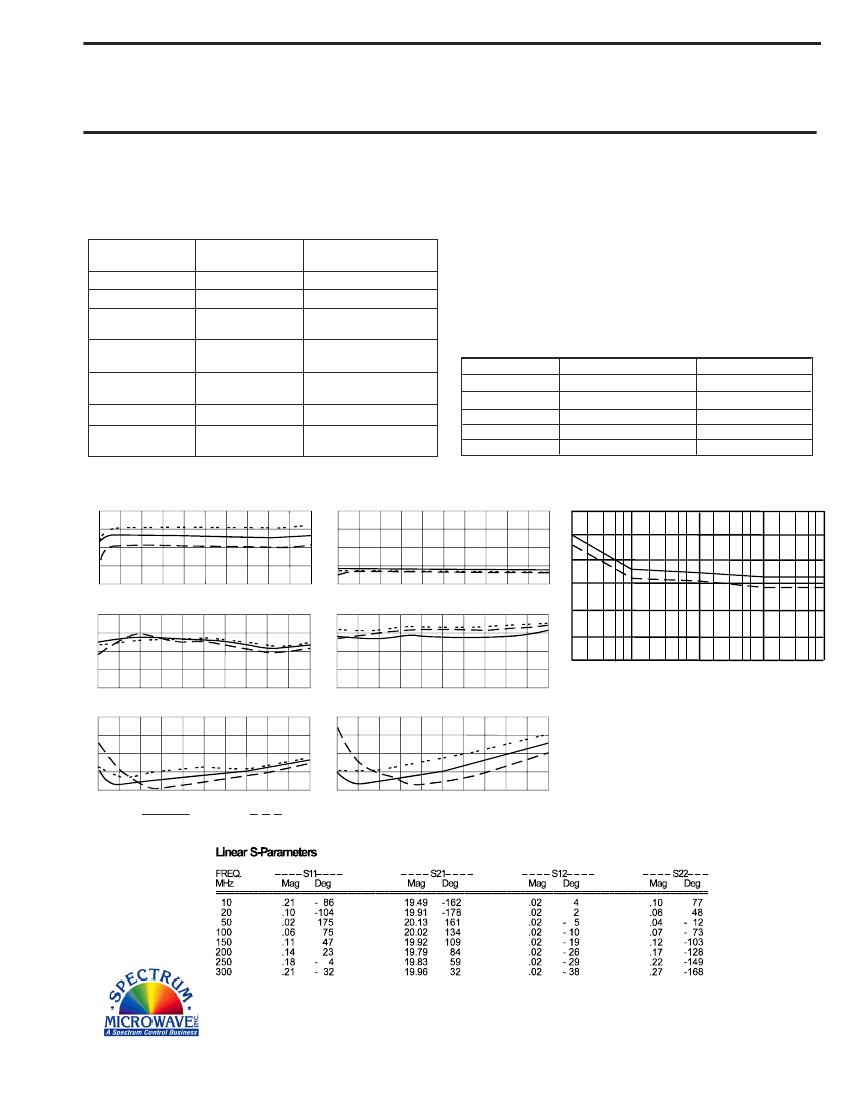

RF AMPLIFIER

MODEL

TM7281PM

Features

Superior Phase Noise Performance

High Gain: 25.5 dB Typical

Low Noise Figure: 2.4 dB Typical

Operating Temp. -55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

10 - 300 MHz

25.5

+17.5

-32

<1.5:1

<1.75:1

2.4

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 250 MHz

23.0 Min.

+15.5 Min.

-30 Max.

2.0:1 Max.

3.3 Max.

+15

33 Max.

Available as:

TM7281PM, 4 Pin TO-8 (T4)

TN7281PM, 4 Pin Surface Mount (SM3)

FP7281PM, 4 Pin Flatpack (FP4)

BX7281PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +40 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +35 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +31 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +10 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-145

-158

-159

-161

Guarantee (Min.)

-141

-154

-155

-157

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

+19

+18

+17

+16

+15

Start

2.0

1.5

1.0

Start

20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

-10

-20

-30

-40

Start

2.0

1.5

1.0

Start

Reverse Isolation (dB)

-130

-140

-150

-160

20 MHz

Stop 250 MHz

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Noise Figure (dB)

-170

-180

-190

100

10k

100k

_________Guarantee __ __ __ __Typical

Start 20 MHz

Stop 250 MHz

Input VSWR

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency: 200 MHz

Power Output: +17.5 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 250 MHz

20 MHz

Stop 250 MHz

20 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7281PM Related Products

	FP7281PM	BX7281PM	TM7281PM	TN7281PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compliant	compli	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM	LOW NOISE, I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	23 dB	23 dB	23 dB	23 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
