FP7291 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7291

FP7291: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7291 Overview

RF AMPLIFIER MODEL

FP7291 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	22.7 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

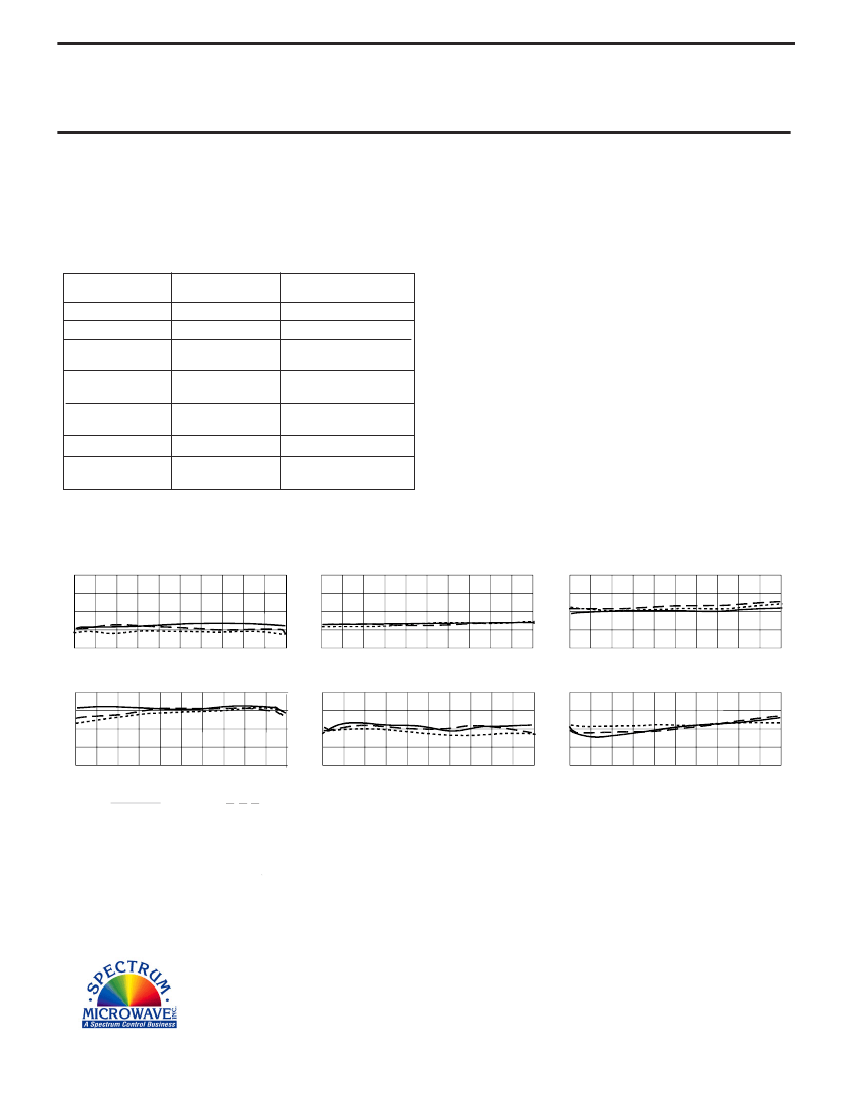

RF AMPLIFIER

MODEL

TM7291

Features

High Output Power: +19.0 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Low Noise Figure: 3.0 dB Typical

Environmental Screening Available

Available as:

TM7291, 4 Pin TO-8 (T4)

TN7291, 4 Pin Surface Mount (SM3)

FP7291, 4 Pin Flatpack (FP4)

BX7291, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +45 dBm (Typ.)

Second Order Two Tone Intercept Point........ +40 dBm (Typ.)

Third Order Two Tone Intercept Point............ +31 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5 - 350 MHz

24.0

+19.0

- 28

<1.5:1

<1.4:1

3.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 250 MHz

22.7 Min.

+17.5 Min. *

- 25 Max.

2.0:1 Max.

1.8:1 Max.

4.0 Max.

+15 Min.

32 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

* .5 dB less below 20 MHz.

Typical Performance Data

Gain (dB)

Start 5 MHz

Stop 350 MHz

Reverse Isolation (dB)

-10

-20

-30

-40

Start 5 MHz

Stop 350 MHz

Noise Figure (dB)

Start 5 MHz

Stop 350 MHz

1 dB Comp. (dBm)

Start 5 MHz

Stop 350 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 350 MHz

Output VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 350 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

10/15/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7291 Related Products

	FP7291	BX7291	TM7291	TN7291
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	22.7 dB	22.7 dB	22.7 dB	22.7 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	250 MHz	250 MHz	250 MHz	250 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.8	1.8	1.8	1.8

Recommended Resources

Dual-frequency oscillation circuit diagram composed of audio decoder

Four-channel remote control switch receiver circuit

HT-815A0 circuit

Contactless AC voltage regulator circuit diagram

Refrigerator power-off protector power-saving device circuit

400HZ drive circuit diagram
