RF AMPLIFIER
MODEL
TM7310PM
Features
Superior Phase Noise Performance
Low Noise Figure: 1.8 dB Typical
High Output Power: +20 dBm Typical
Operating Temp. -55 ºC to +85 ºC
Available as:
TM7310PM, 4 Pin TO-8 (T4)
TN7310PM, 4 Pin Surface Mount (SM3)
FP7310PM, 4 Pin Flatpack (FP4)
BX7310PM, Connectorized Housing (H1)
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature.................-55ºC to +100 ºC
Storage Temperature.................................-62ºC to +125 ºC
Case Temperature..................................................+125 ºC
DC Voltage..........................................................+13 Volts
Continuous RF Input Power...................................+15 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power.................... 0.5 Watt (3
µsec
Max.)
Thermal Resistance (Theta J C) ....................... 81 ºC/Watt
Junction Temperature Rise Above the Case Temp........+24ºC
Maximum Operating Junction Temperature...............+109ºC
Maximum Junction Temperature of Die.....................+205ºC
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise Figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25 ºC
10 - 200 MHz
8.5
+20
-12
<1.75:1
<1.35:1
1.8
+10
38
MIN/MAX
Ta = -55 ºC to +85 ºC
30 - 200 MHz
7.5 Min.
+19 Min.
-11 Max.
2.0:1 Max.
2.0:1 Max.
3.0 Max.
+10
40 Max.
MTBF Calculation for Ground Benign Environment
@
25 ºC
.................................................4,067,101.04 hrs
Guaranteed Phase Noise Performance
(dBc/Hz)
Frequency
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
Typical
-172
-178
-180
-181
-179
Guarantee (Min.)
-168
-174
-176
-177
-175
Note: Care should always be taken to effectively ground the case of each unit.
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ....... +61 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +55 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)
Gain (dB)

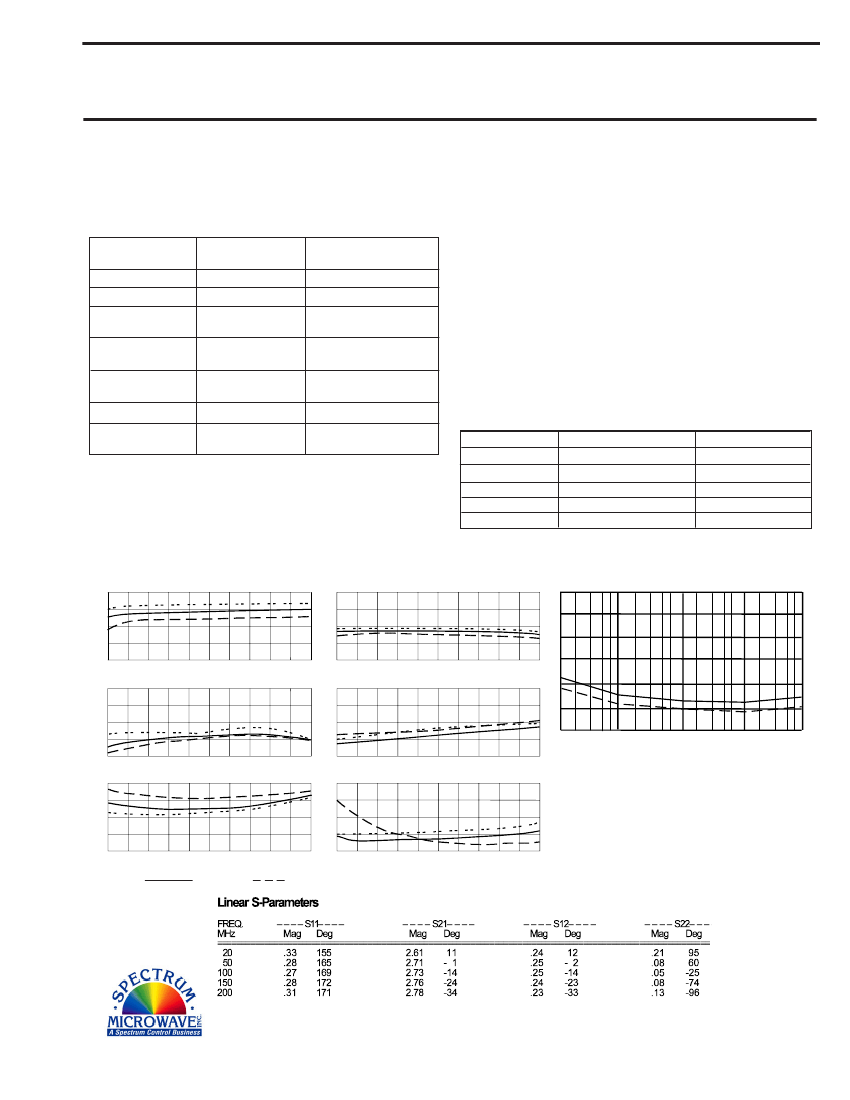

Typical Performance Data
10
9
8
7
6
+23
+22
+21
+20
+19
2.0
1.5
1.0
1
Start 30 MHz
Start 30 MHz
0
-5
-10
-15
-20
3
2
Reverse Isolation (dB)
-130
-140
-150
-160
Phase Noise (dBc/Hz)
1 dB Comp. (dBm)
Stop 200 MHz
Start 30 MHz
Noise Figure (dB)
Stop 200 MHz
-170
-180
-190
100
1K
10K
100K
1M
_________Guarantee __ __ __ __Typical
Start 30 MHz
Input VSWR
Stop 200 MHz
2.0
1.5
1.0
Output VSWR
Stop 200 MHz
Phase Noise Test Conditions:
Carrier Frequency: 100 MHz
Power Output: +20 dBm
Temperature: 25 ºC
Agilent ES5500 System
Start 30 MHz
Stop 200 MHz
Start 30 MHz
Stop 200 MHz
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
6/11/10
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
