FP7381 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP7381

FP7381: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size62KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7381 Overview

RF AMPLIFIER MODEL

FP7381 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	MODULE,4LEAD,.51
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	23 dB
Maximum input power (CW)	10 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	250 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.51
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	21 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7381

Features

High Gain: 24.5 dB Typical

Low Noise Figure: 2.2 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7381, 4 Pin TO-8 (T4)

TN7381, 4 Pin Surface Mount (SM3)

FP7381, 4 Pin Flatpack (FP4)

BX7381,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +37 dBm (Typ.)

Second Order Two Tone Intercept Point........ +32 dBm (Typ.)

Third Order Two Tone Intercept Point............ +27 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

10-300 MHz

24.5

+14.5

-31

1.35:1

1.5:1

2.2

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20-250 MHz

23.0 Min.

+12.5 Min.

-30 Max.

2.0:1 Max.

3.0 Max.

+15 Min.

21 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

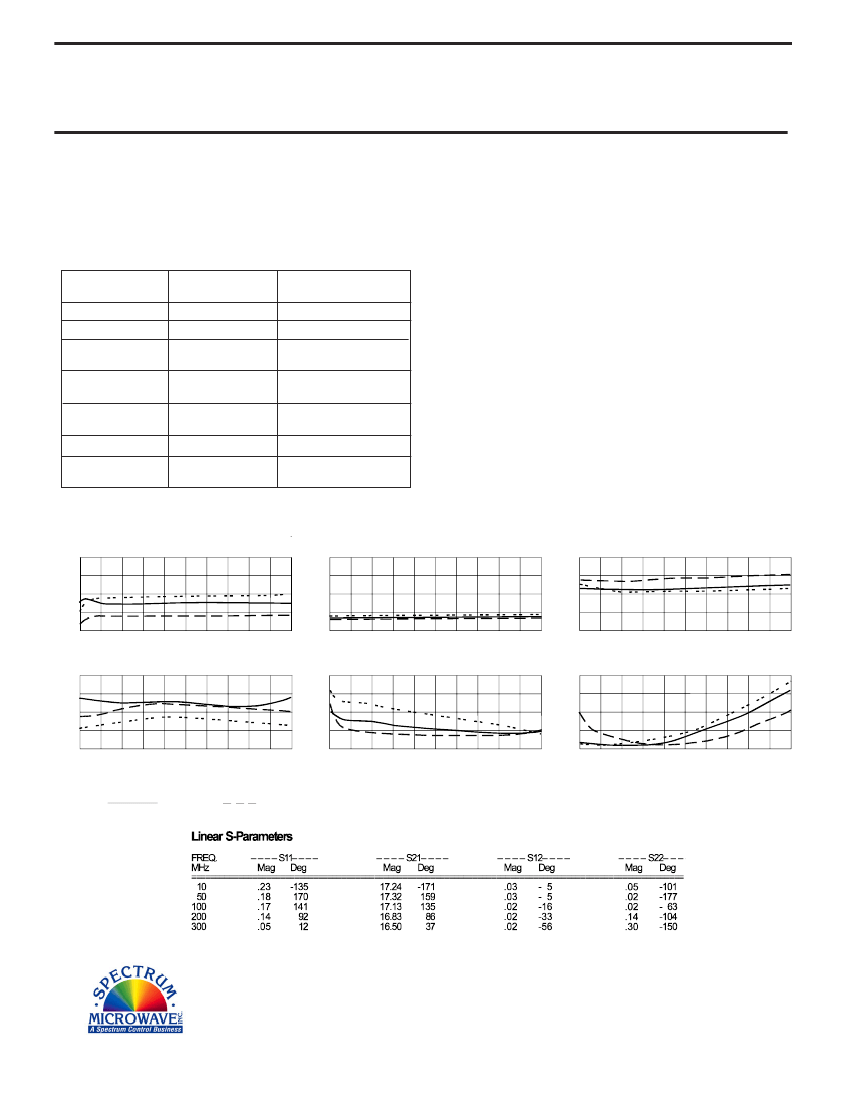

Typical Performance Data

Start 20 MHz

Stop 250 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

+16

+15

+14

+13

+12

Start 20 MHz

1 dB Comp (dBm)

2.0

1.5

1.0

Stop 250 MHz

Start 20 MHz

Input VSWR

2.0

1.5

1.0

Stop 250 MHz

Start 20 MHz

Output VSWR

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

7/6/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7381 Related Products

	FP7381	BX7381	TM7381	TN7381
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
package instruction	MODULE,4LEAD,.51	H1, TO-8	CAN4,.3	-
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	23 dB	23 dB	23 dB	-
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	-
Maximum operating frequency	250 MHz	250 MHz	250 MHz	-
Minimum operating frequency	20 MHz	20 MHz	20 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
