FP7712 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > FP7712

Preview

FP7712: DescriptionRF AMPLIFIER MODEL; File Size64KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

FP7712 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7712

Features



High Output Power: +24 dBm Typical

High Third Order Intercept: +41 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM7712, 4 Pin TO-8 (T4)

TN7712, 4 Pin Surface Mount (SM3)

FP7712, 4 Pin Flatpack (FP4)

BX7712, Connectrized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +54 dBm (Typ.)

Second Order Two Tone Intercept Point........ +48 dBm (Typ.)

Third Order Two Tone Intercept Point............ +41 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-250 MHz

10.5

+24

-12.5

<1.5:1

<1.75:1

4.0

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

5-250 MHz

9.5 Min.

+20.0 Min.

-11.5 Max.

2.0:1 Max.

5.0 Max.

+12 Min.

75 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 15 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.....................0.5 Watt (3

μsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Revision 5/18/2012

Noise Figure (dB)

Power

Vdc

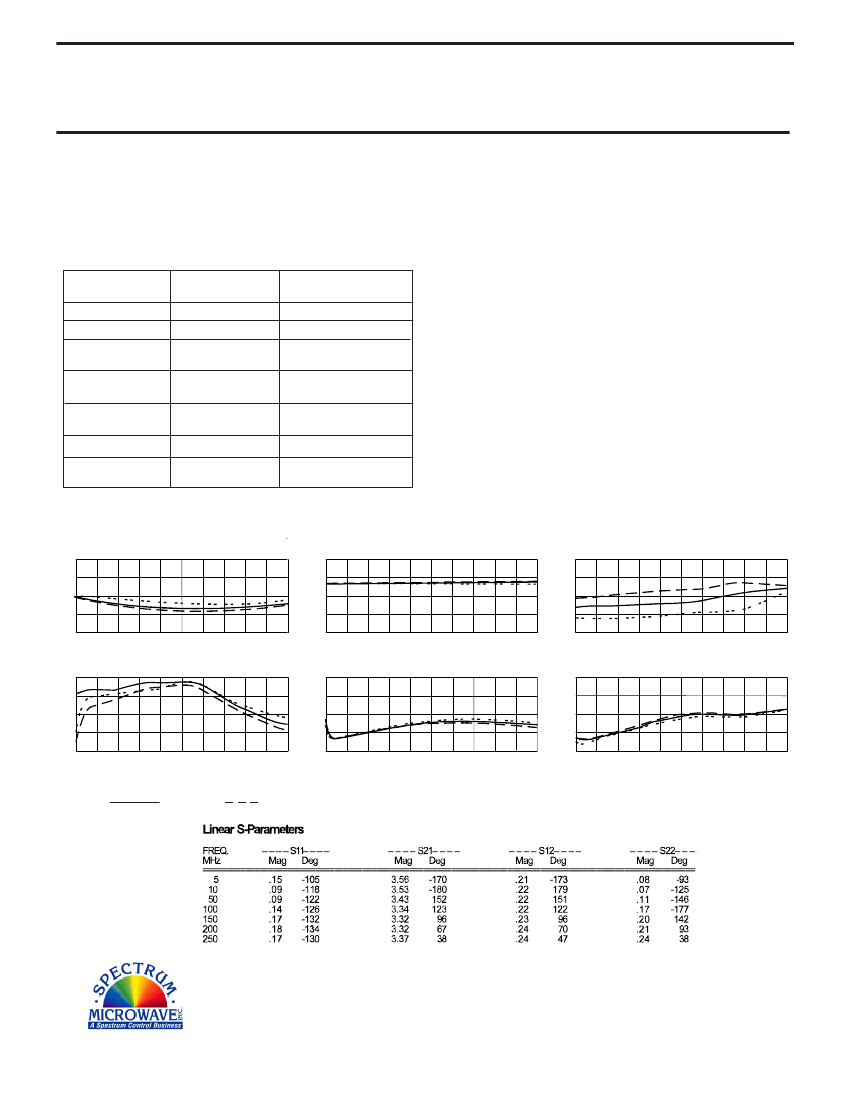

Typical Performance Data

Start 5 MHz

Stop 250 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

+25

+24

+23

+22

+21

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Stop 250 MHz

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 250 MHz

Start 5 MHz

Output VSWR

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
