FP9106 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9106

Preview

FP9106: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9106 Overview

RF AMPLIFIER MODEL

FP9106 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

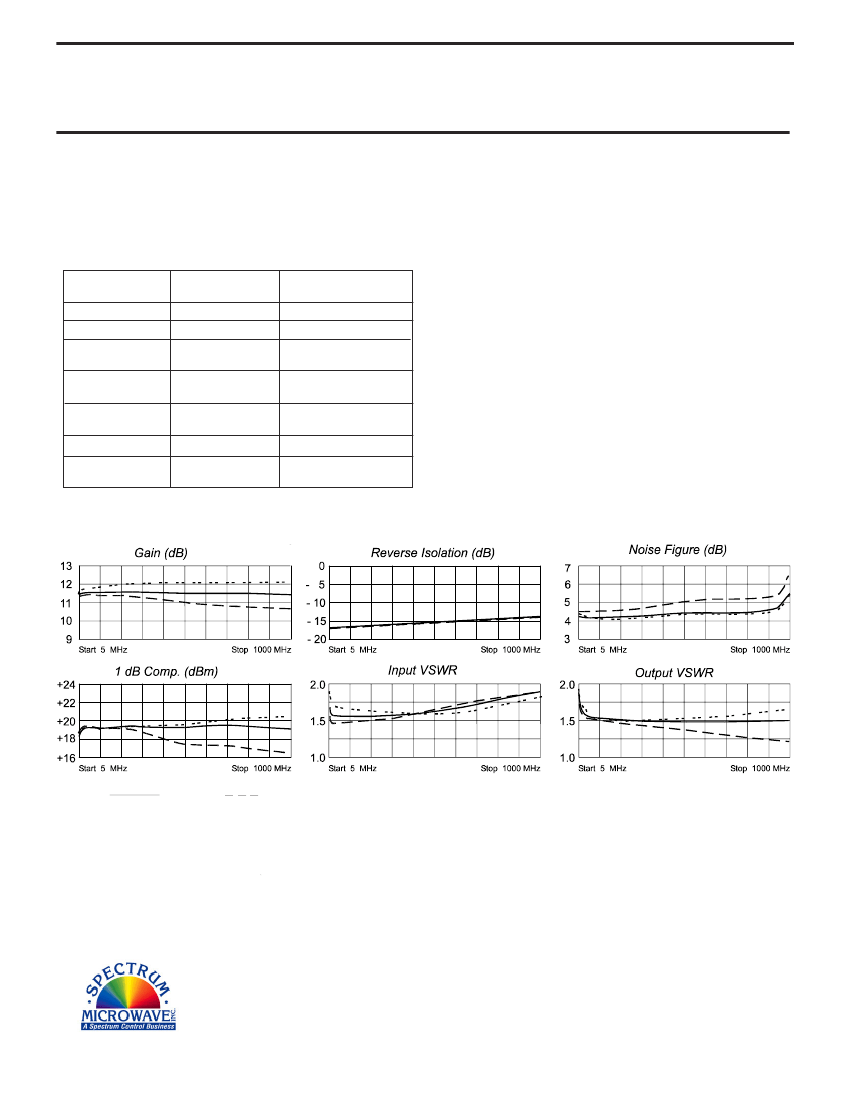

RF AMPLIFIER

MODEL

TM9106

Features

!

High Output Power: +19 dBm Typical

Medium Gain: +12 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9106, 4 Pin TO-8 (T4)

TN9106, 4 Pin Surface Mount (SM3)

FP9106, 4 Pin Flatpack (FP4)

BX9106,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+38 dBm (Typ.)

Second Order Two Tone Intercept Point.........+32 dBm (Typ.)

Third Order Two Tone Intercept Point.............+27 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

TYPICAL

Ta= 25 ºC

5 - 1000 MHz

12

+19

-14.5

<1.75:1

<1.5:1

4.8

+15

70

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 1000 MHz

10.5 Min.

+16 Min.

-13.5 Max.

2.0:1 Max.

6.0 Max.

+15

75 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Noise Figure* (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

*Noise Figure is 1 dB higher above 900 MHz.

Typical Performance Data

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – –

– – – – S22– – – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

5

.27

-133

3.82

-164

.14

16

153

.30

10

.23

-156

3.88

-173

.15

8

163

.24

50

.22

-177

3.93

176

.15

2

168

.22

100

.23

179

3.93

168

.15

1

165

.22

200

.22

174

3.92

156

.15

1

153

.21

400

.23

167

3.91

131

.16

0

131

.20

600

.25

160

3.90

105

.17

-2

110

.20

800

.28

149

3.81

79

.18

-5

90

.19

1000

.32

133

3.69

52

.20

-9

72

.19

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

12/19/07

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9106 Related Products

	FP9106	BX9106	TM9106	TN9106
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	10.5 dB	10.5 dB	10.5 dB	10.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	-	API Technologies	API Technologies	API Technologies
