SUM40N02-09P-E3

Description
TRANSISTOR 40 A, 20 V, 0.0095 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB, LEAD FREE, TO-263, 3 PIN, FET General Purpose Power
CategoryDiscrete semiconductor    The transistor
File Size69KB，6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

SUM40N02-09P-E3 Overview

TRANSISTOR 40 A, 20 V, 0.0095 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB, LEAD FREE, TO-263, 3 PIN, FET General Purpose Power

SUM40N02-09P-E3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Parts packaging codeD2PAK
package instructionSMALL OUTLINE, R-PSSO-G2
Contacts4
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage20 V
Maximum drain current (Abs) (ID)40 A
Maximum drain current (ID)40 A
Maximum drain-source on-resistance0.0095 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-263AB
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)93 W
Maximum pulsed drain current (IDM)100 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Transistor component materialsSILICON

SUM40N02-09P-E3 Preview

SUM40N02-09P
Vishay Siliconix
N-Channel 20-V (D-S) 175_C MOSFET
FEATURES
PRODUCT SUMMARY
V
(BR)DSS
(V)
20
r
DS(on)
(W)
0.0095 @ V
GS
= 10 V
0.017 @ V
GS
= 4.5 V
I
D
(A)
a
40
a
40
a
D
TrenchFETr Power MOSFET
D
175_C Junction Temperature
D
100% R
g
Tested
APPLICATIONS
D
Desktop or Server CPU Core
D
Game Station
D
TO-263
G
DRAIN connected to TAB
G
D S
S
Ordering Information: SUM40N02-09P
SUM40N02-09P-E3 (Lead Free)
N-Channel MOSFET
Top View
ABSOLUTE MAXIMUM RATINGS (T
A
= 25_C UNLESS OTHERWISE NOTED)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (T
J
= 175_C)
Pulsed Drain Current
Maximum Power Dissipation
b
Operating Junction and Storage Temperature Range
T
C
= 25_C
T
A
= 25_C
d
T
C
= 25_C
T
C
= 100_C
Symbol
V
DS
V
GS
I
D
I
DM
P
D
T
J
, T
stg
Limit
20
"20
40
a
40
a
100
93
c
3.75
−55
to 175
Unit
V
A
W
_C
THERMAL RESISTANCE RATINGS
Parameter
Junction-to-Ambient (PCB Mount)
d
Junction-to-Case
Notes
a. Package limited.
b. Duty cycle
v
1%.
c. See SOA curve for voltage derating.
d. When mounted on 1” square PCB (FR-4 material).
Document Number: 72110
S-32523—Rev. C, 08-Dec-03
www.vishay.com
Symbol
R
thJA
R
thJC
Limit
40
1.6
Unit
_C/W
1
SUM40N02-09P
Vishay Siliconix
SPECIFICATIONS (T
J
=25_C UNLESS OTHERWISE NOTED)
Parameter
Static
Drain-Source Breakdown Voltage
Gate-Threshold Voltage
Gate-Body Leakage
V
(BR)DSS
V
GS(th)
I
GSS
V
DS
= 0 V, I
D
= 250
mA
V
DS
= V
GS
, I
D
= 250
mA
V
DS
= 0 V, V
GS
=
"20
V
V
DS
= 20 V, V
GS
= 0 V
Zero Gate Voltage Drain Current
g
On-State Drain Current
a
I
DSS
I
D(on)
V
DS
= 20 V, V
GS
= 0 V, T
J
= 125_C
V
DS
= 20 V, V
GS
= 0 V, T
J
= 175_C
V
DS
w
5 V, V
GS
= 10 V
V
GS
= 10 V, I
D
= 20 A
Drain-Source On-State
Drain Source On State Resistance
a
r
DS(on)
V
GS
= 10 V, I
D
= 20 A, T
J
= 125_C
V
GS
= 10 V, I
D
= 20 A, T
J
= 175_C
V
GS
= 4.5 V, I
D
= 20 A
Forward Transconductance
a
g
fs
V
DS
= 10 V, I
D
= 20 A
15
0.0135
100
0.008
0.0095
0.014
0.016
0.017
S
W
20
0.85
3
"100
1
50
250
A
m
mA
V
nA
Symbol
Test Condition
Min
Typ
Max
Unit
Dynamic
b
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
b
Gate-Source Charge
b
Gate-Drain Charge
b
Gate Resistance
Turn-On Delay Time
b
Rise Time
b
Turn-Off Delay Time
b
Fall Time
b
C
iss
C
oss
C
rss
Q
g
Q
gs
Q
gd
R
g
t
d(on)
t
r
t
d(off)
t
f
V
DD
= 10 V, R
L
= 0.25
W
I
D
^
40 A, V
GEN
= 10 V, R
g
= 2.5
W
2
V
DS
= 10 V, V
GS
= 4.5 V, I
D
= 40 A
,
,
V
GS
= 0 V, V
DS
= 10 V, f = 1 MHz
1300
470
275
10.5
4.2
4.0
4.0
8
10
25
12
6.8
12
15
40
20
ns
W
16
nC
pF
Source-Drain Diode Ratings and Characteristics (T
C
= 25_C)
c
Continuous Current
Pulsed Current
Forward Voltage
a
Reverse Recovery Time
Peak Reverse Recovery Current
Reverse Recovery Charge
I
S
I
SM
V
SD
t
rr
I
RM
Q
rr
I
F
= 40 A, di/dt = 100 A/ms
m
I
F
= 40 A, V
GS
= 0 V
1.1
25
0.7
0.009
40
100
1.5
40
1.1
0.022
A
V
ns
A
mC
Notes
a. Pulse test; pulse width
v
300
ms,
duty cycle
v
2%.
b. Independent of operating temperature.
c. Guaranteed by design, not subject to production testing.
www.vishay.com
2
Document Number: 72110
S-32523—Rev. C, 08-Dec-03
SUM40N02-09P
Vishay Siliconix

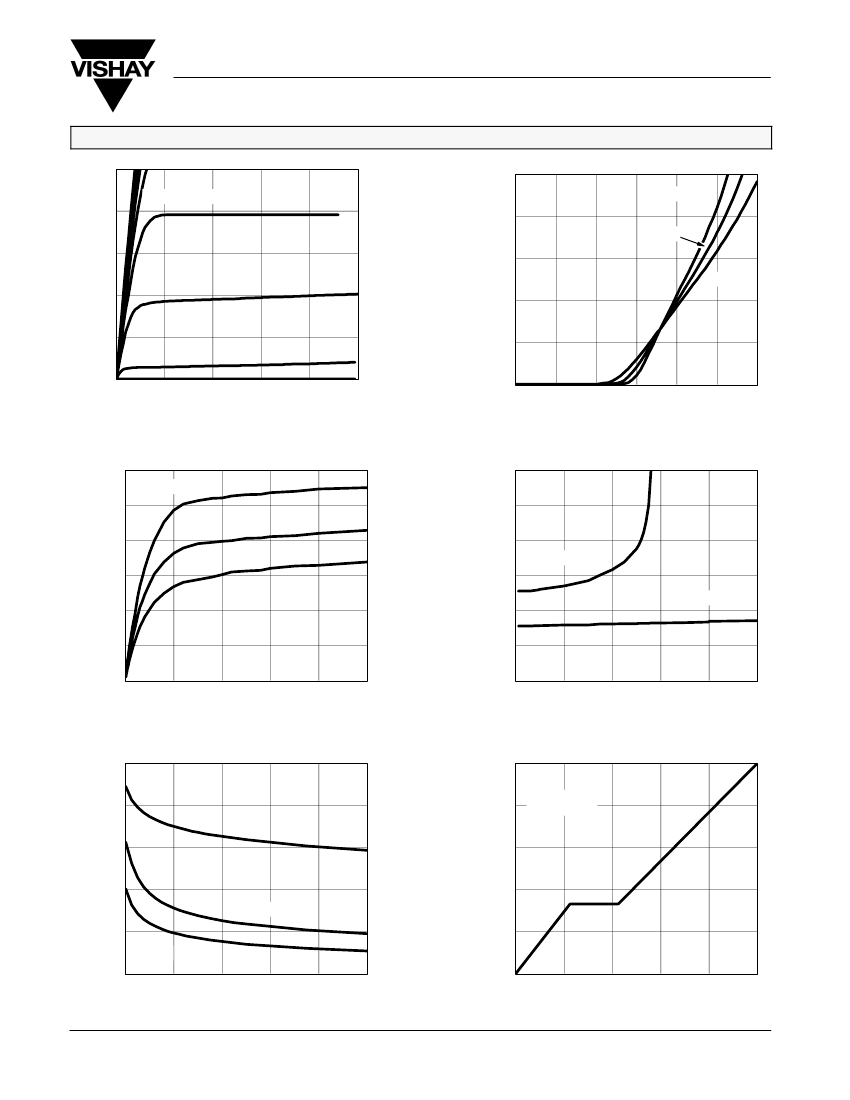

TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
100
Output Characteristics
100
V
GS
= 10 thru 6 V
5V
80
I
D
−
Drain Current (A)
Transfer Characteristics
T
C
=
−55_C
80
I
D
−
Drain Current (A)
25_C
60
125_C
40
60
4V
40
20
3V
20
0
0
2
4
6
8
10
0
0
1
2
3
4
5
6
V
GS
−
Gate-to-Source Voltage (V)
V
DS
−
Drain-to-Source Voltage (V)
Transconductance
60
T
C
=
−55_C
r
DS(on)
−
On-Resistance (
W
)
50
g
fs
−
Transconductance (S)
40
30
20
10
0
0
10
20
30
40
50
25_C
125_C
0.025
0.020
0.030
On-Resistance vs. Drain Current
V
GS
= 4.5 V
0.015
0.010
0.005
0.000
0
20
40
60
80
100
V
GS
= 10 V
I
D
−
Drain Current (A)
I
D
−
Drain Current (A)
2000
Capacitance
10
V
DS
= 10 V
I
D
= 40 A
Gate Charge
1600
C
−
Capacitance (pF)
C
iss
1200
V
GS
−
Gate-to-Source Voltage (V)
8
6
800
C
oss
400
C
rss
0
0
4
8
12
16
20
V
DS
−
Drain-to-Source Voltage (V)
4
2
0
0
4
8
12
16
20
Q
g
−
Total Gate Charge (nC)
www.vishay.com
Document Number: 72110
S-32523—Rev. C, 08-Dec-03
3
SUM40N02-09P
Vishay Siliconix
TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
1.6
On-Resistance vs. Junction Temperature
V
GS
= 10 V
I
D
= 20 A
100
Source-Drain Diode Forward Voltage
r
DS(on)
−
On-Resistance (
W)
(Normalized)
I
S
−
Source Current (A)
1.4
T
J
= 150_C
10
T
J
= 25_C
1.2
1.0
0.8
−50
−25
0
25
50
75
100
125
150
175
1
0
0.3
0.6
0.9
1.2
T
J
−
Junction Temperature (_C)
V
SD
−
Source-to-Drain Voltage (V)
30
Drain Source Breakdown vs.
Junction Temperature
28
V
(BR)DSS
(V)
I
D
= 250
mA
26
24
22
20
−50
−25
0
25
50
75
100
125
150
175
T
J
−
Junction Temperature (_C)
www.vishay.com
4
Document Number: 72110
S-32523—Rev. C, 08-Dec-03
SUM40N02-09P
Vishay Siliconix
THERMAL RATINGS
Maximum Avalanche and Drain Current
vs. Case Temperature
50
1000
Limited
by r
DS(on)
10, 100
ms
Safe Operating Area
40
I
D
−
Drain Current (A)
I
D
−
Drain Current (A)
100
30
10
1 ms
10 ms
dc, 100 ms
20
10
1
T
C
= 25_C
Single Pulse
0
0
25
50
75
100
125
150
175
T
C
−
Ambient Temperature (_C)
0.1
0.1
1
10
100
V
DS
−
Drain-to-Source Voltage (V)
2
1
Normalized Effective Transient
Thermal Impedance
Duty Cycle = 0.5
0.2
0.1
0.1
0.02
Single Pulse
0.05
Normalized Thermal Transient Impedance, Junction-to-Case
0.01
10
−4
10
−3
10
−2
10
−1
1
10
Square Wave Pulse Duration (sec)
Document Number: 72110
S-32523—Rev. C, 08-Dec-03
www.vishay.com
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Three-terminal PWM switching power supply-PWR-TOP200 series and applications 01

AFSK keyer

Sequential switching of load circuits

555 photoelectric gun circuit with added burst function

555 spot welding machine timing controller circuit

Diode AND gate decoding circuit (2)

The sad math of Atmega16A
In the Atmega16A microcontroller program (using cvavr programming), the given parameter i_Fade_time_temp = 7 is used to calculate the corresponding calculated value i_count. The calculation formula is...
ltwsq Microchip MCU
I would like to ask about the communication between two GPRS MODEMs.
Two GPRS modems are successfully dialed up in two PCs (under Linux operating system), and both get the PPP0 interface. The IPs obtained by the two PCs through PPP dialing are: 10.143.164.83 and 10.143...
yewuyi Embedded System
What is the difference between the Digital Cardiopulmonary Walk Test (DCW) and the Cardiopulmonary Exercise Test (CPX)?
Cardiac rehabilitation is the sum of various activities that patients need to carry out to ensure that they can achieve the best possible physical, mental and social conditions. The purpose of cardiac...
smartsens_2017 Medical Electronics
The synchronous rectifier buck circuit ended up boosting the voltage? I think something went wrong.
[i=s] This post was last edited by 零下12度半 on 2016-1-22 09:41[/i] We made this circuit. Logically, we input from the left, so it's a BUCK topology, but it's boosted. I can't figure it out. Please check...
零下12度半 Power technology
I would like to ask the experts: The function ReadImageFromNand in the 2440 startup code is a bit difficult to read. Can you help analyze it?
The specific function is as follows: TOC toc; // made global because it's too big for our tiny stack DWORD ReadImageFromNand(DWORD dwEntry, DWORD dwSig) { DWORD dwSectorsNeeded; DWORD dwSector, dwLeng...
zhoujilu02 Embedded System
The structure principle and production of buzzer
[size=4](I) Introduction to Buzzers[/size] [size=4] [/size] [size=4] [/size] [size=4] [/size] [size=4] 1. Function of Buzzer: Buzzer is an electronic sounder with an integrated structure, powered by a...
fish001 Analogue and Mixed Signal
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. ACCQ20LTEB160K/181M
  2. Y0024657R000Q1L
  3. 8LT5L17F08SA
  4. MC2010P-8452-FT101
  5. PTN1206K3320BST0
  6. 0603YC106J4Z4A
  7. MF1/2CCM12.5A1383D
  8. RPC0603DT7K32
  9. D2541HA-17P-WH
  10. A2541WV-12P-C1085D216-G30
  11. HQ1005C5N1ST
  12. TC212B476K006A

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Videos 46: Triggering the Wiegand Protocol
  2. German companies build chip factories to pursue technological independence
  3. Intel plans to invest 80 billion euros in Europe to expand production in order to expand its automotive chip business
  4. Analysts expect Apple to produce 90 million iPhones in the fourth quarter and 66 million in the first quarter of next year
  5. Reducing Electric Vehicle Costs and Increasing Range by Integrating Powertrain Systems
  6. What is an oscilloscope? Oscilloscope application explanation
  7. Why do fuel vehicles save fuel while electric vehicles consume electricity on highways?
  8. 2. Analysis of 2440 Bare Metal Interrupt Principle
  9. Details to pay attention to when using a vector network analyzer
  10. Common Mode Semiconductor Launches Ultra-Low Noise, Ultra-High PSRR Linear Regulated Power Supply GM1205

Technical ResourceMore

  1. Analysis of small signal model of closed-loop flyback switching power supply
  2. Relationship between DC side APF main circuit parameters and compensation performance
  3. 5G test network and scale construction experience sharing-Hubei
  4. Detailed explanation of automobile air conditioning system
  5. Radio Magazine, Issue 11, 1998.pdf
  6. Power Amplifier IC Data
  7. Open source Verilog simulation tool: Icarus
  8. SDC Analysis and Setup
  9. Integrated Circuit Process Basics and Layout Design
  10. Huawei C language programming specifications

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1781  2173  2721  2740  1803  36  44  55  56  37
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
