ABM4B-FREQ-S-R060-E-2-Z-F-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM4B-FREQ-S-R060-E-2-Z-F-T

ABM4B-FREQ-S-R060-E-2-Z-F-T: DescriptionSeries - Fundamental Quartz Crystal, 10MHz Min, 16MHz Max, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size576KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM4B-FREQ-S-R060-E-2-Z-F-T Overview

Series - Fundamental Quartz Crystal, 10MHz Min, 16MHz Max, CERAMIC PACKAGE-2

ABM4B-FREQ-S-R060-E-2-Z-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	CERAMIC PACKAGE-2
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	20 ppm
Manufacturer's serial number	ABM4B
Installation features	SURFACE MOUNT
Maximum operating frequency	16 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L7.0XB5.0XH1.6 (mm)/L0.276XB0.197XH0.063 (inch)
Series resistance	60 Ω
surface mount	YES

Preview

Download Datasheet

View All

MICROPROCESSOR CRYSTALS

LOW PROFILE CERAMIC SURFACE MOUNT

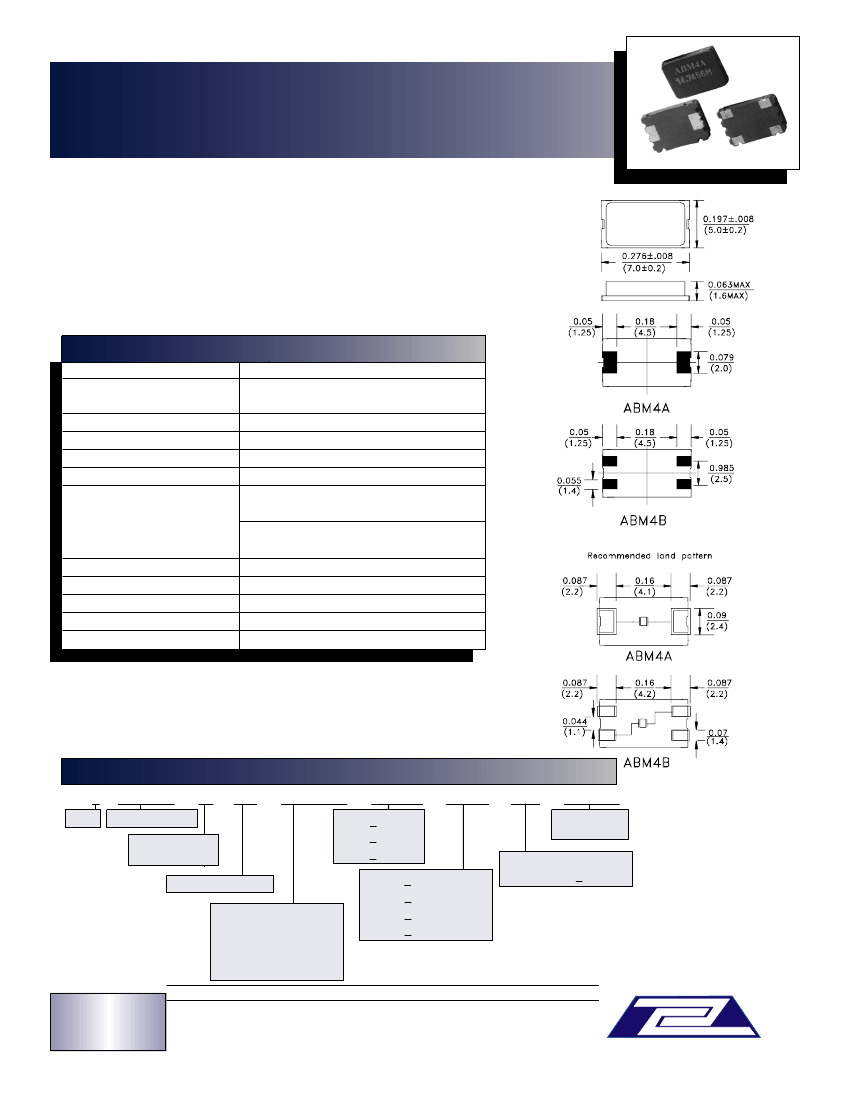

ABM 4A and ABM 4B

FEATURES:

• 1.6 mm max. in height.

• Glass sealing assures high reliability.

• Computers, Modems, Microprocessors.

• Communication, Test equipment.

• High density applications.

7.0 x 5.0 x 1.6 mm

• Suitable for reflow.

APPLICATIONS:

6.00MHz

- 100.00MHz

SPECIF

CATIO

(Fundamental)

6.00MHz

32.00MHz

28.00MHz ~ 100.00MHz (3rd overtone)

Operating Temperature

-10°C to +60°C

(See Options)

Storage Temperature

-40°C to +85°C

Frequency Tolerance

25°C

± 50ppm max.

(See Options)

Frequency Stability over Temp.

± 50ppm max.

(See Options)

Equivalent Series Resistance 60

max. for 10.0MHz < F < 16.0MHz

(ESR) Fundamental

_ _

max. for 16.0MHz < F < 32.0MHz

max. for 28.0MHz < F < 34.0MHz

3rd Overtone

_ _

max. for 34.0MHz < F < 100.0MHz

Shunt Capacitance C

7pF max.

Load Capacitance C

18p F

(See Options)

Drive Level

100 µ W max.

Aging

25°C First Year

±5pp m max.

Insulation Resistance

500M

min. at 100Vdc ±15V

Frequency Range

STA

Mode

Operating

NDARD

Environmental, and mechanical specifications, see appendix C, Group 2.

Marking, see appendix G. Tape and Reel, see appendix H.(1,000 pcs / reel)

Recommended handling, see appendix F. Reflow profile, see appendix E.

Application notes, see appendix A.

STANDARD SPECIFICATIONS

ORDERING OPTIONS

ABM4X -

A, B

Frequency -

XX.XXXX MHz

Load cap. in pF

or -S for Series

RXXX (value in

)

- E for 0 °C to + 70°C

- B for -20°C to + 70°C

- C for -30°C to + 70°C

- N for -30°C to + 85°C

- D for -40°C to + 85°C

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Dimensions: Inches (mm)

CL -

ESR -

Temperature -

Tolerance -

Stability -

Mode -

Packaging

-T

(Tape & Reel)

-2 for + 20ppm*

-3 for + 25ppm

-4 for + 30ppm

-W

-Y

-H

-Z

for + 25ppm max.*

for + 30ppm max.

for + 35ppm max.

for + 100ppm max.**

-F

Fundamental > 28 MHz

Please call us for availability.

** Option Z may apply to extended temperatures.

NOTE: Left blank if standard

•

All specifications and markings subject to change without notice

ABRACON

29 Journey • Aliso Viejo, CA 92656 • USA

(949) 448-7070 •

: (949) 448-8484

E-

MAIL

abinfo

abracon.com •

NTERNET

DDRESS

www.abracon.com

C O R P O R AT I O N
