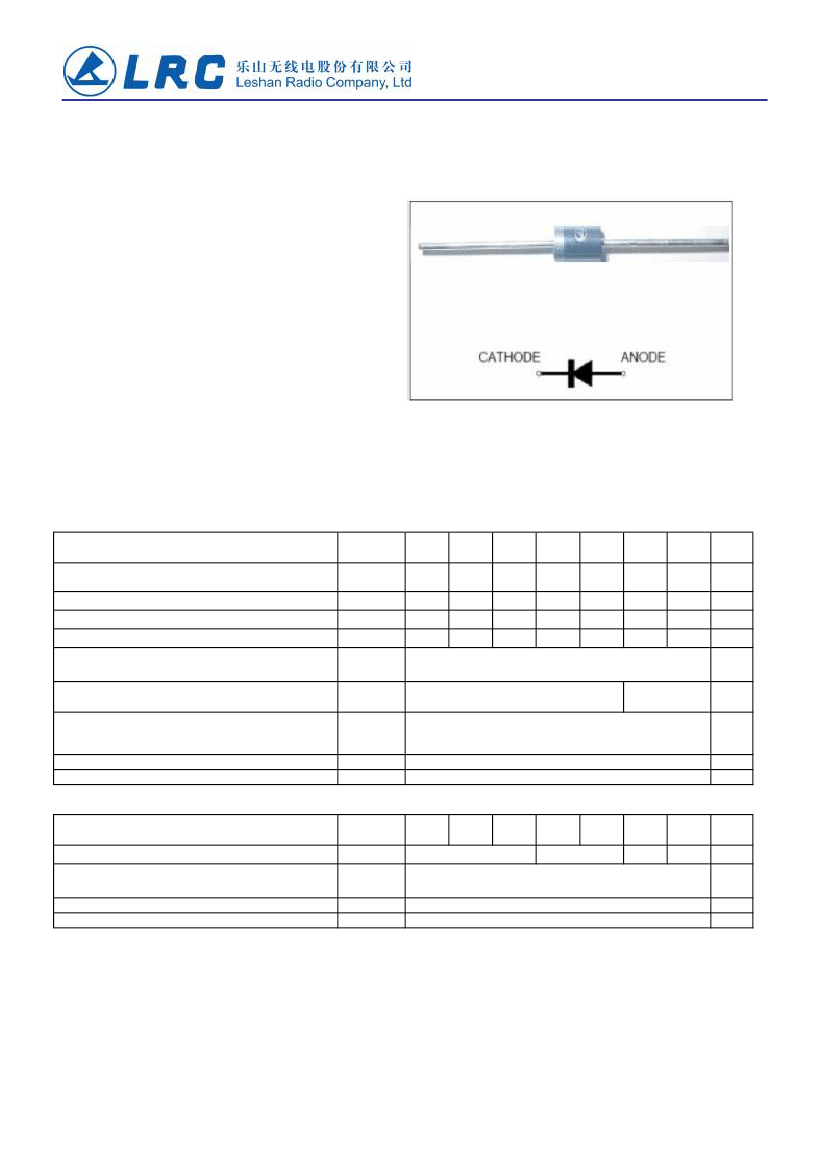

UGP30A thru UGP30K
Glass Passivated Junction Ultra Fast Rectifiers
Reverse Voltage 50 to 800V Forward Current3.0A
FEATURES
* Plastic package has Underwriters Laboratories
*
*
*
*
*
*
*
*
Flammability Classification 94V-0
Ideally suited for use in very high frequency switching
power supplies, inverters and as free wheeling diodes
Ultrafast recovery time for high efficiency
Excellent high temperature switching
Soft recovery characteristics
Cavity-free glass passivated junction
High temperature soldering guaranteed:
260°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension

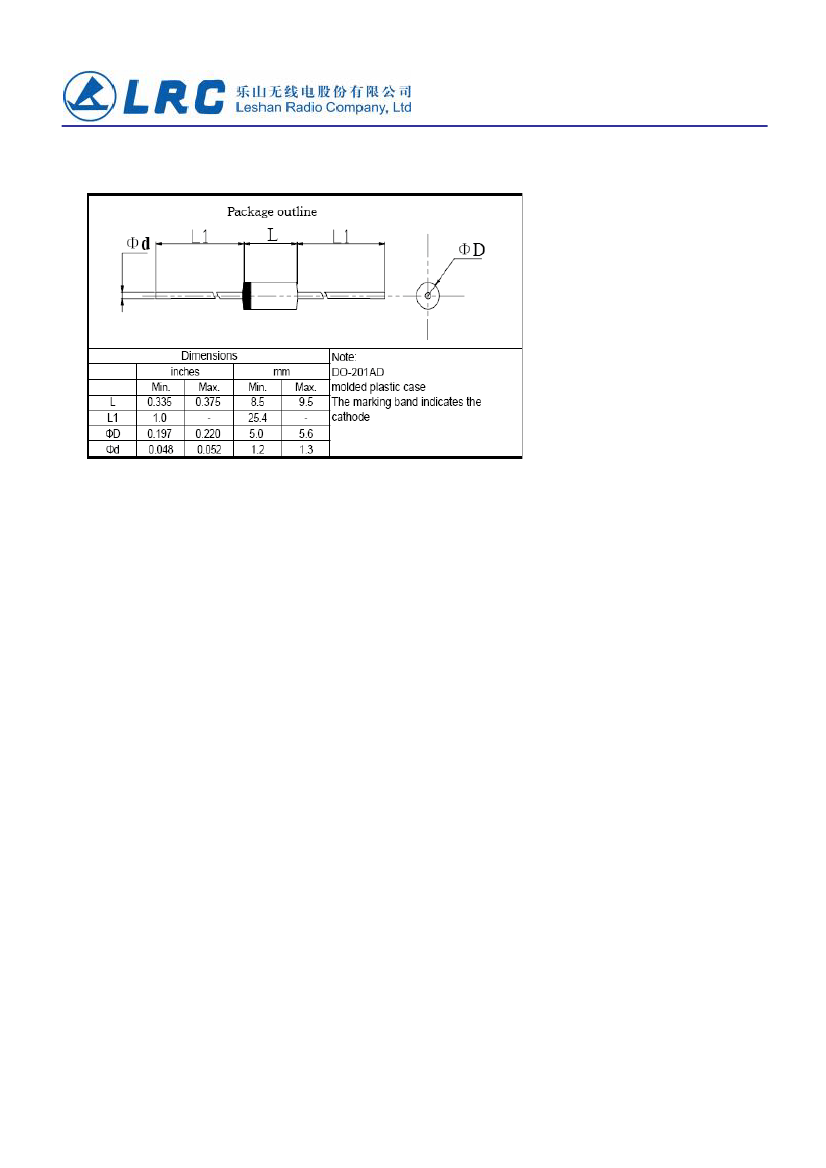

Mechanical Data
Case:
JEDEC DO-201AD, molded plastic over glass DIE
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.038 oz., 1.03 g
Handling precautin:None
We declare that the material of product
compliance with ROHS requirements
1.Electrical Characteristic
Maximum Ratings & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified.
UGP30 UGP30 UGP30 UGP30 UGP30 UGP30 UGP30
Parameter Symbol
symbol
A
B
D
F
G
J
K
device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
=55°C
Peak forward surge current 8.3ms single half sine-
wave superimposed on rated load (JEDEC Method)
Maximum full load reverse current, full cycle
average,0.375"(9.5mm) lead lengths at T
A
= 55°C
Typical thermal resistance (Note 2)
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
IF(AV)
I
FSM
IR(AV)
RθJA
TJ, TSTG
125
100
20
–50
to +150
UGP30 UGP30 UGP30
UGP30
UGP30
UGP30F
UGP30J
A
B
D
G
K
Unit
50
35
50
100
70
100
200
140
200
300
210
300
3.0
400
280
400
600
420
600
800
560
800
V
V
V
A
115
A
µA
°C/W
°C
Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.
UGP30 UGP30 UGP30 UGP30 UGP30 UGP30 UGP30
Parameter Symbol
symbol
A
B
D
F
G
J
K
0.95
1.25
Maximum instantaneous forward voltage at 3.0A
V
1.70 2.20
Maximum DC reverse current TA = 25°C
IR
at rated DC blocking voltage TA = 125°C
Typical reverse recovery time (Note 1)
trr
Typical junction capacitance at 4.0V, 1MHz
CJ
NOTES:
1. IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted
5
100
35
35
Unit
V
µA
ns
PF
UGP30A thru UGP30K

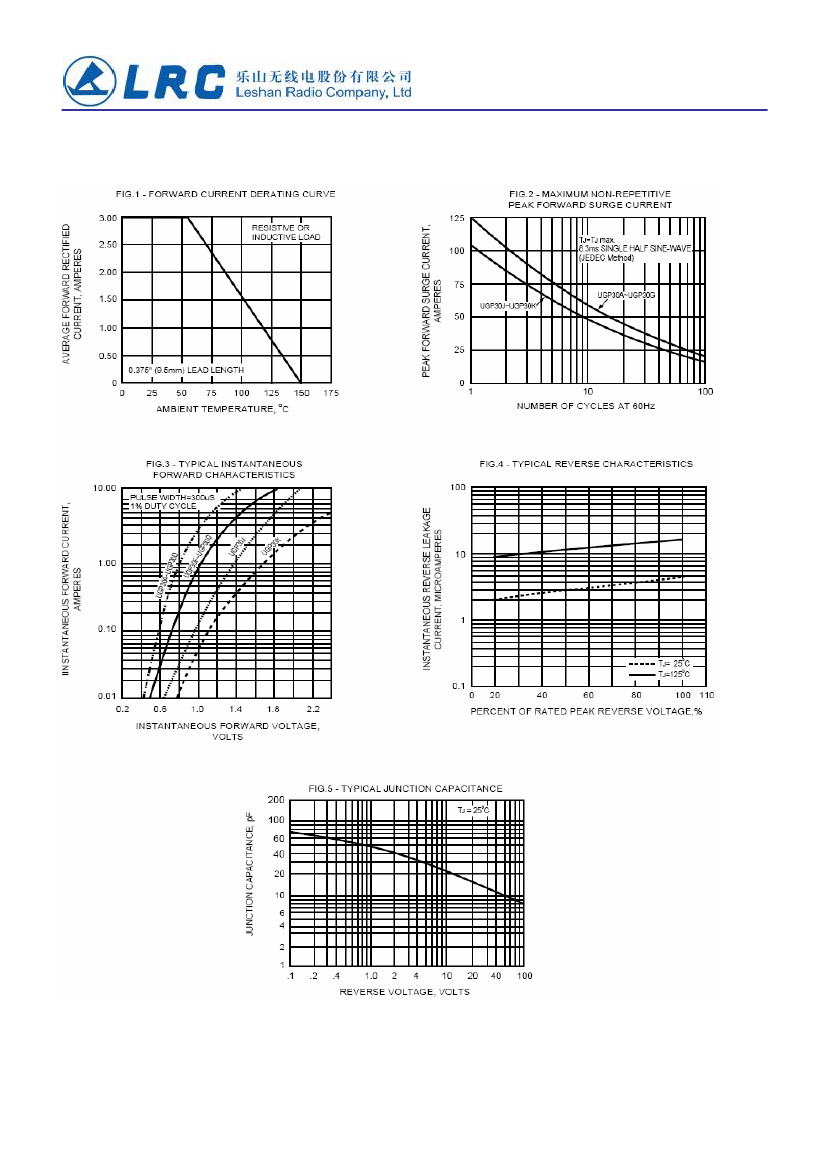

2.Ratings and Characteristic Curves
( TA = 25°C unless otherwise noted )
Fig. 1
–
Forward Current Derating Curve
Average Forward Rectified Current (A)
60 Hz
Resistive or
Inductive Load
3.0
1.5
0.375" (9.5mm) Lead Length
Instantaneous Reverse Current (µA)
Instantaneous Forward Current (A)
25
50 75 100 125 150 175
Ambient Temperature,
°C
Fig 3.
–
Typical Instantaneous Forward
Characteristics
10
1.0
0.1
0.01
TJ = 25°C
Pulse width = 300µs
1% Duty Cycle
0
0
Fig 4.
–
Typical Reverse Characteristics
100
10
Tj=75℃
Tj=125℃
1.0
0.1
0.01
Tj=25℃
0.001
0.8
Transient thermal impedance(°C/W)
100
Junction Capacitance (pF)
1.0
1.2
1.4
1.6
1.8
Instantaneous Forward Voltage (V)
Fig 5.
–typical
transient thermal
impedance
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig 6.
–
Typical Junction Capacitance
20
10
10
1.0
TJ = 25°C
f = 1.0 MHz
Vsig = 50mVp-p
0.1
0.01
0.1
1.0
10
t,Pulse duration,sec
100
1.0
0.1
1
10
Reverse Voltage (V)
