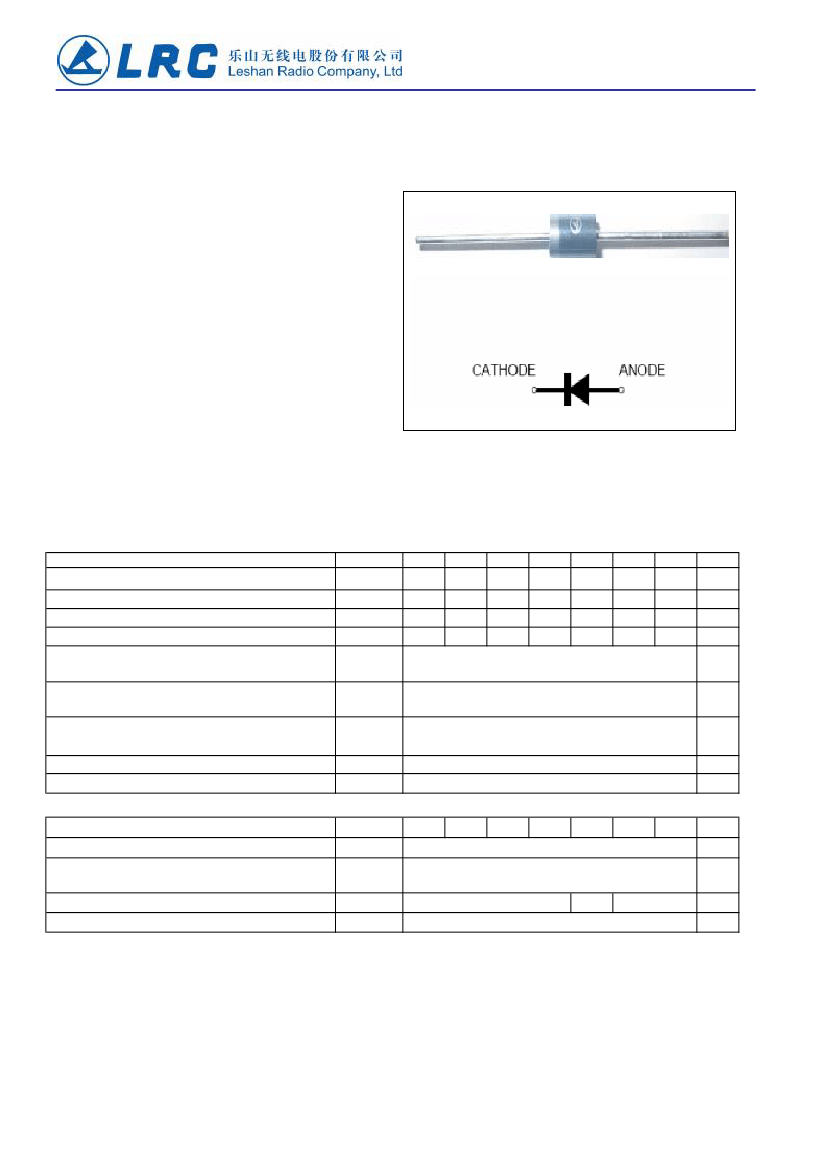

1F1G thru 1F7G
Glass Passivated
s
Junction Fast
Recovery
Rectifiers
Reverse Voltage 50 to 1000V Forward Current 1.0A

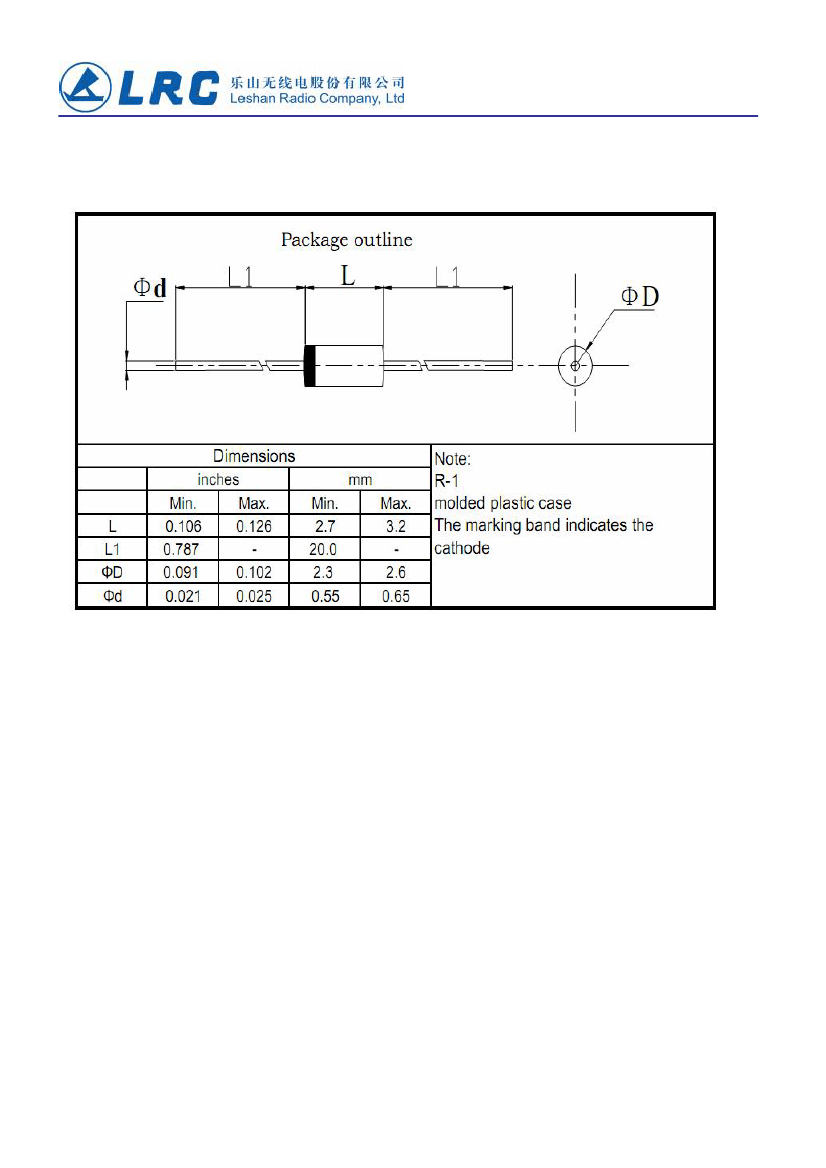

Feature & Dimensions
* Plastic package has Underwriters Laboratory
*
*
*
*
*
*
*
*
Flammability Classification 94V-0
High temperature metallurgically bonded construction
Glass Passivated junction
Capable of meeting environmental standards of MIL-S-19500
1.0 A operation at TA=55°C with no thermal runaway
For use in high frequency rectifier circuits
Fast switching for high efficiency
Typical IR less than 1.0µA
High temperature soldering guaranteed:
350°C/10 seconds
* 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension
Case:
JEDEC R-1, molded plastic body
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.0063 oz., 0.167 g
Handling precautin:None
Mechanical Data
We declare that the material of product compliance
with ROHS requirements
Parameter Symbol
1.Electrical Characteristic
Maximum & Thermal Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
symbol
V
RRM
V
RMS
V
DC
IF(AV)
I
FSM
IR(AV)
RθJA
TJ, TSTG
symbol
V
F
IR
trr
150
15
1F1G
1F2G
1F1G
50
35
50
1F2G
100
70
100
1F3G
200
140
200
1F4G 1F5G
400
280
400
1.0
25
100
55
–50to
+150
1F3G
1F4G 1F5G
1.3
5.0
200
250
500
1F6G 1F7G
600
420
600
1F6G 1F7G
800
560
800
1F1G
1F2G
1F3G
1F4G 1F5G
1F6G 1F7G
1000
700
1000
Unit
V
V
V
A
A
µA
device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
= 55°C
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum full load reverse current, full cycle
average,0.375"(9.5mm) lead lengths at T
A
= 55°C
Typical thermal resistance (Note 2)
Operating junction and storage temperature range
Parameter Symbol
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current TA = 25°C
at rated DC blocking voltage TA = 100°C
Typical reverse recovery time (Note 1)
°C/W
°C
Electrical Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Unit
V
µA
ns
PF
Typical junction capacitance at 4.0V, 1MHz
CJ
NOTES:
1. IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted
1F1G thru 1F7G

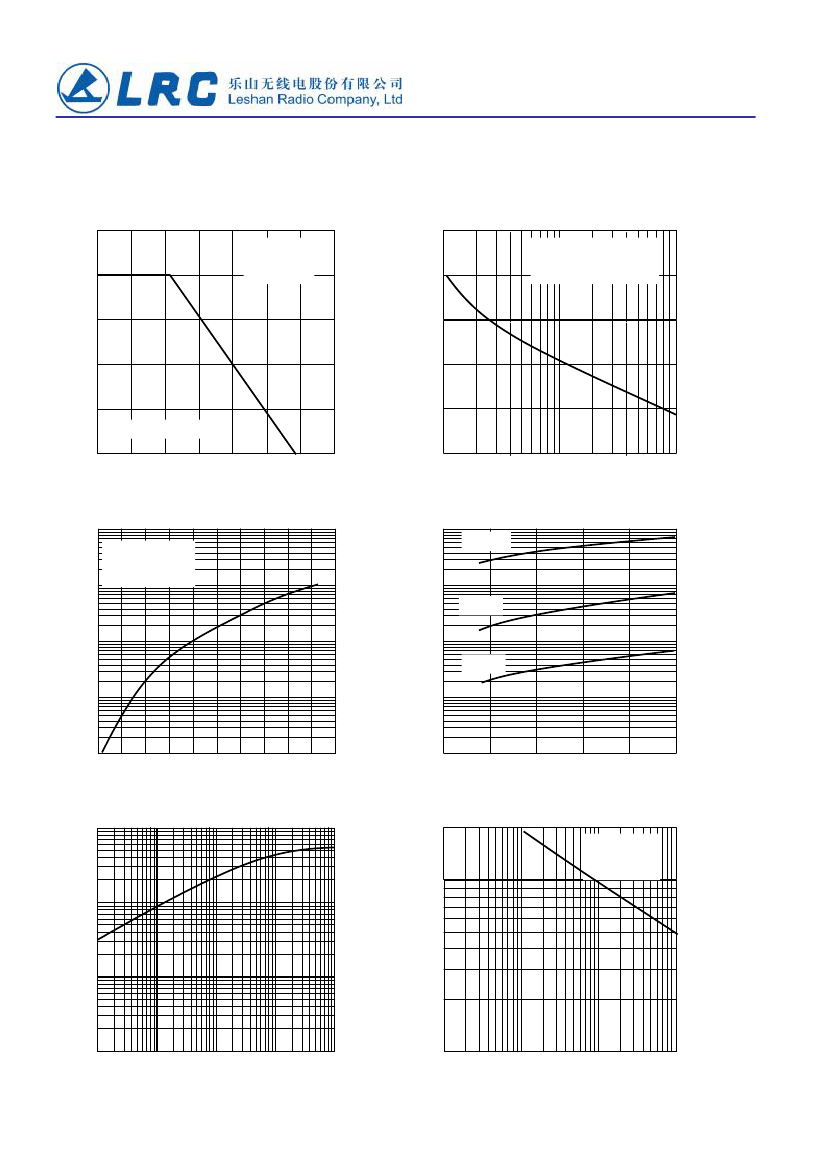

2. Characteristic Curves
( TA = 25°C unless otherwise noted )
Fig. 1
–
Forward Current Derating Curve
Average Forward Rectified Current (A)
60 Hz
Resistive or
Inductive Load
Fig. 2
–
Maximum Non-repetitive Peak
Forward Surge Current
Average Forward Rectified Current (A)
TJ = TJ max
8.3ms Single Half Sine-wave
(JEDEC Method)
1.0
25
0.5
12.5
0.375" (9.5mm) Lead Length
0
0
25
50 75 100 125 150 175
Ambient Temperature,
°C
0
1
10
Number of Cycles at 60Hz
100
Instantaneous Reverse Current (µA)
Instantaneous Forward Current (A)
100
Fig 3.
–
Typical Instantaneous Forward
Characteristics
TJ = 25°C
Pulse width = 300µs
1% Duty Cycle
Fig 4.
–
Typical Reverse Characteristics
100
Tj=125℃
10
10
Tj=75℃
1.0
1.0
Tj=25℃
0.1
0.1
0.01
0.6
0.8
1.0
1.2
1.4
Instantaneous Forward Voltage (V)
0.01
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig 6.
–
Typical Junction Capacitance
20
Junction Capacitance (pF)
10
TJ = 25°C
f = 1.0 MHz
Vsig = 50mVp-p
Transient thermal impedance(°C/W)
100
Fig 5.
–typical
transient thermal
impedance
10
1.0
0.1
0.01
0.1
1.0
10
t,Pulse duration,sec
1.0
0.1
1
10
Reverse Voltage (V)
100
