AT-CUT LOW COST CERAMIC SMD CRYSTAL
ABM75C
FEATURES:
• Industrial standard package 7.0x5.0, 4 pads
• Ideal for Cost Sensitive Commercial Electronics
• Suitable for High Volume Applications
APPLICATIONS:
• Laptop computers
• Computer peripherals
• Home network modem
Pb
RoHS
Compliant
7.0 x 5.0 x 1.2 mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Frequency range:
Operation Mode:
Operating temperature:
Storage temperature:
Freq. Tolerance at +25° C:
Freq. stability over operating
temperature (Ref to +25° C):
Equivalent series resistance:
Shunt capacitance C0:
Load capacitance CL:
Drive Level:
Aging @ 25°C per year:
Insulation Resistance:
TABLE 1
Frequency (MHz)
7.600 - 11.999
12.000 - 16.000
16.001 - 35.000
35.001 - 48.000
ABM75C Series
7.6 MHz to 48 MHz
AT-cut (Fundamental for <35MHz, 3rd OT for >35MHz)
-10°C to + 60°C (see options)
-40°C to +85°C
± 30ppm max. (Contact ABRACON for tighter tolerance)
± 50ppm max. (Contact ABRACON for tighter stability)
See Table 1
7pF max
18pF (see option)
100uW max
±10ppm max
500Mohms min at 100Vdc ± 15V
ESR (Ω )
Ω
80
60
40
Contact ABRACON
Test Condition
Parts shall be tested under the condition of +20±15°C of the temperature, +65%±20%RH of the humidity unless
the standard condition of +25±2°C of the temperature, +65%±5%RH of the humidity is specified.
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
ABM75C - Frequency -
-
-
Frequency
XX.XXXX MHz
Operating Temp.
E
0°C ~ +70°C
B
-20°C ~ +70°C
Packaging
Blank
Bulk
T
Tape & Reel
Load Capacitance
Please specify CL in pF
(From 12 to 30)
Please NOTE: This part is not recommended for high reliability applications such as
automotive, medical, or safety related applications. Please contact ABRACON for
information regarding our high reliability products and for application assistance.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.02.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
AT-CUT LOW COST CERAMIC SMD CRYSTAL
ABM75C

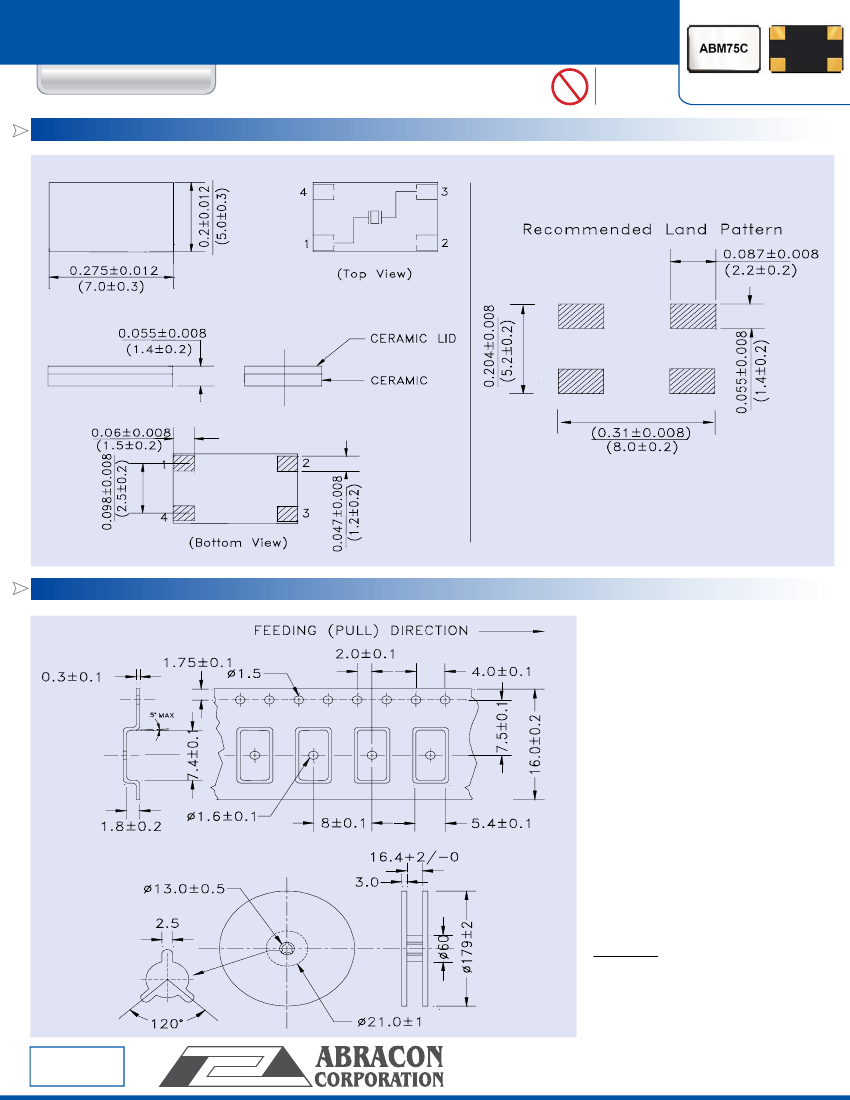

OUTLINE DRAWING:
Pb
RoHS
Compliant
7.0 x 5.0 x 1.2 mm
| | | | | | | | | | | | | | |
Dimensions: inches (mm)
TAPE & REEL:
T = Tape and reel 1,000pcs/reel
Dimensions: mm
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Please NOTE: This part is not recommended
for high reliability applications such as
automotive, medical, or safety related
applications. Please contact ABRACON for
information regarding our high reliability
products and for application assistance.
Revised: 08.02.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
