ABM75CA-FREQ4-18 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM75CA-FREQ4-18

ABM75CA-FREQ4-18: DescriptionParallel - 3Rd Overtone Quartz Crystal, 35.001MHz Min, 48MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size156KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM75CA-FREQ4-18 Overview

Parallel - 3Rd Overtone Quartz Crystal, 35.001MHz Min, 48MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ABM75CA-FREQ4-18 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AT CUT CRYSTAL; BULK
Ageing	10 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	18 pF
Manufacturer's serial number	ABM75CA
Installation features	SURFACE MOUNT
Maximum operating frequency	48 MHz
Minimum operating frequency	35.001 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C

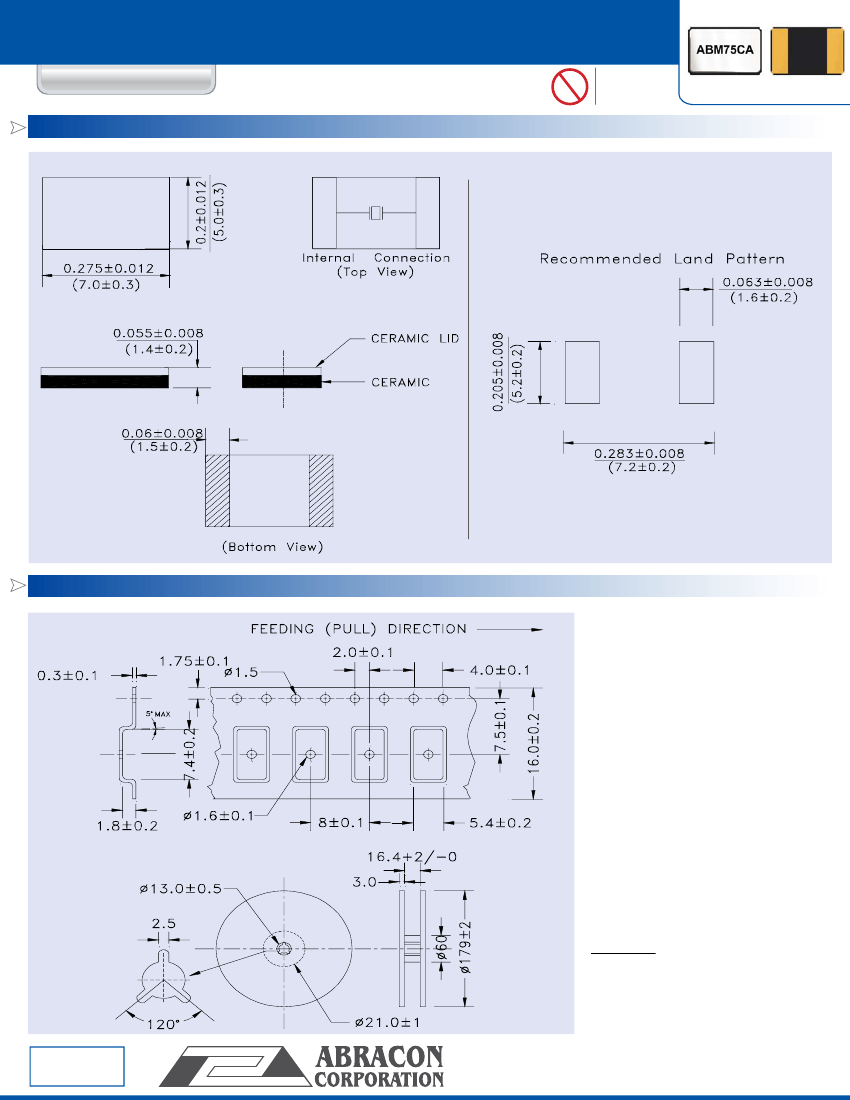

physical size	L7.0XB5.0XH1.4 (mm)/L0.276XB0.197XH0.055 (inch)
surface mount	YES

Preview

Download Datasheet

View All

AT-CUT LOW COST CERAMIC SMD CRYSTAL

ABM75CA

FEATURES:

• Industrial standard package 7.0x5.0, 2 pads

• Ideal for Cost Sensitive Commercial Electronics

• Suitable for High Volume Applications

APPLICATIONS:

• Laptop computers

• Computer peripherals

• Home network modem

RoHS

Compliant

7.0 x 5.0 x 1.4 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Operation Mode:

Operating temperature:

Storage temperature:

Freq. Tolerance at +25° C:

Freq. stability over operating

temperature (Ref to +25° C):

Equivalent series resistance:

Shunt capacitance C0:

Load capacitance CL:

Drive Level:

Aging @ 25°C per year:

Insulation Resistance:

TABLE 1

Frequency (MHz)

7.600 - 11.999

12.000 - 16.000

16.001 - 35.000

35.001 - 48.000

ABM75CA Series

7.6 MHz to 48 MHz

AT-cut (Fundamental for <35MHz, 3rd OT for >35MHz)

-10°C to + 60°C (see options)

-40°C to +85°C

± 30ppm max. (Contact ABRACON for tighter tolerance)

± 50ppm max. (Contact ABRACON for tighter stability)

See Table 1

7pF max

18pF (see option)

100uW max

±10ppm max

500Mohms min at 100Vdc ± 15V

ESR (Ω )

Contact ABRACON

Test Condition

Parts shall be tested under the condition of +20±15°C of the temperature, +65%±20%RH of the humidity unless

the standard condition of +25±2°C of the temperature, +65%±5%RH of the humidity is specified.

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ABM75CA - Frequency -

Frequency

XX.XXXX MHz

Operating Temp.

0°C ~ +70°C

-20°C ~ +70°C

Packaging

Blank

Bulk

Tape & Reel

Load Capacitance

Please specify CL in pF

(From 12 to 30)

Please NOTE: This part is not recommended for high reliability applications such as

automotive, medical, or safety related applications. Please contact ABRACON for

information regarding our high reliability products and for application assistance.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 08.02.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
