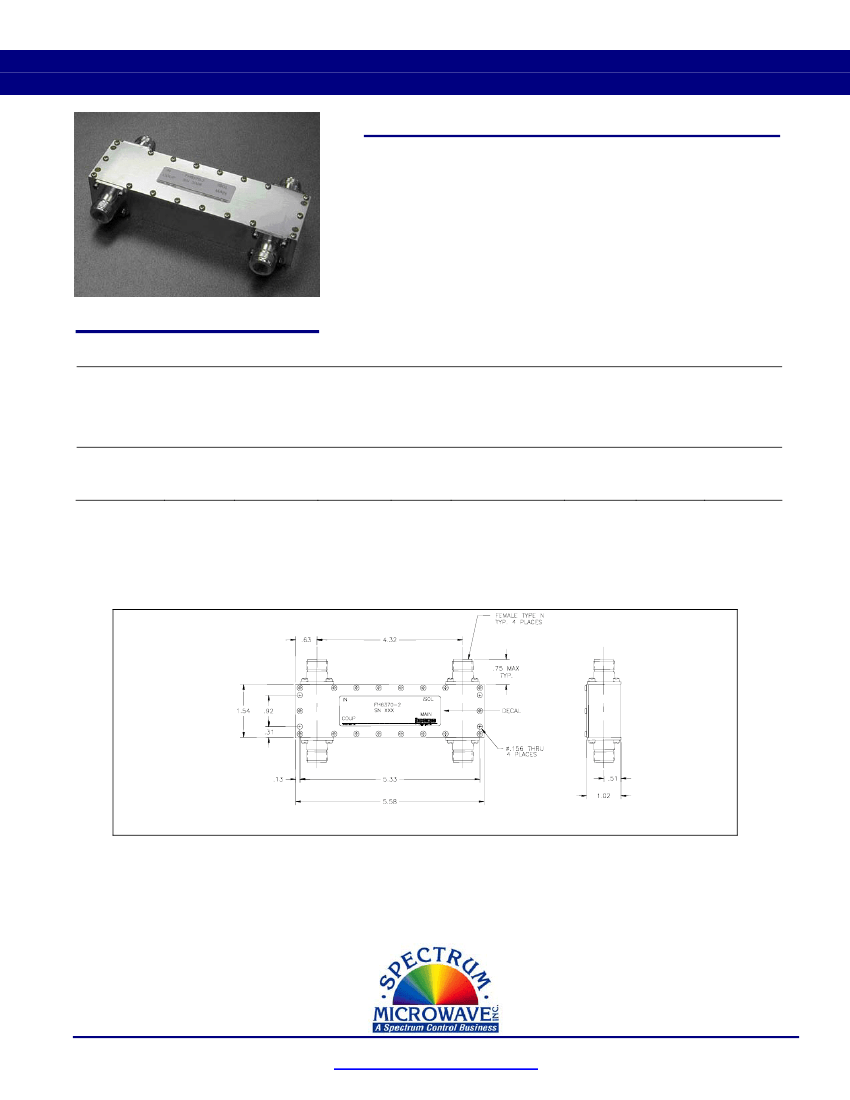

PRODUCT
SPECIFICATION
FEATURES
•
•
•
•
QUADRATURE HYBRID / COMBINER
DUAL BAND, 3 dB
Cover Cellular, PCS & 3G Standard Communications Bands
Type “N” Connectors Standard
Robust Low Cost Package Design
Low Passive Intermodulation Product (PIMP) Design
FH6370 SERIES
SPECIFICATIONS
Frequency
(GHz)
Coupling
(dB)
Unbalance
1
(dB)
Return
Loss max
(dB)
Loss
2
max
(dB)
Isolation
min
(dB)
Power
Handling
max
CW
(Watts)
PIMP
Min
(dBm)
Model
Number
0.8-2.5
3
± .5
20
.3
23 (0.8-2.4Ghz)
22 (2.4-2.5Ghz)
200
>100
FH6370-2
NOTES:
1. Unbalance specifies the maximum coupling loss variation within the specified operating range.
2. Loss is the actual dissipated and reflected loss. It does NOT include coupling loss.
OUTLINE DRAWING
MISCELLANEOUS:
1.
2.
3.
4.
Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.
All specifications subject to change without notice.
Check “Ordering and Availability Listing” for delivery and ordering information.
Contact our local Manufacturers Representative for pricing.
Specification Revision - 071910
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605
