FP9106PM Overview

RF AMPLIFIER MODEL

FP9106PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

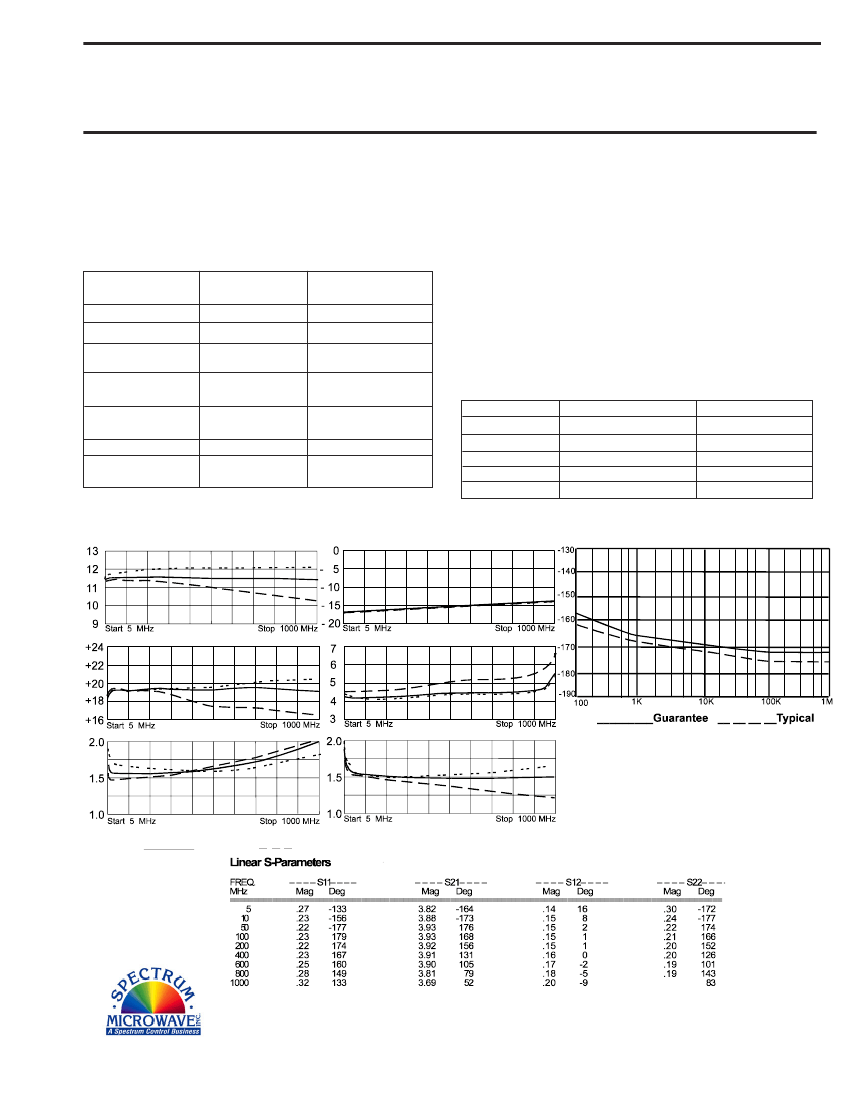

RF AMPLIFIER

MODEL

TM9106PM

Features

Superior Phase Noise Performance

Noise Figure: 4.8 dB Typical

Output Power: +19 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9106PM, 4 Pin TO-8 (T4)

TN9106PM, 4 Pin Surface Mount (SM3)

FP9106PM, 4 Pin Flatpack (FP4)

BX9106PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +38 dBm (Typ.)

Second Order Two Tone Intercept Point ..... ..+32 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +27 dBm (Typ.)

Maximum Ratings

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 1000 MHz

10.5 Min.

+16.0 Min.

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)*

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5 - 1000 MHz

12.0

+19.0

-14.5

<1.75:1

<1.5:1

4.8

+15

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

- 13

Max.

2.0:1 Max.

6.0 Max.

+15

75 Max.

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-162

-168

-172

-175

Guarantee (min.)

-158

-165

-169

-172

Note: Care should always be taken to effectively ground the case of each unit.

*Noise Figure is 1 dB higher above 900 MHz.

Typical Performance Data

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

Gain (dB)

1 dB Comp. (dBm)

Noise Figure (dB)

Input VSWR

Output VSWR

Residual Phase Noise Test Conditions:

Carrier Frequency: 600 MHz

Power Output +18 dBm

Temperature: 25

Agilent ES5500 System

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

12/19/07

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

Rev.

FP9106PM Related Products

	FP9106PM	BX9106PM	TM9106PM	TN9106PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	10.5 dB	10.5 dB	10.5 dB	10.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	-	API Technologies	API Technologies	API Technologies
