FP9113 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9113

FP9113: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9113 Overview

RF AMPLIFIER MODEL

FP9113 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
RF/Microwave Device Types	WIDE BAND LOW POWER

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9113

Features

Low Noise Figure: 3 dB Typical

High Gain: 26 dB Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9113, 4 Pin TO-8 (T4)

TN9113, 4 Pin Surface Mount (SM3)

FP9113, 4 Pin Flatpack (FP4)

BX9113, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point........+46 dBm (Typ.)

Second Order Two Tone Intercept Point.........+40 dBm (Typ.)

Third Order Two Tone Intercept Point.............+22 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

10 - 1000 MHz

+10.0

<1.5:1

3.0

MIN/MAX

Ta = -55

ºC

to +85

ºC

10 - 1000 MHz

24 Min.

+8.0 Min.

2.0:1 Max.

4.0 Max.

40 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage ........................................................... +8 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

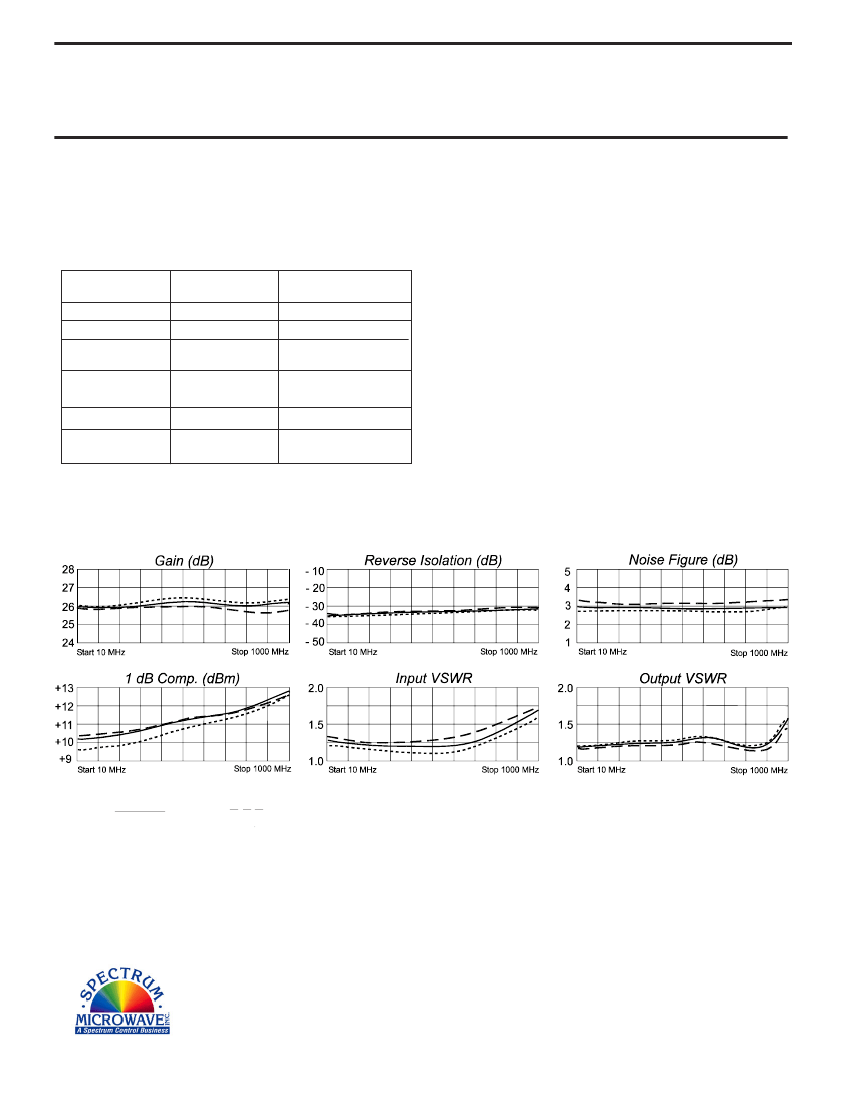

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

4/4/08

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9113 Related Products

	FP9113	BX9113	TM9113	TN9113
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
