FP9114 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9114

FP9114: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size76KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9114 Overview

RF AMPLIFIER MODEL

FP9114 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	18 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

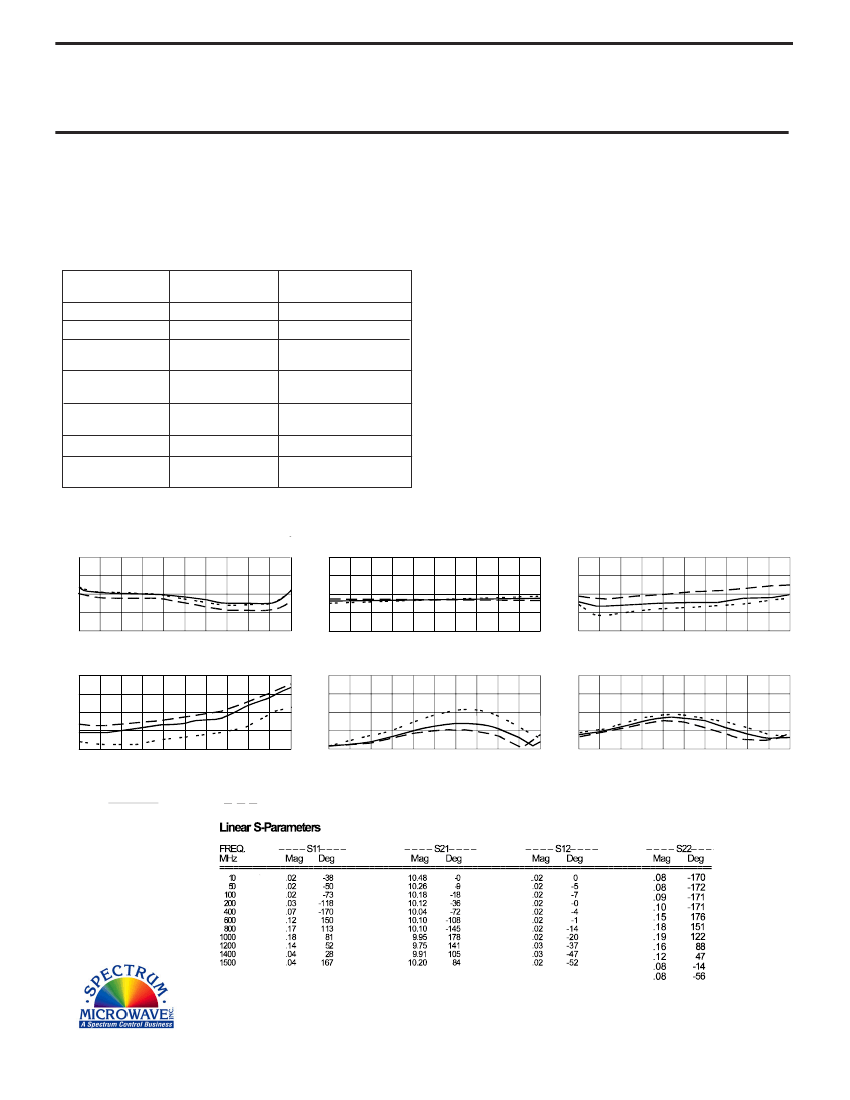

RF AMPLIFIER

MODEL

TM9114

Features

High Gain: 20 dB Typical

High Reverse Isolation: -32 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9114, 4 Pin TO-8 (T4)

TN9114, 4 Pin Surface Mount (SM3)

FP9114, 4 Pin Flatpack (FP4)

BX9114,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+47 dBm (Typ.)

Second Order Two Tone Intercept Point.........+42 dBm (Typ.)

Third Order Two Tone Intercept Point.............+21 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 1500 MHz

-32

<1.4:1

<4.0

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1500 MHz

18 Min.

+5 Min.

-30 Max.

2.0:1 Max.

5.5 Max.

+12

38 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 15 Volts

Continuous RF Input Power ................................... + 6 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 1500 MHz

- 10

- 20

- 30

- 40

- 50

Reverse Isolation (dB)

Start 10 MHz

Stop 1500 MHz

Noise Figure (dB)

Start 10 MHz

Stop 1500 MHz

1 dB Comp. (dBm)

+13

+11

+ 9

+ 7

+ 5

Start 10 MHz

Stop 1500 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1500 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

07/09/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9114 Related Products

	FP9114	BX9114	TM9114	TN9114
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	18 dB	18 dB	-	18 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	1500 MHz	1500 MHz	-	1500 MHz
Minimum operating frequency	10 MHz	10 MHz	-	10 MHz
Maximum operating temperature	100 °C	100 °C	-	100 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	-	2
