FP9119 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9119

FP9119: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size71KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9119 Overview

RF AMPLIFIER MODEL

FP9119 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

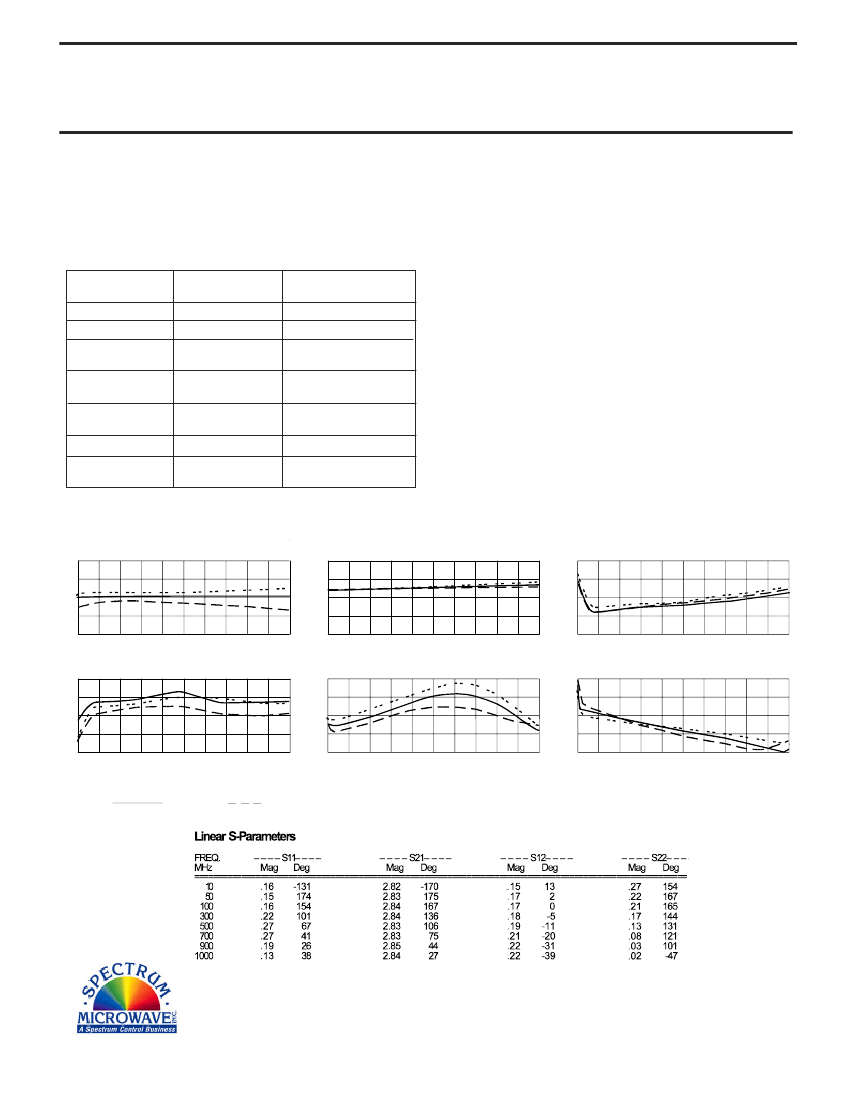

RF AMPLIFIER

MODEL

TM9119

Features

Medium Gain: 9 dB Typical

High Output Power: +21 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9119, 4 Pin TO-8 (T4)

TN9119, 4 Pin Surface Mount (SM3)

FP9119, 4 Pin Flatpack (FP4)

BX9119,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+45 dBm (Typ.)

Second Order Two Tone Intercept Point.........+40 dBm (Typ.)

Third Order Two Tone Intercept Point.............+34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

10 - 1000 MHz

+21

-13

<1.5:1

8.5

+15

100

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1000 MHz

7 Min.

+19 Min.

-12 Max.

2.0:1 Max.

11.0 Max.

+15

110 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 1000 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 10 MHz

Stop 1000 MHz

Noise Figure (dB)

Start 10 MHz

Stop 1000 MHz

1 dB Comp. (dBm)

+23

+22

+21

+20

+19

Start 10 MHz

Stop 1000 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1000 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

07/12/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9119 Related Products

	FP9119	BX9119	TM9119	TN9119
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	7 dB	7 dB	7 dB	7 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	-	API Technologies	API Technologies
