FP9126 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9126

FP9126: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size78KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9126 Overview

RF AMPLIFIER MODEL

FP9126 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	MODULE,4LEAD(UNSPEC)
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	18.5 dB
Maximum input power (CW)	10 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	70 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

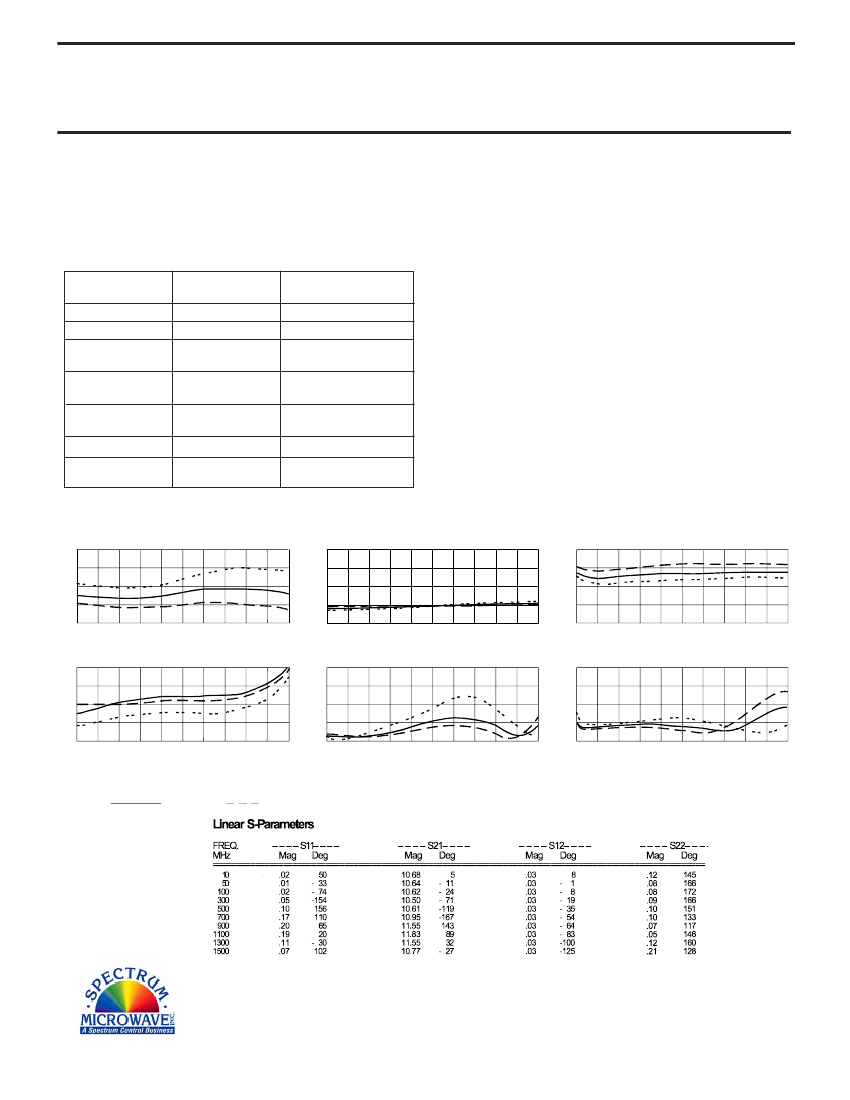

RF AMPLIFIER

MODEL

TM9126

Features

High Gain: 20.5 dB Typical

Medium OutputPower: +15 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9126, 4 Pin TO-8 (T4)

TN9126, 4 Pin Surface Mount (SM3)

FP9126, 4 Pin Flatpack (FP4)

BX9126, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+51 dBm (Typ.)

Second Order Two Tone Intercept Point.........+45 dBm (Typ.)

Third Order Two Tone Intercept Point.............+28 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

10 - 1500 MHz

20.5

+15

-30

<1.5:1

<5.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1500 MHz

18.5 Min.

+13 Min.

-27 Max.

2.0:1 Max.

6.0 Max.

+15

70 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 1500 MHz

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 1500 MHz

Start 10 MHz

Noise Figure (dB)

Stop 1500 MHz

1 dB Comp. (dBm)

+17

+16

+15

+14

+13

Start 10 MHz

Stop 1500 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1500 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 1500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

07/21/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9126 Related Products

	FP9126	BX9126	TM9126	TN9126
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	18.5 dB	18.5 dB	18.5 dB	-
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	-
Maximum operating frequency	1500 MHz	1500 MHz	1500 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
