FP9126PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9126PM

FP9126PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size105KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9126PM Overview

RF AMPLIFIER MODEL

FP9126PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	18.5 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

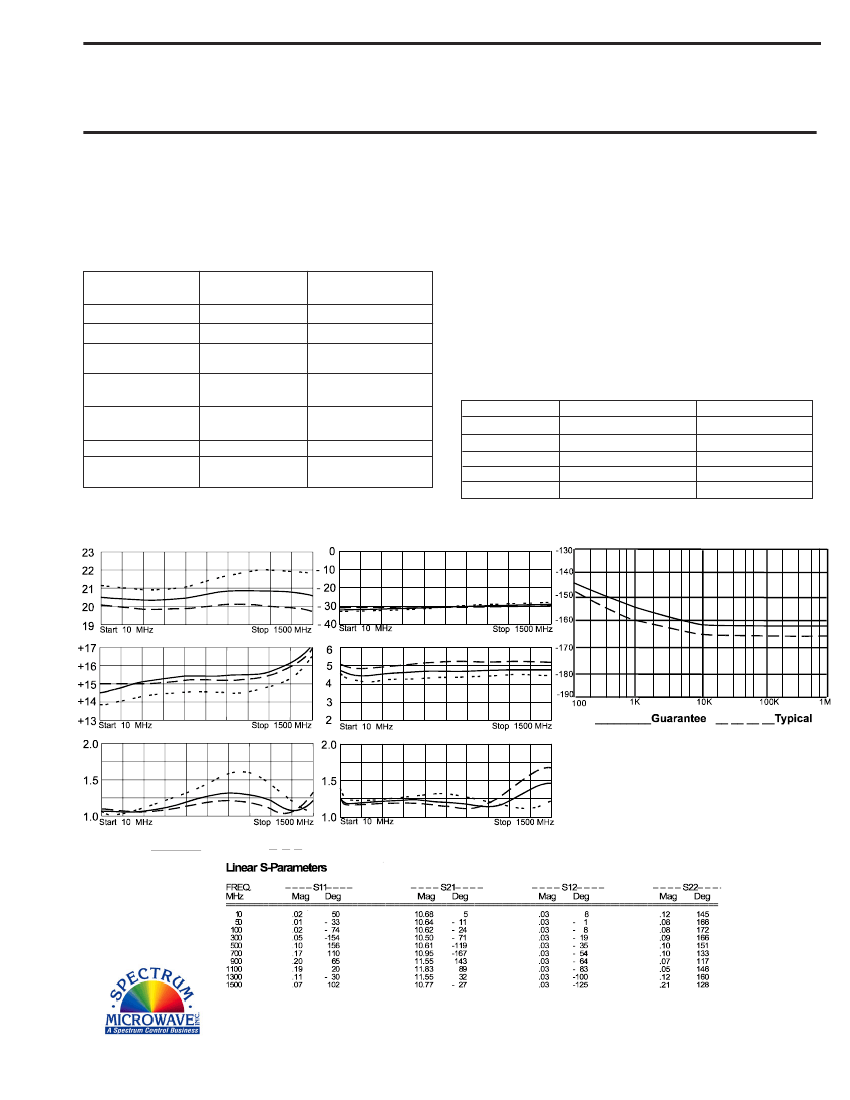

RF AMPLIFIER

MODEL

TM9126PM

Features

Superior Phase Noise Performance

High Gain 20.5 dB Typical

Output Power: +15 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9126PM, 4 Pin TO-8 (T4)

TN9126PM, 4 Pin Surface Mount (SM3)

FP9126PM, 4 Pin Flatpack (FP4)

BX9126PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +51 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +45 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +28 dBm (Typ.)

Maximum Ratings

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1500 MHz

18.5 Min.

+13.0 Min.

-27 Max.

2.0:1 Max.

6.0 Max.

+15

70 Max.

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 1500 MHz

20.5

+15.0

-30

<1.5:1

<5.0

+15

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +10 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-148

-160

-165

Guarantee (min.)

-145

-154

-162

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Noise Figure (dB)

Input VSWR

Output VSWR

Agilent ES5500 System

Residual Phase Noise Test Conditions:

Carrier Frequency: 1.2 GHz

Power Output +15 dBm

Temperature: 25

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9126PM Related Products

	FP9126PM	BX9126PM	TM9126PM	TN9126PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	18.5 dB	18.5 dB	18.5 dB	-
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	-
Maximum operating frequency	1500 MHz	1500 MHz	1500 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
