FP9137PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9137PM

FP9137PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size113KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9137PM Overview

RF AMPLIFIER MODEL

FP9137PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2

Preview

Download Datasheet

View All

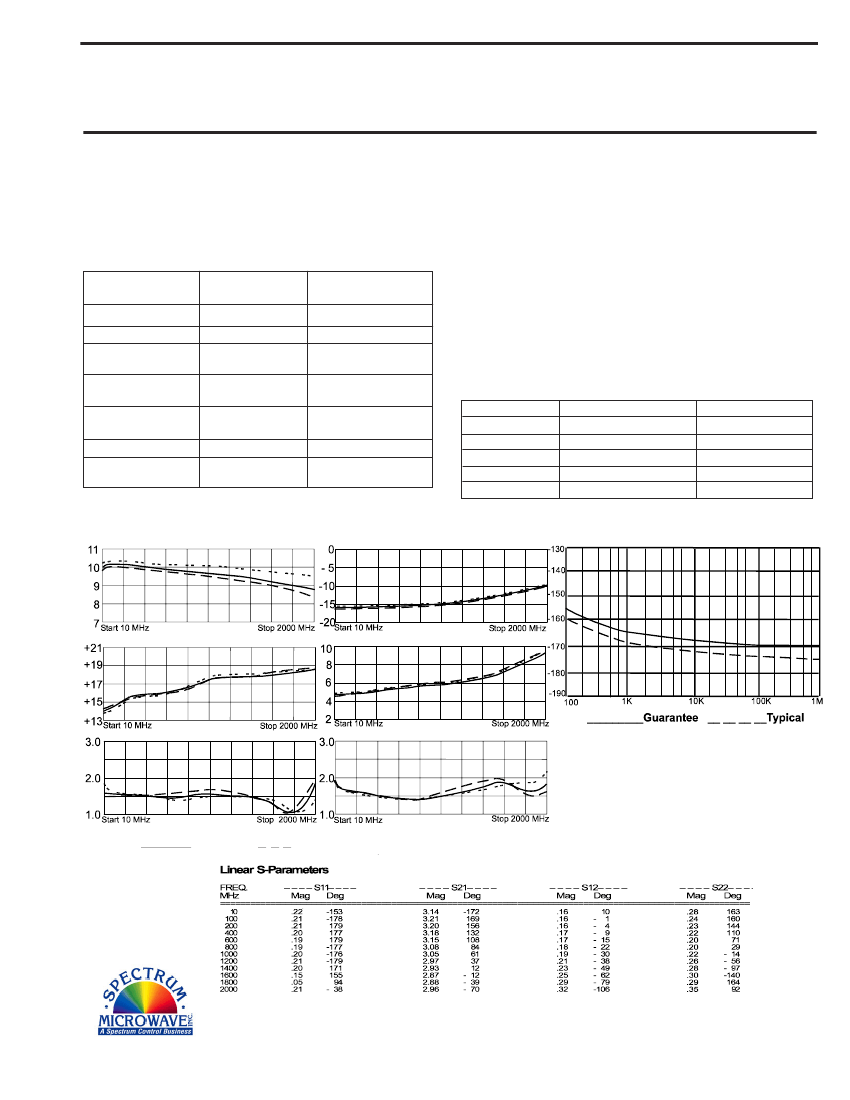

RF AMPLIFIER

MODEL

TM9137PM

Features

Superior Phase Noise Performance

Output Power: +15.5 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9137PM, 4 Pin TO-8 (T4)

TN9137PM, 4 Pin Surface Mount (SM3)

FP9137PM, 4 Pin Flatpack (FP4)

BX9137PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +44 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +38 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +28 dBm (Typ.)

Maximum Ratings

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10 - 2000 MHz

9.5

+15.5

- 9.5

<1.75:1

<1.50:1

6.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 2000 MHz

7.0 Min.

+13.0 Min.

- 8.5 Max.

2.2:1 Max.

10.0 Max.

+15

50 Max.

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-160

-168

-172

-173

-174

Guarantee (min.)

-156

-165

-168

-170

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Noise Figure (dB)

Input VSWR

Output VSWR

Residual Phase Noise Test Conditions:

Carrier Frequency: 600 MHz

Power Output +15.2 dBm

Temperature: 25

Agilent ES5500 System

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9137PM Related Products

	FP9137PM	BX9137PM	TM9137PM	TN9137PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	7 dB	7 dB	7 dB	7 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2	2.2	2.2	2.2
