FP9138PM Overview

RF AMPLIFIER MODEL

FP9138PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	6 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9138PM

Features

Superior Phase Noise Performance

Output Power: +19 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9138PM, 4 Pin TO-8 (T4)

TN9138PM, 4 Pin Surface Mount (SM3)

FP9138PM, 4 Pin Flatpack (FP4)

BX9138PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +46 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +33 dBm (Typ.)

Maximum Ratings

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 2000 MHz

7.5

+19

-9.75

1.8:1

1.5:1

6.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 2000 MHz

6.0 Min.

+16.5 Min.

- 9 Max.

2.2:1 Max.

9.5 Max.

+15

72 Max.

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +18 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-152

-161

-168

-172

Guarantee (min.)

-148

-158

-165

-168

Note: Care should always be taken to effectively ground the case of each unit.

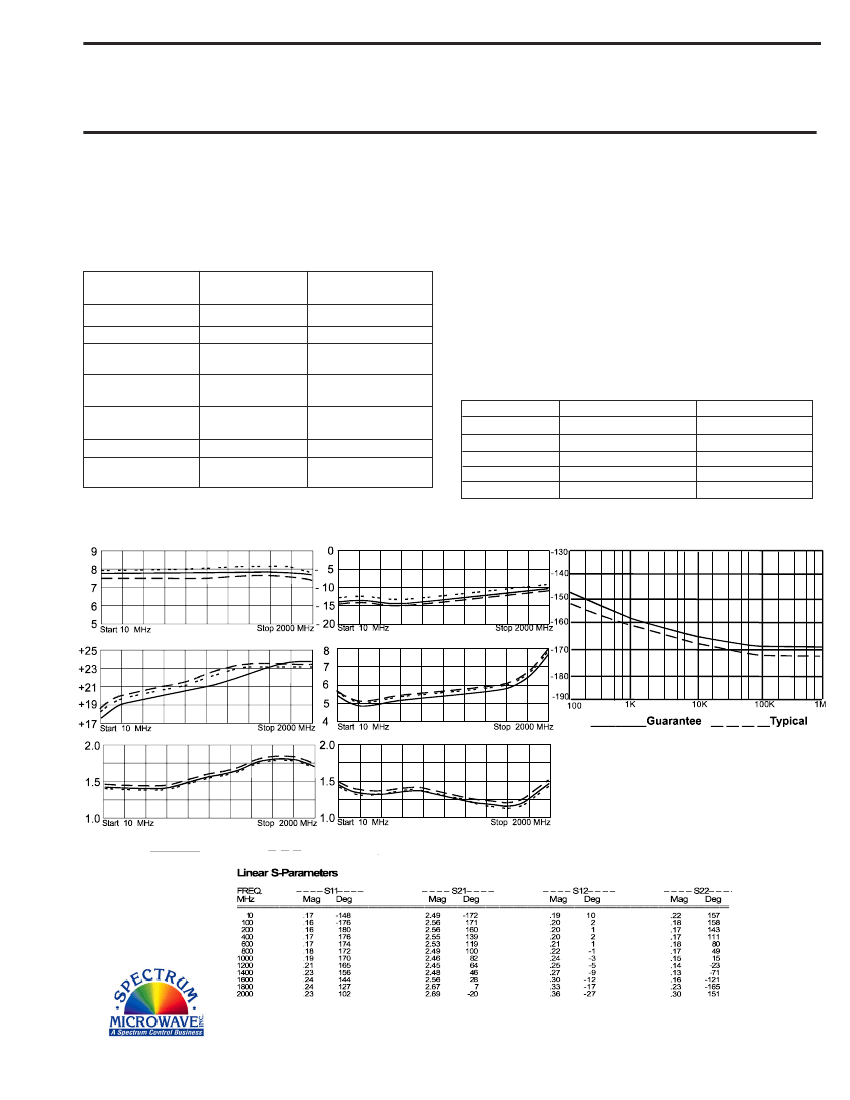

Typical Performance Data

Gain (dB)

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Noise Figure (dB)

Input VSWR

Output VSWR

Agilent ES5500 System

Residual Phase Noise Test Conditions:

Carrier Frequency: 600 MHz

Power Output +16.7 dBm

Temperature: 25

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/1/04

www.SpectrumMicrowave.com
