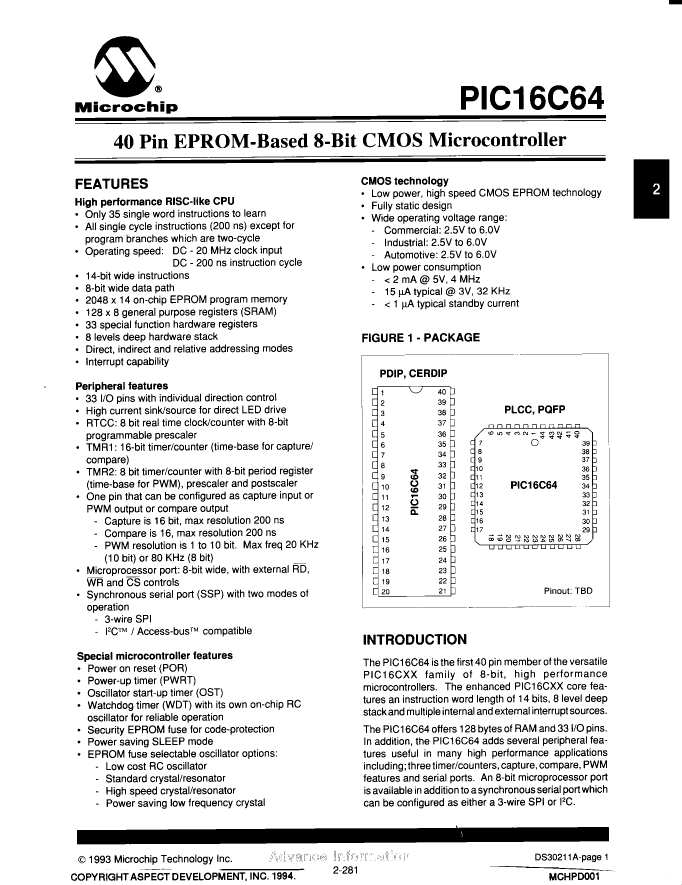

PIC16C64-04E/JN datasheet, PDF

PIC16C64-04E/JN: Description8-BIT, OTPROM, 4 MHz, MICROCONTROLLER, CDIP40, 0.600 INCH, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size67KB，2 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

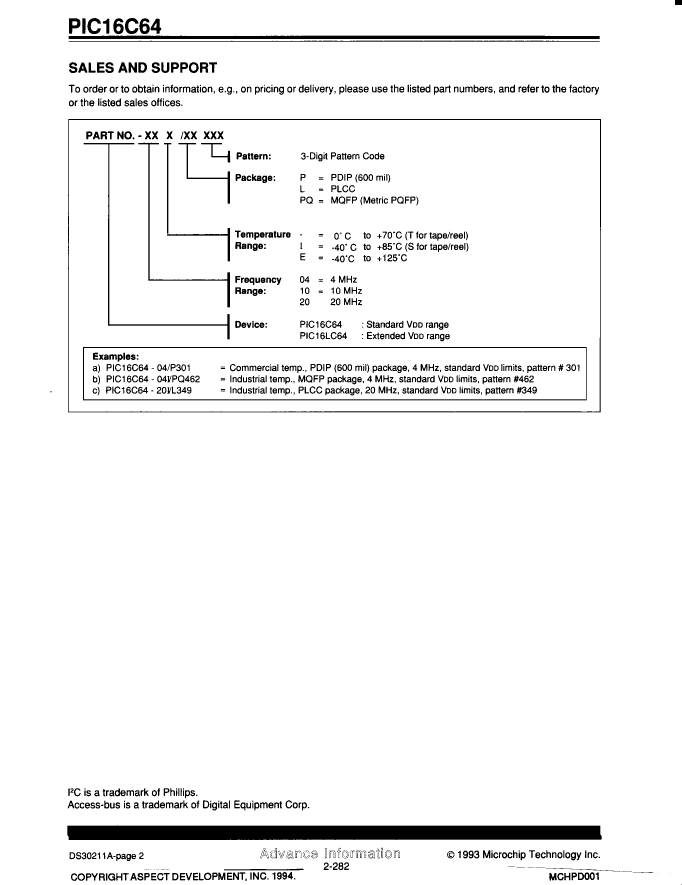

PIC16C64-04E/JN Overview

8-BIT, OTPROM, 4 MHz, MICROCONTROLLER, CDIP40, 0.600 INCH, CERDIP-40

Parameter Name	Attribute value
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Other features	ROM PROTECT
Address bus width
bit size	8
boundary scan	NO
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T40
low power mode	YES
Number of DMA channels
Number of I/O lines	33
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	128
rom(word)	2048
ROM programmability	OTPROM
speed	4 MHz
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
