NM24W09ULM8 datasheet, PDF - EEWORLD Datasheet

NM24W09ULM8: DescriptionEEPROM, 1KX8, Serial, CMOS, PDSO8, PLASTIC, SOIC-8; Categorystorage storage; File Size304KB，13 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

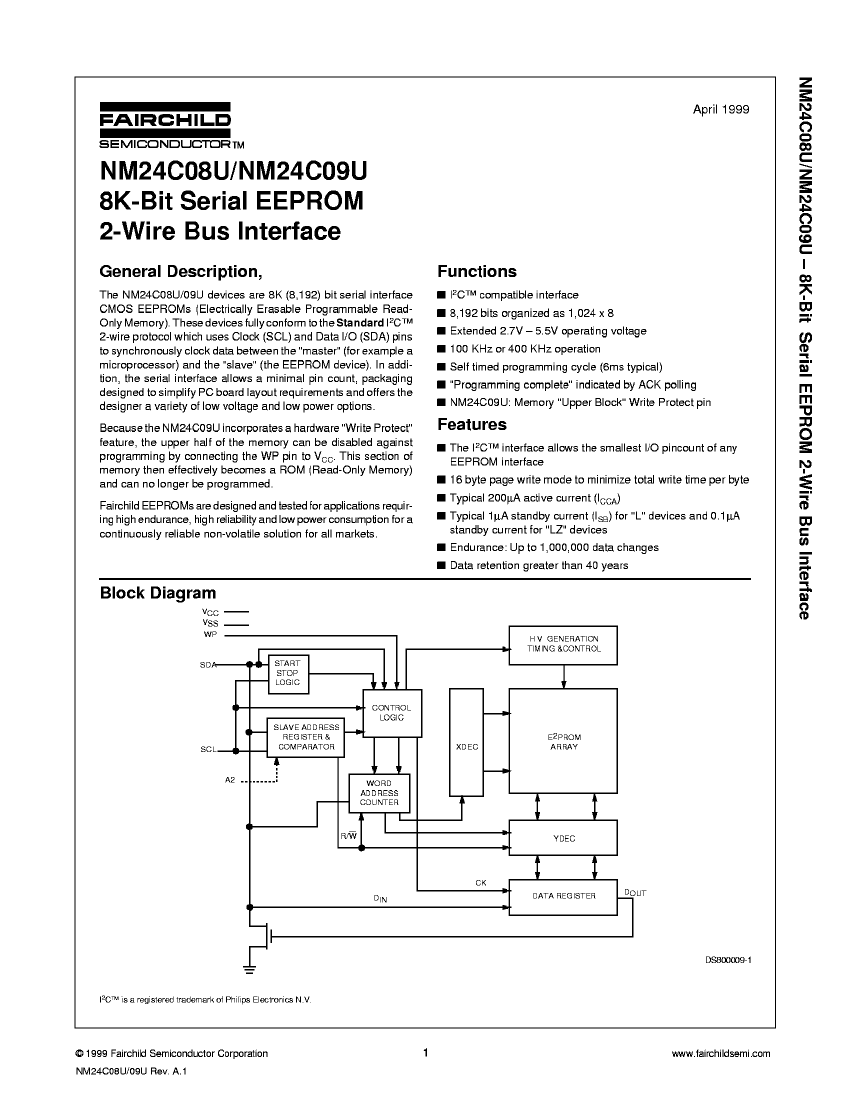

NM24W09ULM8 Overview

EEPROM, 1KX8, Serial, CMOS, PDSO8, PLASTIC, SOIC-8

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOP,

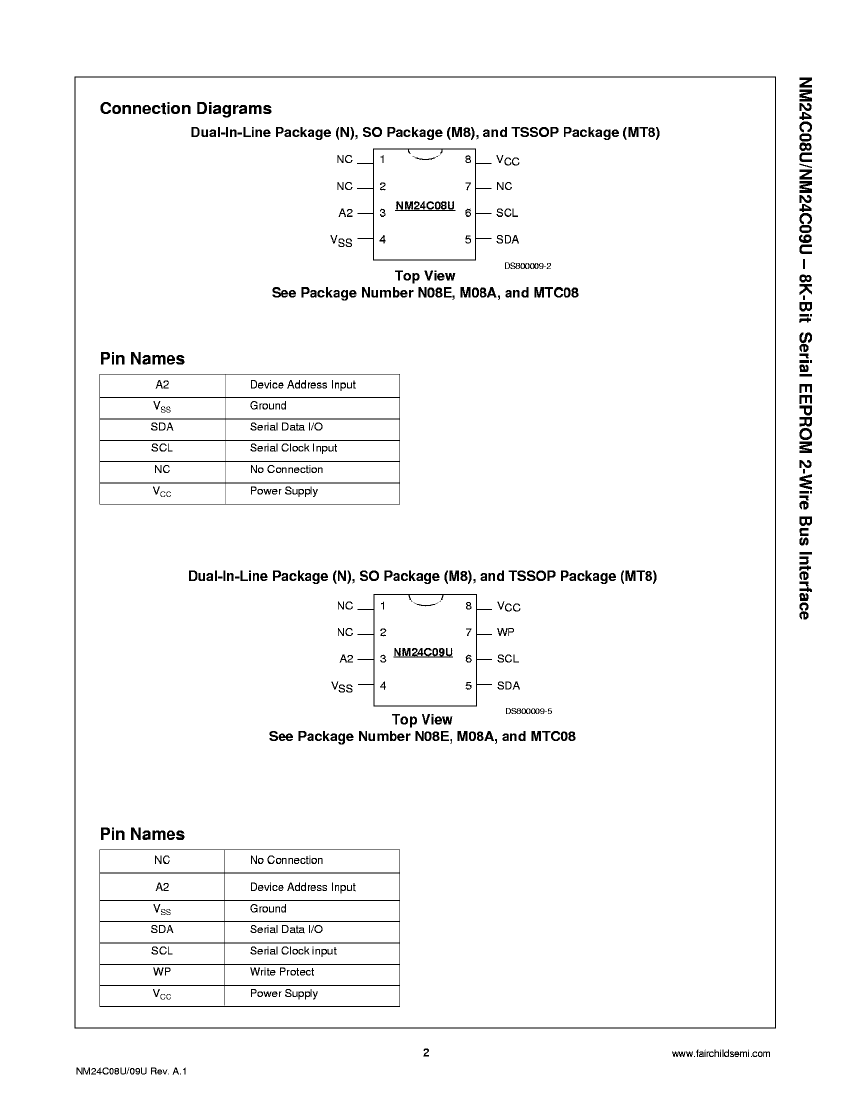

Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION > 40 YEARS; WRITE PROTECT

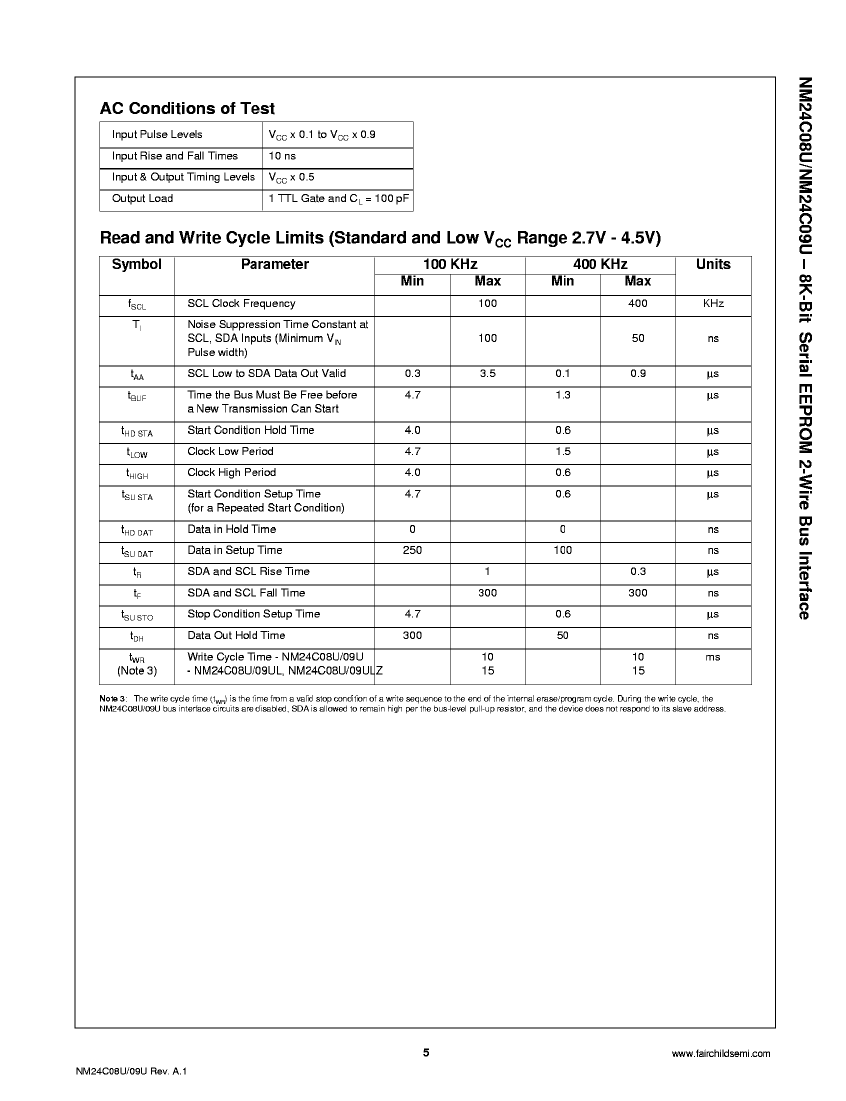

Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	40
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	8192 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	1024 words
character code	1000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C

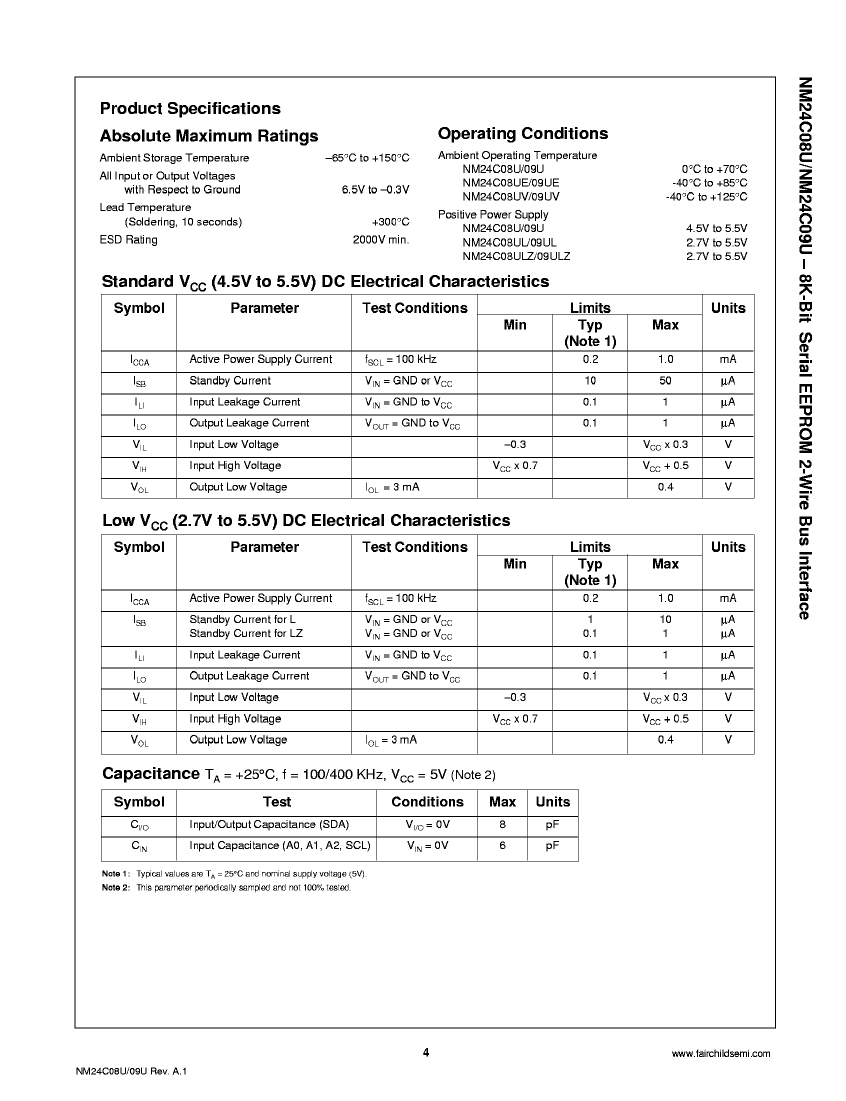

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Maximum write cycle time (tWC)	15 ms
