Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, SOJ-32
FT7C109-20VI Parametric
Parameter Name
Attribute value
Maker
Force Technologies Ltd.
package instruction
SOJ,
Reach Compliance Code
unknown
ECCN code
3A991.B.2.B
Maximum access time
20 ns
JESD-30 code
R-PDSO-J32
length
20.955 mm
memory density
1048576 bit
Memory IC Type
STANDARD SRAM
memory width
8
Number of functions
1
Number of terminals
32
word count
131072 words
character code
128000
Operating mode
ASYNCHRONOUS
Maximum operating temperature
85 °C
Minimum operating temperature
-40 °C
organize
128KX8
Package body material
PLASTIC/EPOXY
encapsulated code
SOJ
Package shape
RECTANGULAR
Package form
SMALL OUTLINE
Parallel/Serial
PARALLEL
Maximum seat height
3.7592 mm
Maximum supply voltage (Vsup)
5.5 V
Minimum supply voltage (Vsup)
4.5 V
Nominal supply voltage (Vsup)
5 V
surface mount
YES
technology
CMOS
Temperature level
INDUSTRIAL
Terminal form
J BEND
Terminal pitch
1.27 mm
Terminal location
DUAL
width
10.16 mm
FT7C109-20VI Preview
009
CY7C109
CY7C1009
128K x 8 Static RAM
Features
• High speed
— t
AA
= 10 ns
• Low active power
— 1017 mW (max., 12 ns)
• Low CMOS standby power
— 55 mW (max.), 4 mW (Low power version)
• 2.0V Data Retention (Low power version)
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE
1
, CE
2
, and OE options
active HIGH chip enable (CE
2
), an active LOW output enable
(OE), and three-state drivers. Writing to the device is accom-
plished by taking chip enable one (CE
1
) and write enable (WE)
inputs LOW and chip enable two (CE
2
) input HIGH. Data on
the eight I/O pins (I/O
0
through I/O
7
) is then written into the
location specified on the address pins (A
0
through A
16
).
Reading from the device is accomplished by taking chip en-
able one (CE
1
) and output enable (OE) LOW while forcing
write enable (WE) and chip enable two (CE
2
) HIGH. Under
these conditions, the contents of the memory location speci-
fied by the address pins will appear on the I/O pins.
The eight input/output pins (I/O
0
through I/O
7
) are placed in a
high-impedance state when the device is deselected (CE
1
HIGH or CE
2
LOW), the outputs are disabled (OE HIGH), or
during a write operation (CE
1
LOW, CE
2
HIGH, and WE LOW).
The CY7C109 is available in standard 400-mil-wide SOJ and
32-pin TSOP type I packages. The CY7C1009 is available in
a 300-mil-wide SOJ package. The CY7C1009 and CY7C109
are functionally equivalent in all other respects.
Functional Description
The CY7C109 / CY7C1009 is a high-performance CMOS stat-
ic RAM organized as 131,072 words by 8 bits. Easy memory
expansion is provided by an active LOW chip enable (CE
1
), an
Logic Block Diagram
Pin Configurations
SOJ
Top View
NC
A
16
A
14
A
12
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
0
I/O
0
I/O
1
I/O
2
GND
A
11
A
9
A
8
A
13
WE
CE
2
A
15
V
CC
NC
A
16
A
14
A
12
A
7
A
6
A
5
A
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
V
CC
A
15
CE
2
WE
A
13
A
8
A
9
A
11
OE
A
10
CE
1
I/O
7
I/O
6
I/O
5
I/O
4
I/O
3
I/O
0
INPUT BUFFER
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
I/O
1
ROW DECODER
I/O
2
SENSE AMPS
512 x 256 x 8
ARRAY
109–2
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
OE
A
10
CE
I/O
7
I/O
6
I/O
5
I/O
4
I/O
3
GND
I/O
2
I/O
1
I/O
0
A
0
A
1
A
2
A
3
109–3
I/O
3
I/O
4
I/O
5
CE
1
CE
2
WE
OE
COLUMN
DECODER
POWER
DOWN
I/O
6
I/O
7
TSOP I
Top View
(not to scale)
A
9
A
10
A
11
A
12
A
13
A
14
A
15
A
16
109–1
Selection Guide
Maximum Access Time (ns)
Maximum Operating Current (mA)
Maximum CMOS Standby Current (mA)
Maximum CMOS Standby Current (mA)
Low Power Version
Shaded areas contain preliminary information.
7C109-10
7C1009-10
10
195
10
2
7C109-12
7C1009-12
12
185
10
2
7C109-15
7C1009-15
15
155
10
2
7C109-20
7C1009-20
20
140
10
—
7C109-25
7C1009-25
25
135
10
—
7C109-35
7C1009-35
35
125
10
—
Cypress Semiconductor Corporation
Document #: 38-05032 Rev. **
•
3901 North First Street
•
San Jose
•
CA 95134 • 408-943-2600
Revised August 24, 2001
CY7C109
CY7C1009
Maximum Ratings
(Above which the useful life may be impaired. For user guide-
lines, not tested.)
Storage Temperature ................................. –65°C to +150°C
Ambient Temperature with
Power Applied............................................. –55°C to +125°C
Supply Voltage on V
CC
to Relative GND
[1]
Static Discharge Voltage ........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current..................................................... >200 mA
Operating Range
Range
Commercial
Industrial
Ambient
Temperature
[2]
0°C to +70°C
−40°C
to +85°C
V
CC
5V
±
10%
5V
±
10%
.... –0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State
[1]
....................................–0.5V to V
CC
+ 0.5V
DC Input Voltage
[1]
................................–0.5V to V
CC
+ 0.5V
Current into Outputs (LOW) .........................................20 mA
Electrical Characteristics
Over the Operating Range
[3]
7C109-10
7C1009-10
Parameter
V
OH
V
OL
V
IH
V
IL
I
IX
I
OZ
I
OS
I
CC
Description
Output HIGH Voltage
Output LOW Voltage
Input HIGH Voltage
Input LOW Voltage
[1]
Input Load Current
Output Leakage
Current
Output Short
Circuit Current
[3]
V
CC
Operating
Supply Current
Automatic CE
Power-Down Current
—TTL Inputs
Automatic CE
Power-Down Current
—CMOS Inputs
GND < V
I
< V
CC
GND < V
I
< V
CC
,
Output Disabled
V
CC
= Max.,
V
OUT
= GND
V
CC
= Max.,
I
OUT
= 0 mA,
f = f
MAX
= 1/t
RC
Max. V
CC
, CE
1
> V
IH
or CE
2
< V
IL
,
V
IN
> V
IH
or
V
IN
< V
IL
, f = f
MAX
Max. V
CC
,
CE
1
> V
CC
– 0.3V,
or CE
2
< 0.3V,
V
IN
> V
CC
– 0.3V,
or V
IN
< 0.3V, f=0
L
Test Conditions
V
CC
= Min.,
I
OH
= –4.0 mA
V
CC
= Min.,
I
OL
= 8.0 mA
2.2
–0.3
–1
–5
Min.
2.4
0.4
V
CC
+ 0.3
0.8
+1
+5
–300
195
2.2
–0.3
–1
–5
Max.
7C109-12
7C1009-12
Min.
2.4
0.4
V
CC
+ 0.3
0.8
+1
+5
–300
185
2.2
–0.3
–1
–5
Max.
7C109-15
7C1009–15
Min.
2.4
0.4
V
CC
+ 0.3
0.8
+1
+5
–300
155
Max.
Unit
V
V
V
V
µA
µA
mA
mA
I
SB1
45
45
40
mA
I
SB2
10
2
10
2
10
2
mA
Shaded areas contain preliminary information.
Document #: 38-05032 Rev. **
Page 2 of 12
CY7C109
CY7C1009
Electrical Characteristics
Over the Operating Range (continued)
7C109-20
7C1009-20
Parameter
V
OH
V
OL
V
IH
V
IL
I
IX
I
OZ
I
OS
I
CC
Description
Output HIGH Voltage
Output LOW Voltage
Input HIGH Voltage
Input LOW Voltage
[1]
Input Load Current
Output Leakage
Current
Output Short
Circuit Current
[3]
V
CC
Operating
Supply Current
Automatic CE
Power-Down Current
—TTL Inputs
Automatic CE
Power-Down Current
—CMOS Inputs
GND < V
I
< V
CC
GND < V
I
< V
CC
,
Output Disabled
V
CC
= Max.,
V
OUT
= GND
V
CC
= Max.,
I
OUT
= 0 mA,
f = f
MAX
= 1/t
RC
Max. V
CC
, CE
1
> V
IH
or CE
2
< V
IL
,
V
IN
> V
IH
or
V
IN
< V
IL
, f = f
MAX
Max. V
CC
,
CE
1
> V
CC
– 0.3V,
or CE
2
< 0.3V,
V
IN
> V
CC
– 0.3V,
or V
IN
< 0.3V, f=0
Test Conditions
V
CC
= Min.,
I
OH
= –4.0 mA
V
CC
= Min.,
I
OL
= 8.0 mA
2.2
–0.3
–1
–5
Min.
2.4
0.4
V
CC
+ 0.3
0.8
+1
+5
–300
140
2.2
–0.3
–1
–5
Max.
7C109-25
7C1009-25
Min.
2.4
0.4
V
CC
+ 0.3
0.8
+1
+5
–300
135
2.2
–0.3
–1
–5
Max.
7C109-35
7C1009-35
Min.
2.4
0.4
V
CC
+ 0.3
0.8
+1
+5
–300
125
Max.
Unit
V
V
V
V
µA
µA
mA
mA
I
SB1
30
30
25
mA
I
SB2
10
10
10
mA
Capacitance
[4]
Parameter
C
IN
C
OUT
Description
Input Capacitance
Output Capacitance
Test Conditions
T
A
= 25°C, f = 1 MHz,
V
CC
= 5.0V
Max.
9
8
Unit
pF
pF
Notes:
1. V
IL
(min.) = –2.0V for pulse durations of less than 20 ns.
2. T
A
is the “instant on” case temperature.
3. Not more than one output should be shorted at one time. Duration of the short circuit should not exceed 30 seconds.
4. Tested initially and after any design or process changes that may affect these parameters.

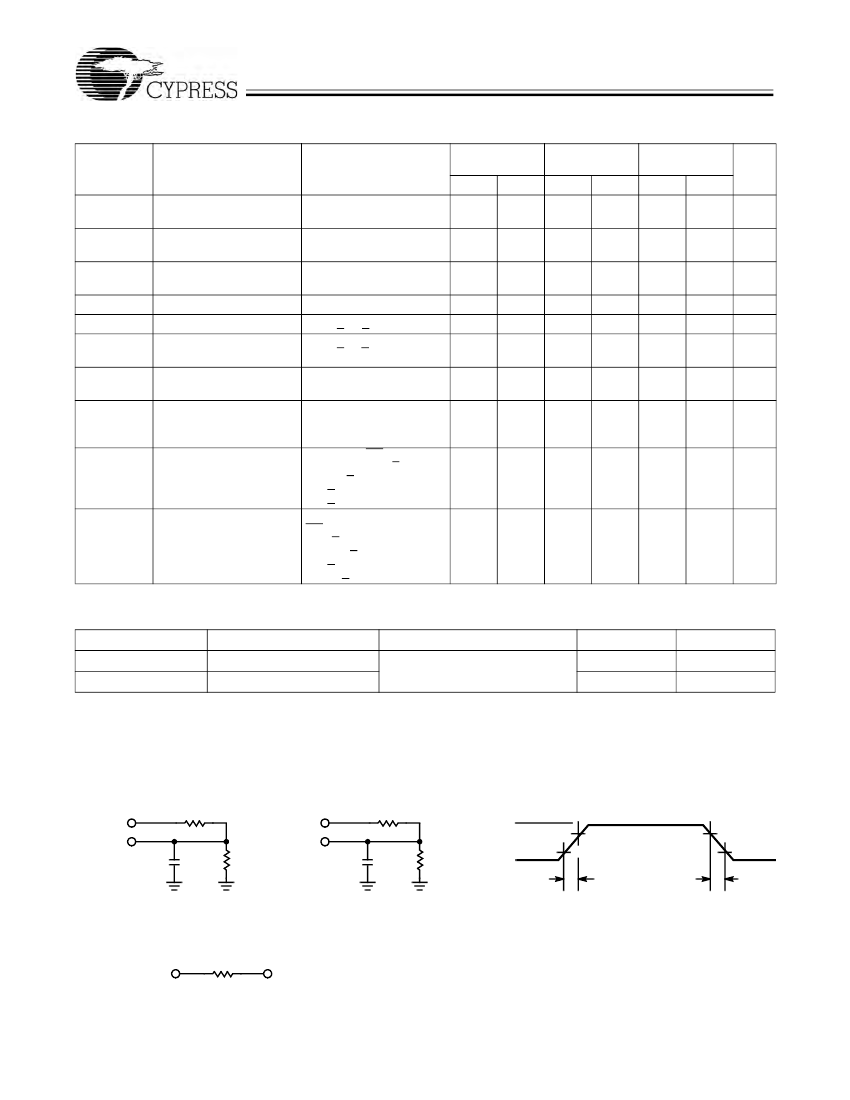

AC Test Loads and Waveforms
5V
OUTPUT
30 pF
INCLUDING
JIG AND
SCOPE
(a)
R2
255
Ω
R1 480
Ω
R1 480
Ω
5V
OUTPUT
5 pF
INCLUDING
JIG AND
SCOPE
(b)
R2
255
Ω
GND
3.0V
90%
10%
90%
10%
ALL INPUT PULSES
≤
3ns
≤
3 ns
109–3
109–4
Equivalent to:
THÉVENIN EQUIVALENT
167
Ω
1.73V
OUTPUT
Document #: 38-05032 Rev. **
Page 3 of 12
CY7C109
CY7C1009
Switching Characteristics
[3, 5]
Over the Operating Range
Min.
10
3
t
ACE
t
DOE
t
LZOE
t
HZOE
t
LZCE
t
HZCE
t
PU
t
PD
CE
1
LOW to Data Valid, CE
2
HIGH to Data
Valid
OE LOW to Data Valid
OE LOW to Low Z
OE HIGH to High Z
[6, 7]
CE
1
LOW to Low Z, CE
2
HIGH to Low Z
[7]
CE
1
HIGH to High Z, CE
2
LOW to High Z
[6, 7]
CE
1
LOW to Power-Up, CE
2
HIGH to
Power-Up
CE
1
HIGH to Power-Down, CE
2
LOW to
Power-Down
Write Cycle Time
CE
1
LOW to Write End, CE
2
HIGH to Write End
Address Set-Up to Write End
Address Hold from Write End
Address Set-Up to Write Start
WE Pulse Width
Data Set-Up to Write End
Data Hold from Write End
WE HIGH to Low Z
[7]
WE LOW to High Z
[6, 7]
10
8
8
0
0
8
6
0
3
5
0
10
3
5
0
12
0
5
3
6
0
15
10
5
0
6
3
7
3
12
6
0
7
3
15
7
ns
ns
ns
ns
ns
ns
ns
ns
ns
WRITE CYCLE
[8,9]
t
WC
t
SCE
t
AW
t
HA
t
SA
t
PWE
t
SD
t
HD
t
LZWE
t
HZWE
12
10
10
0
0
10
7
0
3
6
15
12
12
0
0
12
8
0
3
7
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Shaded areas contain preliminary information.
Notes:
5. Test conditions assume signal transition time of 3 ns or less, timing reference levels of 1.5V, input pulse levels of 0 to 3.0V, and output loading of the specified
I
OL
/I
OH
and 30-pF load capacitance.
6. t
HZOE
, t
HZCE
, and t
HZWE
are specified with a load capacitance of 5 pF as in part (b) of AC Test Loads. Transition is measured
±
500 mV from steady-state voltage.
7. At any given temperature and voltage condition, t
HZCE
is less than t
LZCE
, t
HZOE
is less than t
LZOE
, and t
HZWE
is less than t
LZWE
for any given device.
8. The internal write time of the memory is defined by the overlap of CE
1
LOW, CE
2
HIGH, and WE LOW. CE
1
and WE must be LOW and CE
2
HIGH to initiate a write,
and the transition of any of these signals can terminate the write. The input data set-up and hold timing should be referenced to the leading edge of the signal that terminates
the write.
9. The minimum write cycle time for Write Cycle no. 3 (WE controlled, OE LOW) is the sum of t
Are you still squeezing toothpaste manually every day? The amount of toothpaste squeezed out is either too much or too little each time? When the toothpaste is almost used up, the toothpaste in the to...
According to the circuit below, I want to connect a 9V directly to Vbus in my system. Will this chip output normally and charge the battery?
Do I need to give specific signals to the D+ and D- signals...
I developed a DLL, and then wrote an application to call this DLL. I know for sure that this application is correct. But there is a problem with the DLL. In my DLL project, I set the deploy device opt...
introduction
With the continuous optimization of surface mount technology (SMT) and the rapid development of chip component manufacturing technology, the application of chip mounters in the el...[Details]
This article discusses how to wake up a touch-sensitive device such as a tablet without touching the device, using basic gesture recognition and novel proximity sensors. The article discusses the p...[Details]
1. Introduction
Automobile pollution is one of the most important issues that people are most concerned about and need to solve urgently. As an important method for detecting automobile exhau...[Details]
In this article, the high-performance DSP developed by TI can be used as an effective confidentiality method if it is applied to PC encryption cards.
As an effective network security solution,...[Details]
In public places such as schools, government agencies, factories and mines, as well as public corridors in residential areas, the phenomenon of long-burning lights is very common, which causes a h...[Details]
1. What is temperature?
Heat is a type of molecular motion. The hotter an object is, the faster its molecules move. Absolute zero is defined as the temperature at which all molecular motion ...[Details]
Contact resistance
is the resistance to current flow through a closed pair of contacts. This type of measurement is performed on devices such as connectors,
relays
, and switches. The...[Details]
1 Introduction
Intelligent control instruments are one of the most commonly used controllers in industrial control. They are mainly aimed at a specific parameter (such as pressure, tempera...[Details]
1 Introduction to HART Protocol
HART (Highway Addressable Remote Transducer), an open communication protocol for addressable remote sensor high-speed channels, was launched by Rosemen in the U...[Details]
With the widespread application of new services and technologies in the communications industry, the scale and capacity of operators' network construction are getting larger and larger, and the ris...[Details]
Since the late 1990s, with the demand for higher system efficiency and lower power consumption, the technological update of telecommunications and data communication equipment has promoted the deve...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
At present, a large number of cooling tower fans, speed fans and special fans are in use in petroleum, chemical, pharmaceutical, metallurgical and other enterprises. Some fans have no monitoring in...[Details]
Our flight had just begun to descend when a gentleman sitting next to me turned to talk to me about engineering—he had seen me reading an engineering journal. The gentleman next to me said that he ...[Details]
Creative Market
京公网安备 11010802033920号
EEWORLD
