FP9302 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9302

FP9302: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size42KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9302 Overview

RF AMPLIFIER MODEL

FP9302 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=20DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	9 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	2300 MHz
Minimum operating frequency	1700 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

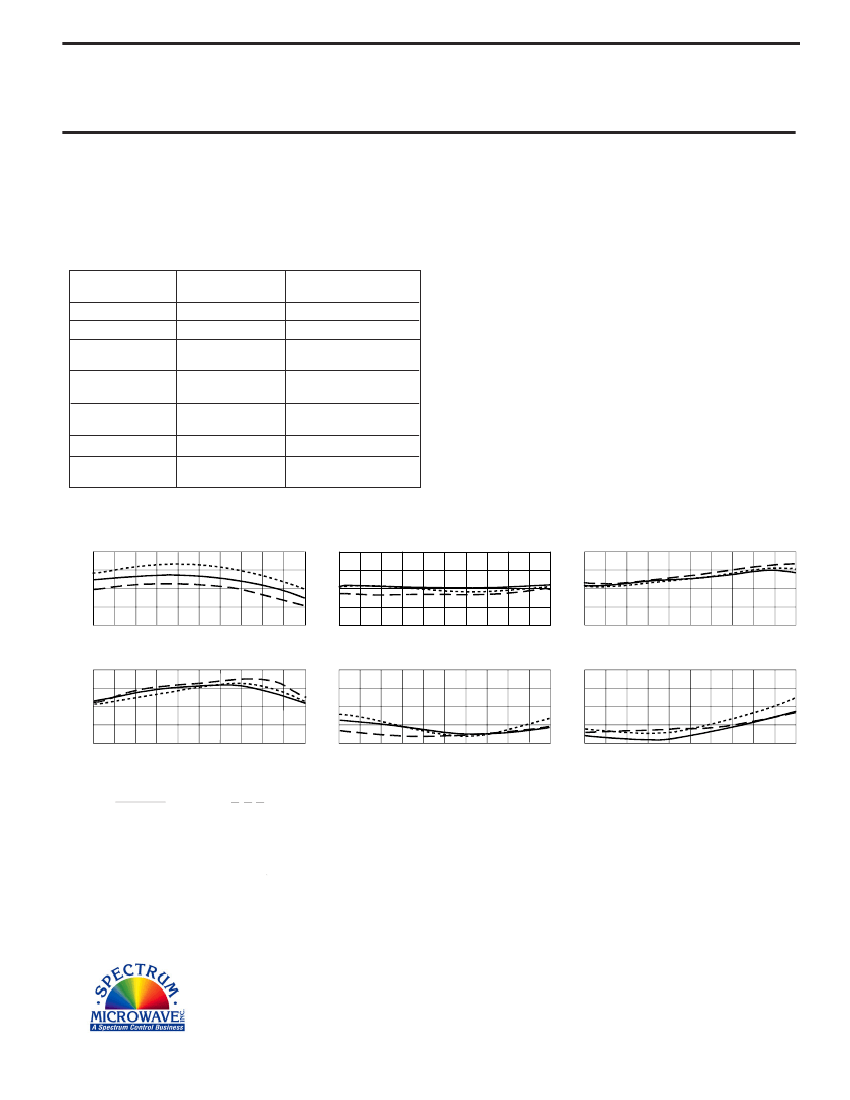

RF AMPLIFIER

MODEL

TM9302

Features

Output Power: +10 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9302, 4 Pin TO-8 (T4)

TN9302, 4 Pin Surface Mount (SM3)

FP9302, 4 Pin Flatpack (FP4)

BX9302, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+34 dBm (Typ.)

Second Order Two Tone Intercept Point.........+28 dBm (Typ.)

Third Order Two Tone Intercept Point.............+22 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25

ºC

1700 - 2300 MHz

10.5

+10

-13

1.75:1

1.5:1

4.0

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

1700 - 2300 MHz

9 Min.

+9 Min.

-12 Max.

2.0:1 Max.

5.5 Max.

+15 Max.

24 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.1 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 1700 MHz

Stop 2300 MHz

Gain (dB)

- 10

- 12

- 14

- 16

- 18

Reverse Isolation (dB)

Noise Figure (dB)

Start 1700 MHz

Stop 2300 MHz

Start 1700 MHz

Stop 2300 MHz

+12

+11

+10

+ 9

+ 8

1 dB Comp. (dBm)

3.0

2.5

2.0

1.5

1.0

Input VSWR

3.0

2.5

2.0

1.5

1.0

Output VSWR

Start 1700 MHz

Stop 2300 MHz

Start 1700 MHz

Stop 2300 MHz

Start 1700 MHz

Stop 2300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

MHz

=========================================================================================================

.20

1700

.27

3.81

- 19

- 11

.16

.20

1800

.22

3.86

- 21

- 39

.12

.20

1900

.17

3.90

- 23

- 80

.10

.19

2000

.13

3.93

- 22

-130

.10

.20

2100

.13

3.84

- 21

-167

.13

-13

.21

2200

.16

3.69

- 22

164

.17

-26

.21

2300

.23

3.43

- 23

140

.21

-39

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/04/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9302 Related Products

	FP9302	BX9302	TM9302	TN9302
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	2300 MHz	2300 MHz	2300 MHz	2300 MHz
Minimum operating frequency	1700 MHz	1700 MHz	1700 MHz	1700 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
