FP9316 Overview

RF AMPLIFIER MODEL

FP9316 Parametric

Parameter NameAttribute value
MakerAPI Technologies
package instructionFP-4
Reach Compliance Codecompli
Other featuresI/P POWER-MAX (PEAK)=27DBM
Characteristic impedance50 Ω
structureCOMPONENT
Gain12 dB
Maximum input power (CW)13 dBm
Maximum operating frequency1200 MHz
Minimum operating frequency10 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2

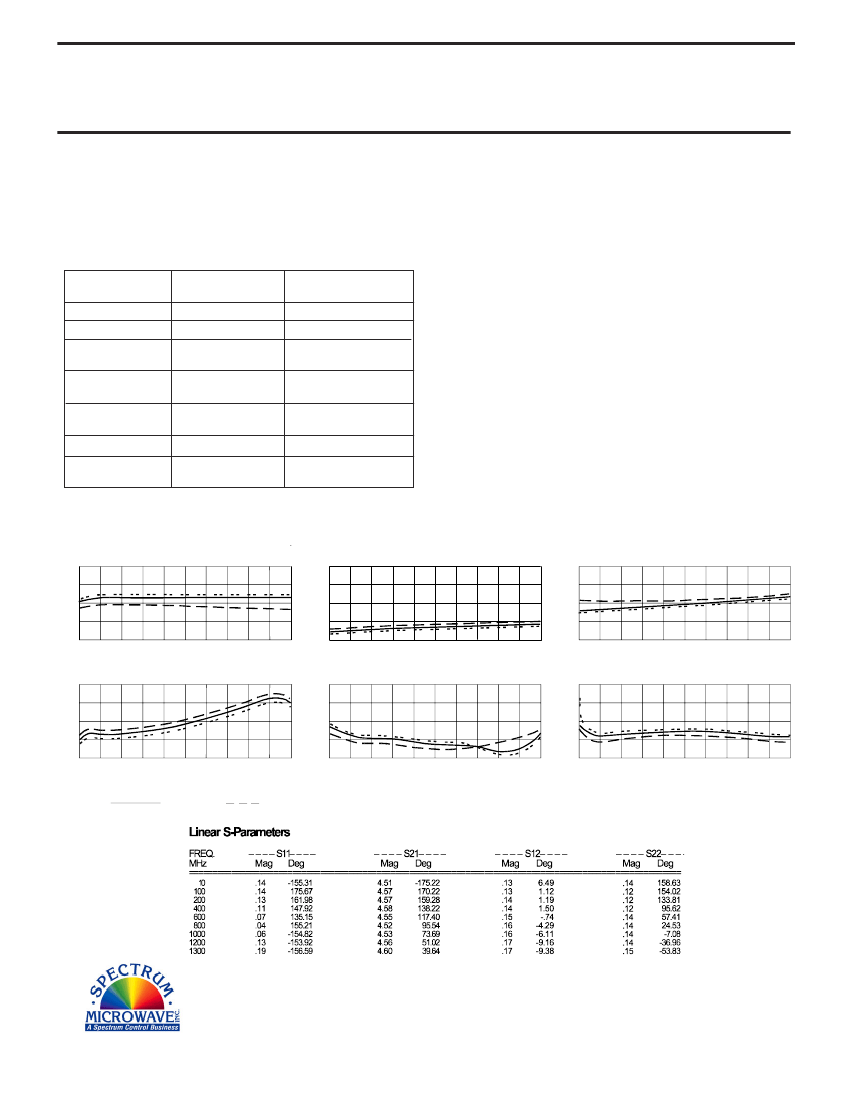

RF AMPLIFIER
MODEL
TM9316
Features
!
!
!
!
Low 5 Volt Operation
Low Noise: 3.0 dB Typical
Operating Temp. - 55 ºC
to +85
ºC
Environmental Screening Available
Available as:
TM9316, 4 Pin TO-8 (T4)
TN9316, 4 Pin Surface Mount (SM3)
FP9316, 4 Pin Flatpack (FP4)
BX9316, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point........+33 dBm (Typ.)
Second Order Two Tone Intercept Point.........+28 dBm (Typ.)
Third Order Two Tone Intercept Point.............+19 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
5 - 1300 MHz
13
+6
-16
1.25:1
1.35:1
3
+5
15
MIN/MAX
Ta = -55 ºC to +85 ºC
5 - 1200 MHz
12
Min.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ........................................................... + 8 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power.................... 0.5 Watt (3
µsec
Max.)
+4.5 Min.
-14 Max.
2.0:1 Max.
2.0:1 Max.
4
Max.
+5
18
Max.
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Gain (dB)
15
14
13
12
11
Start 5 MHz
Stop 1300 MHz
Reverse Isolation (dB)
0
- 5
- 10
- 15
- 20
Start 5 MHz
Stop 1300 MHz
Noise Figure (dB)
4
3
2
Start 5 MHz
Stop 1300 MHz
1 dB Comp. (dBm)
+12
+10
+ 8
+ 6
+ 4
Start 5 MHz
Stop 1300 MHz
Input VSWR
2.0
1.5
1.0
Start 5 MHz
Stop 1300 MHz
Output VSWR
2.0
1.5
1.0
Start 5 MHz
Stop 1300 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
04/01/05
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
