Part Number

Search

FP9327

Description
10 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER
CategoryWireless rf/communication    Radio frequency and microwave
File Size83KB,1 Pages
ManufacturerAPI Technologies
Websitehttp://www.apitech.com/about-api
Download Datasheet Parametric Compare View All

FP9327 Overview

10 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER

FP9327 Parametric

Parameter NameAttribute value
MakerAPI Technologies
package instructionFP-4
Reach Compliance Codecompli
Other featuresI/P POWER-MAX (PEAK)=27DBM
Characteristic impedance50 Ω
structureCOMPONENT
Gain13 dB
Maximum input power (CW)13 dBm
Maximum operating frequency2000 MHz
Minimum operating frequency10 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2

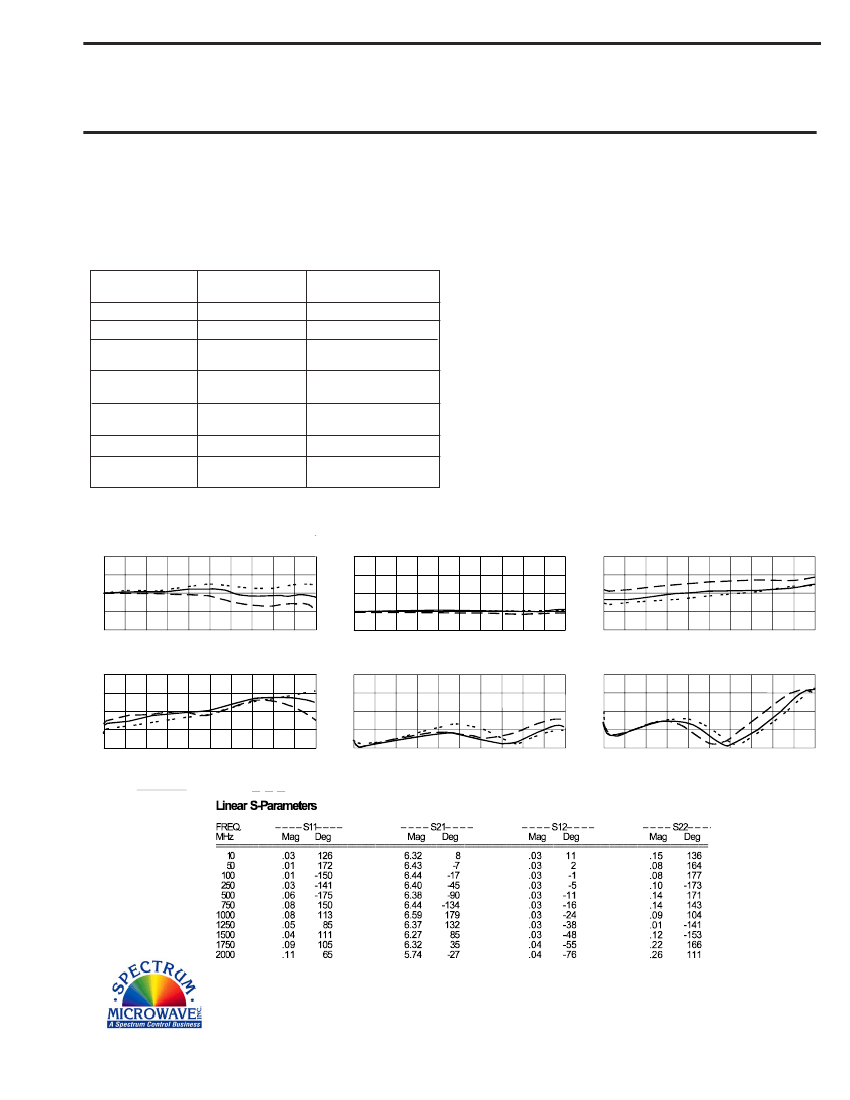

RF AMPLIFIER
MODEL
TM9327
Features
!
!
!
!
Medium Gain: 15 dB Typical
Medium Output Power: +17.5 dBm Typical
Operating Temp. -55 ºC
to +85
ºC
Environmental Screening Available
Available as:
TM9327, 4 Pin TO-8 (T4)
TN9327, 4 Pin Surface Mount (SM3)
FP9327, 4 Pin Flatpack (FP4)
BX9327, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ...... +44 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +38 dBm (Typ.)
Third Order Two Tone Intercept Point ............+29 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25
ºC
10 - 2000 MHz
15
+17.5
-27.5
<1.25:1
<1.5:1
<6.5
+15
108
MIN/MAX
Ta = -55
ºC
to +85
ºC
10 - 2000 MHz
13.0 Min.
+16.0 Min.
-26.0 Max.
2.0:1 Max.
2.0:1 Max.
7.5 Max.
+15
118 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power.......50 Milliwatts (1 Minute Max.)
Maximum Peak Power ................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
18
17
16
15
14
Start 10 MHz
Stop 2000 MHz
Gain (dB)
0
- 10
- 20
- 30
- 40
Reverse Isolation (dB)
8
7
6
5
4
Start 10 MHz
Stop 2000 MHz
Noise Figure (dB)
Start 10 MHz
Stop 2000 MHz
+23
+21
+19
+17
+15
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Start 10 MHz
Stop 2000 MHz
Start 10 MHz
Stop 2000 MHz
Start 10 MHz
Stop 2000 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
3/19/03
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9327 Related Products

FP9327 BX9327 TM9327 TN9327
Description 10 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER 10 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER 10 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER 10 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER
structure COMPONENT COAXIAL COMPONENT COMPONENT
Gain 13 dB 13 dB 13 dB 13 dB
Maximum operating frequency 2000 MHz 2000 MHz 2000 MHz 2000 MHz
Minimum operating frequency 10 MHz 10 MHz 10 MHz 10 MHz
Maximum operating temperature 85 °C 85 °C 85 °C 85 Cel
Minimum operating temperature -55 °C -55 °C -55 °C -55 Cel
Maximum voltage standing wave ratio 2 2 2 2
Reach Compliance Code compli compli compli -
Other features I/P POWER-MAX (PEAK)=27DBM SMA-F, I/P POWER-MAX (PEAK)=27DBM I/P POWER-MAX (PEAK)=27DBM -
Maximum input power (CW) 13 dBm 13 dBm 13 dBm -
RF/Microwave Device Types WIDE BAND LOW POWER WIDE BAND LOW POWER WIDE BAND LOW POWER -
