FP9327PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size138KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9327PM Overview

RF AMPLIFIER MODEL

FP9327PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9327PM

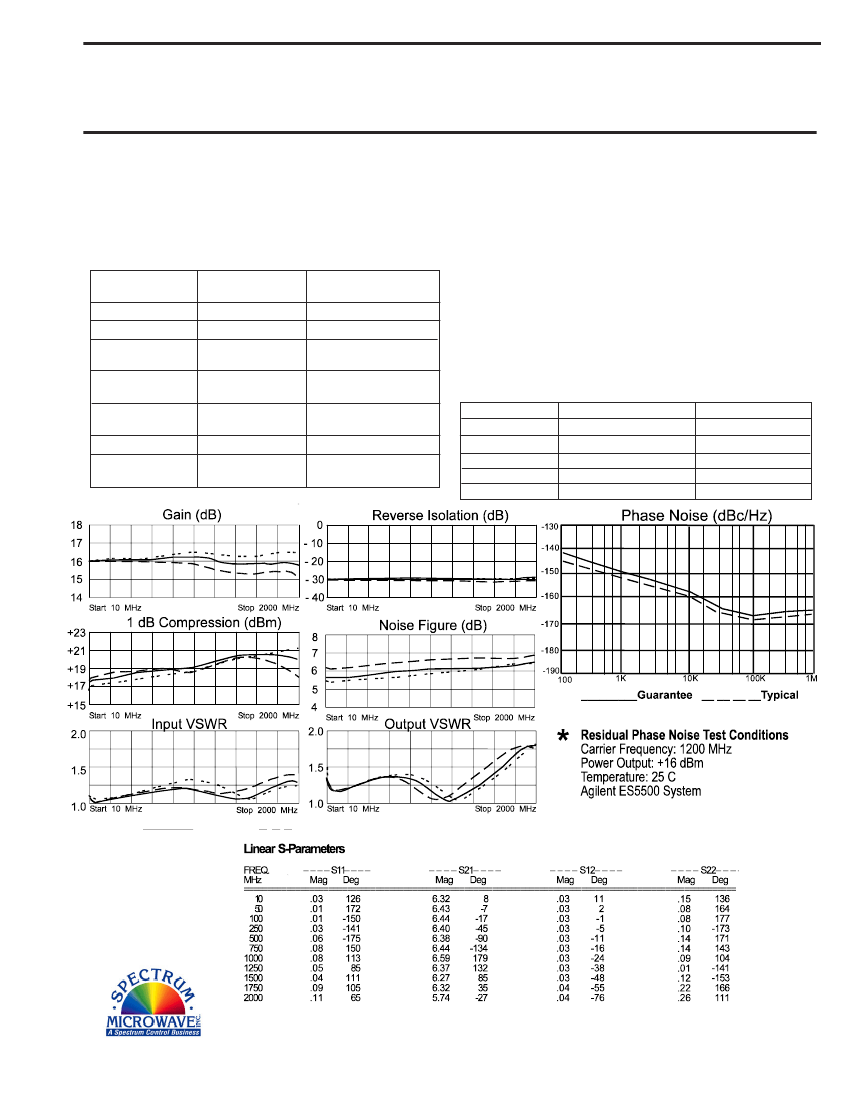

Features

Superior Phase Noise Performance

Wide 10-2000 MHz Bandwidth

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM9327PM, 4 Pin TO-8 (T4)

TN9327PM, 4 Pin Surface Mount (SM3)

FP9327PM, 4 Pin Flatpack (FP4)

BX9327PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +44 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +38 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +29 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10-2000 MHz

17.5

-27.5

<1.25:1

<1.5:1

<6.5

+15

108

MIN/MAX

Ta = -55 ºC to +85 ºC

10-2000 MHz

13 Min.

16 Min.

-26 Max.

2.0:1

7.5 Max.

+15

118 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-145

-152

-160

-168

-166

Guarantee

-141

-149

-156

-164

-163

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/1/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9327PM Related Products

	FP9327PM	BX9327PM	TM9327PM	TN9327PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	13 dB	13 dB	13 dB	13 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	-	API Technologies
