FP9329: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9329 Overview

RF AMPLIFIER MODEL

FP9329 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	7.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

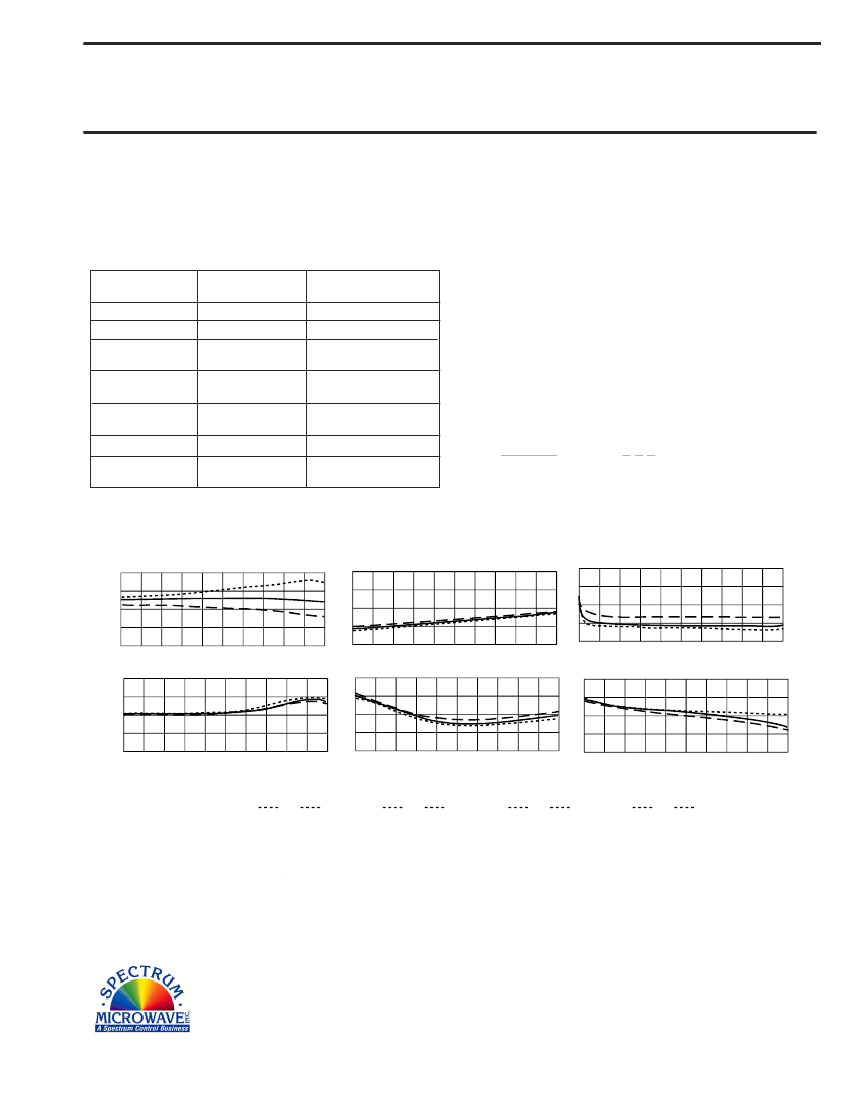

RF AMPLIFIER

MODEL

TM9329

Features

!

High Output Power: +20 dBm Typical

!

Operating Temp. -55ºC to + 85 ºC

!

Environmental Screening Available

Available as:

TM9329, 4 Pin TO-8 (T4)

TN9329, 4 Pin Surface Mount (SM3)

FP9329, 4 Pin Flatpack (FP4)

BX9329, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+41 dBm (Typ.)

Second Order Two Tone Intercept Point.........+36 dBm (Typ.)

Third Order Two Tone Intercept Point.............+30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise figure (dB)

Power

Vdc

mA

VSWR

TYPICAL

Ta= 25 ºC

10 - 1500 MHz

9.5

+20

-11

<1.75:1

*4.0

+15

90

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1500 MHz

8

Min.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

+19 Min.

-10 Max.

2.0:1 Max.

*8.0 Max.

+15 Min.

95 Max.

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Note: Care should always be taken to effectively ground the case of each unit.

* Noise Figure is higher for frequencies below 30 MHz.

Typical Performance Data

11

10

9

8

7

Start 10 MHz

Stop 1500 MHz

Gain (dB)

0

- 5

- 10

- 15

- 20

Reverse Isolation (dB)

10

8

6

4

2

Noise Figure (dB)

Start 10 MHz

Stop 1500 MHz

Start 10 MHz

Stop 1500 MHz

+24

+22

+20

+18

+16

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 1500 MHz

Start 10 MHz

Stop 1500 MHz

Start 10 MHz

Stop 1500 MHz

Linear S-Parameters

FREQ.

S11

Deg.

MHz

Mag.

10

100

200

400

600

800

1000

1200

1500

.13

.09

.08

.07

.08

-30

-14

-21

-38

-55

-71

-94

-107

-136

S21

Mag.

Deg.

Mag.

3.02

3.20

3.18

3.17

3.16

3.19

3.20

3.26

-172

175

169

157

145

134

122

110

92

.135

.142

.141

.142

.141

.138

.135

.132

.131

S12

Deg.

6

4

8

15

25

33

43

51

64

S22

Mag.

Deg.

165

168

163

149

138

129

114

107

88

.16

.11

.10

.09

.10

========================================================================================

-

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

03/07/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9329 Related Products

	FP9329	BX9329	TM9329	TN9329
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	7.5 dB	7.5 dB	7.5 dB	7.5 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	1500 MHz	1500 MHz	1500 MHz	1500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
