FP9329PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9329PM

FP9329PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9329PM Overview

RF AMPLIFIER MODEL

FP9329PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	8.5 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

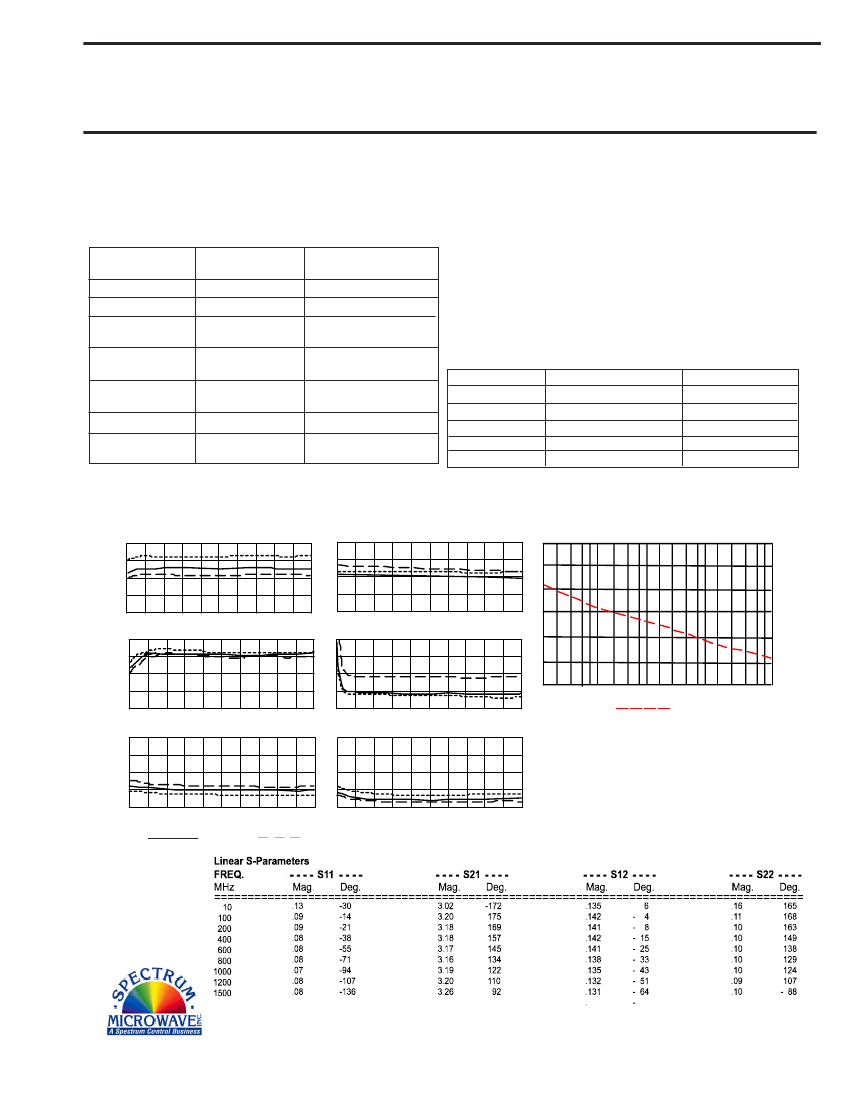

RF AMPLIFIER

MODEL

TM9329PM

Features

Superior Phase Noise Performance

High Output Power + 20 dBm Typical

High Third Order Intercept: +39 dBm Typical

Operating Temp. -55

C to +85

TYPICAL

Ta= 25 ºC

10 - 1500 MHz

9.5

+20.0

-16

<1.5:1

*4.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1500 MHz

8.5 Min.

+19.0 Min.

-15 Max.

2.0:1

*8.0 Max.

+15

95 Max.

Available as:

TM9329PM, 4 Pin TO-8 (T4)

TN9329PM, 4 Pin Surface Mount (SM3)

FP9329PM, 4 Pin Flatpack (FP4)

BX9329PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +53 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +48 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +39 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ............... -55ºC to +100 ºC

Storage Temperature ................................ -62ºC to +125 ºC

Case Temperature ................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +20 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Guaranteed @

25 ºC

(600 MHz) Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-147

-157

-165

-173

-177

Guarantee (Min.)

-143

-153

-161

-169

-173

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

* NOISE FIGURE IS HIGHER FOR FREQUENCIES BELOW 50 MHZ

*Note: Phase Noise Performance typically tested at midband.

Bandedge performance may vary.

Typical Performance Data

Start 10 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Sto p 150 0 MHz

Reverse Isolation (dB)

-130

-1 40

-1 50

-1 60

Start 10 MHz

Phase Noise (dBc/Hz)

+24

+22

+20

+18

+16

1 dB Comp. (dBm)

Noise Figure (dB)

Stop 1500 MHz

-1 70

-1 80

-190

100

1 0K

100K

Typical

Start 10 MHz

2.0

1.5

1.0

Start 10 MHz

Input VSWR

Stop 15 00 MHz

2.0

1.5

1.0

Stop 1500 MHz

Start 10 MHz

Output VSWR

Stop 1 500 MH z

Phase Noise Test Conditions:

Carrier Frequency: 600 MHz

Power Output: +19.5 dBm

emperature: 25 ºC

Agilent ES5500 System

Stop 1500 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/1/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9329PM Related Products

	FP9329PM	BX9329PM	TM9329PM	TN9329PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	8.5 dB	8.5 dB	8.5 dB	8.5 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	1500 MHz	1500 MHz	1500 MHz	1500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
package instruction	FP-4	H1	-	SM3, 4 PIN
