FP9333 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9333

FP9333: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9333 Overview

RF AMPLIFIER MODEL

FP9333 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

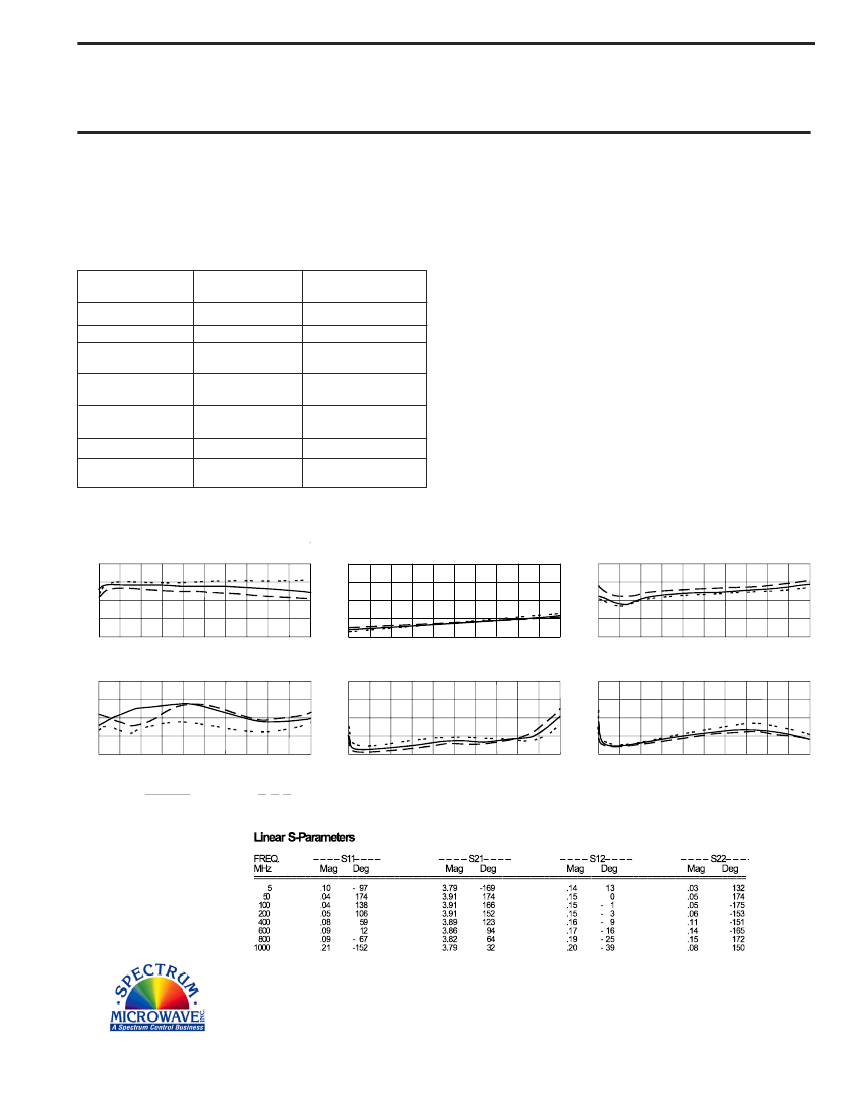

RF AMPLIFIER

MODEL

TM9333

Features

Medium Gain: 11.5 dB Typical

Medium Output Power: +16 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9333, 4 Pin TO-8 (T4)

TN9333, 4 Pin Surface Mount (SM3)

FP9333, 4 Pin Flatpack (FP4)

BX9333, Connectorized Housing (H1)

PN9333,

Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25

Second Order Harmonic Intercept Point ...... +50 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +44 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 1000 MHz

11.5

+16.0

-15

<1.25:1

<1.5:1

5.0

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

5 - 1000 MHz

10.0 Min.

+14.0 Min.

-13 Max.

2.0:1 Max.

6.5 Max.

+15

52 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power ... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 1000 MHz

Gain (dB)

- 5

- 10

- 15

- 20

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 1000 MHz

Start 5 MHz

Stop 1000 MHz

+18

+17

+16

+15

+14

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 1000 MHz

Start 5 MHz

Stop 1000 MHz

Start 5 MHz

Stop 1000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

2/22/07

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

Rev.

FP9333 Related Products

	FP9333	BX9333	PN9333	TM9333	TN9333
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	10 dB	10 dB	10 dB	10 dB	10 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2
Maker	API Technologies	API Technologies	-	API Technologies	API Technologies
