FP9333PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size77KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9333PM Overview

RF AMPLIFIER MODEL

FP9333PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

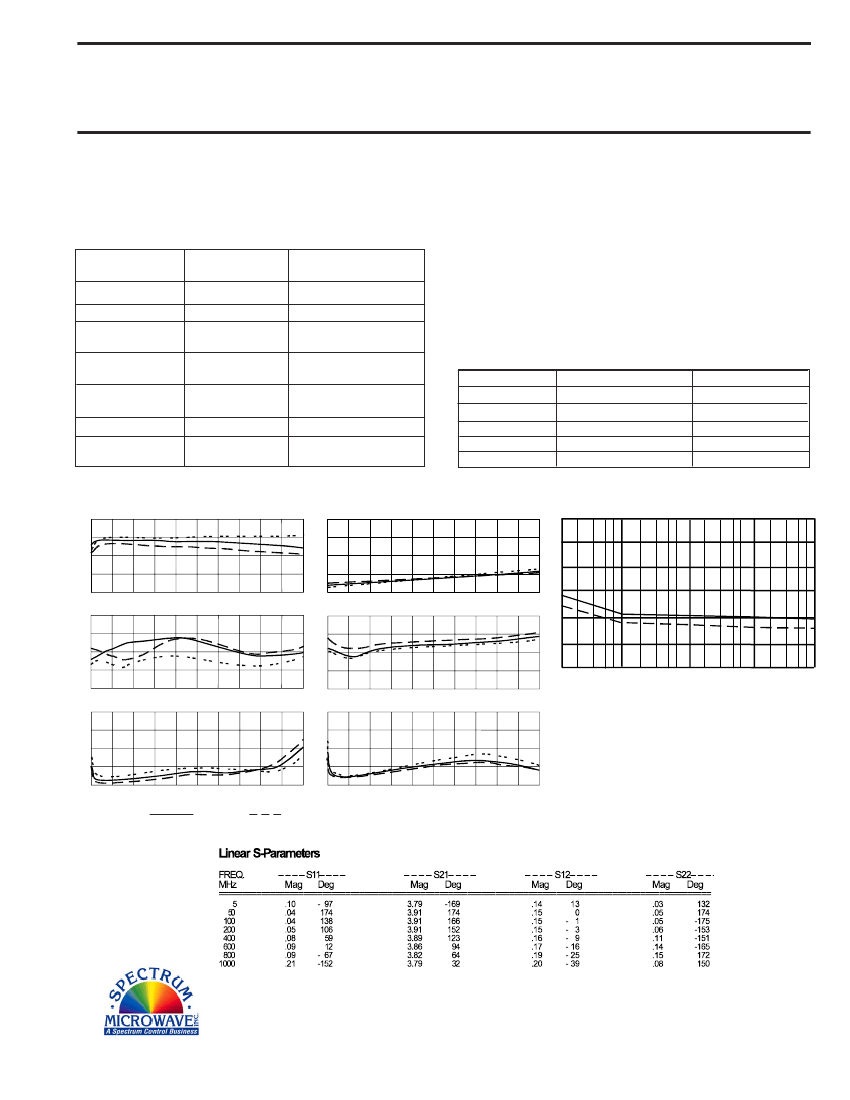

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9333PM

Features

!

Superior Phase Noise Performance

Medium Gain: 11.5 dB Typical

Output Power: +16 dBm Typical

Operating Temp. -55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

5 - 1000 MHz

11.5

+16.0

-15

<1.25:1

<1.5:1

5.0

+15

48

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 1000 MHz

10.0 Min.

+14.0 Min.

-13 Max.

2.0:1 Max.

6.5 Max.

+15

52 Max.

Available as:

TM9333PM, 4 Pin TO-8 (T4)

TN9333PM, 4 Pin Surface Mount (SM3)

FP9333PM, 4 Pin Flatpack (FP4)

BX9333PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +50 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +44 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-166

-172

-173

Guarantee (Min.)

-162

-168

-169

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise Figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

13

12

11

10

9

+18

+17

+16

+15

+14

Start

2.0

1.5

1.0

5 MHz

Stop 1000 MHz

Start 5 MHz

Stop 1000 MHz

Gain (dB)

0

- 5

-10

-15

-20

6

5

4

3

2

2.0

1.5

1.0

Start 5 MHz

Reverse Isolation (dB)

-130

-140

-150

-160

Phase Noise (dBc/Hz)

Stop 1000 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

-170

-180

-190

100

1K

10K

100K

1M

Start 5 MHz

Stop 1000 MHz

_________Guarantee __ __ __ __Typical

Input VSWR

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency: 100 MHz

Power Output: +16 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 1000 MHz

Start 5 MHz

Stop 1000 MHz

Start 5 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/1/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
