FP9336: DescriptionRF AMPLIFIER MODEL; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

FP9336 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9336

Features

High Gain: >17 dB Typ. (100-2300 MHz)

Medium Output Power: +13 dBm Minimum

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

TYPICAL

Ta= 25

ºC

100 - 2300 MHz

17.5

>14.0

-30

<1.5:1

<4.5

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

100 - 2300 MHz

15.5 Min.

+13.0 Min.

-26 Max.

2.0:1 Max.

6.0 Max.

+15

85 Max.

Available as:

TM9336, 4 Pin TO-8 (T4)

TN9336, 4 Pin Surface Mount (SM3)

FP9336, 4 Pin Flatpack (FP4)

BX9336, Connectorized Housing (H1)

PN9336,

Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +40 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +35 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +25 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power ... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

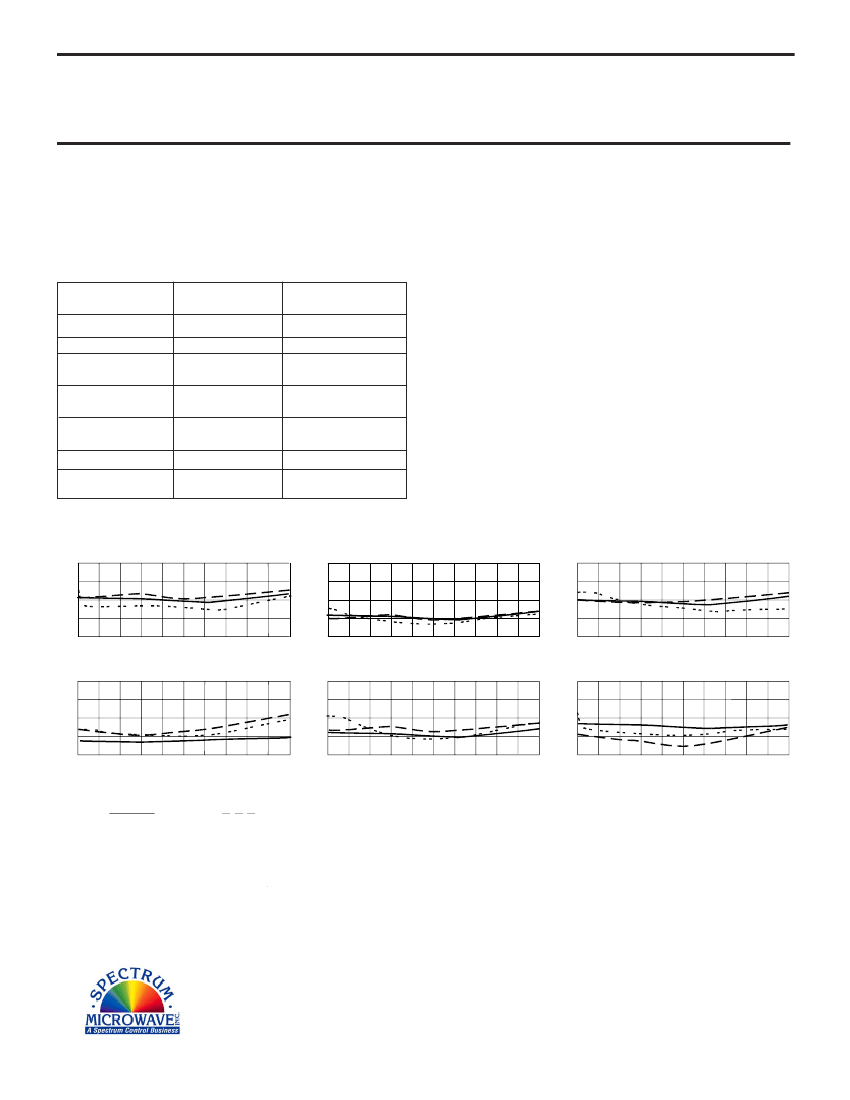

Typical Performance Data

Start 100 MHz

Stop 2300 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 100 MHz

Stop 2300 MHz

Noise Figure (dB)

Start 100 MHz

Stop 2300 MHz

+18

+17

+16

+15

+14

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 100 MHz

Stop 2300 MHz

Start 100 MHz

Stop 2300 MHz

Start 100 MHz

Stop 2300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/19/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9336 Related Products

	FP9336	BX9336	PN9336	TM9336	TN9336
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	-	compli	compli	compli	compli
Other features	-	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	-	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	-	15.5 dB	15.5 dB	15.5 dB	15.5 dB
Maximum input power (CW)	-	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	-	2300 MHz	2300 MHz	2300 MHz	2300 MHz
Minimum operating frequency	-	100 MHz	100 MHz	100 MHz	100 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	-	2	2	2	2
Base Number Matches	-	1	1	-	1
