ABMM-FREQ-18-R070-4-X-F datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABMM-FREQ-18-R070-4-X-F

ABMM-FREQ-18-R070-4-X-F: DescriptionParallel - Fundamental Quartz Crystal, 6MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size183KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABMM-FREQ-18-R070-4-X-F Overview

Parallel - Fundamental Quartz Crystal, 6MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4

ABMM-FREQ-18-R070-4-X-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	AT CUT CRYSTAL; BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	18 pF
Manufacturer's serial number	ABMM
Installation features	SURFACE MOUNT
Maximum operating frequency	11.999 MHz
Minimum operating frequency	6 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	70 Ω
surface mount	YES
Terminal surface	Silver (Ag)

Preview

Download Datasheet

View All

CERAMIC SURFACE MOUNT MICROPROCESSOR CRYSTAL

ABMM

FEATURES:

• Suitable for reflow

• Low in height - suitable for thin equipment

• AT-strip cut offers a tight tolerance & stability

APPLICATIONS:

• Computers, Modems, Microprocessors

• Communication, Test equipment

• PCMCIA

RoHS

Compliant

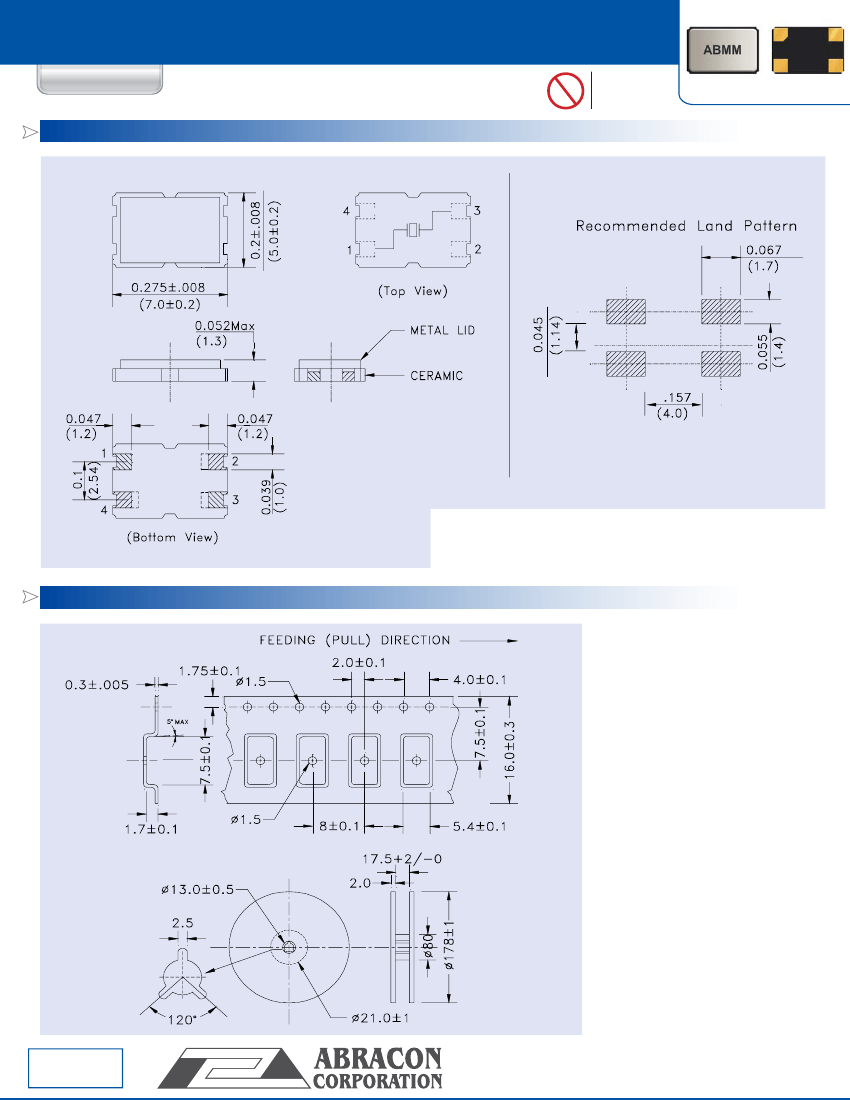

7.0 x 5.0 x 1.3 mm

| | | | | | | | | | | | | | |

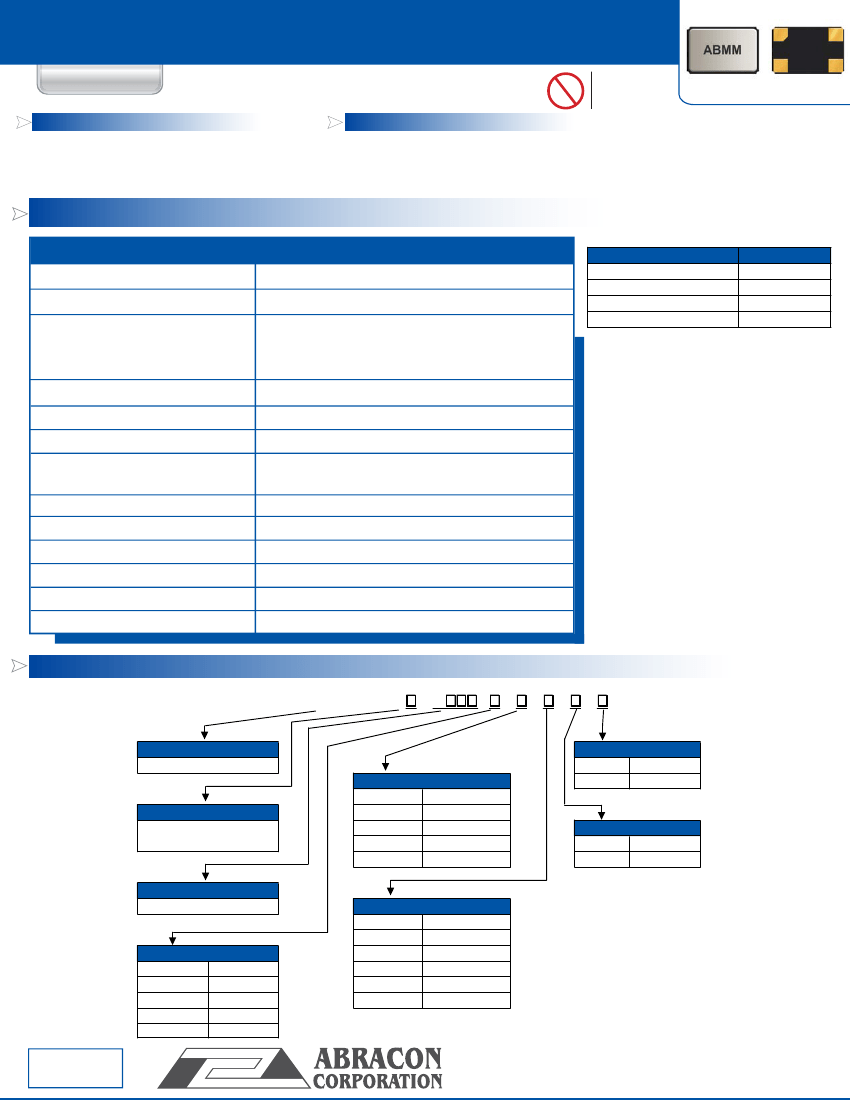

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

ABMM

6.0 MHz to 125 MHz

AT (see option)

Fundamental 6.0 MHz - 33.0 MHz

Third-Overtone for F ~ 33.01 MHz - 125 MHz

- 10°C to + 60°C (see options)

- 40°C to + 85°C

± 50 ppm max. (see options)

± 50 ppm max. (see Table 1); ± 100 ppm @

-10 °C to + 60° C for Fundamental BT

See Table 1

7pF max.

18pF (see options)

500μW max., 100μW typical

± 5ppm max.

500MW min at 100Vdc ± 15V

TABLE 1

Frequency (MHz)

6.000 - 11.999(Fund)

12.000 - 20.000(Fund)

20.000 - 33.000(Fund)

33.000 - 125.00(3rd O/T)

ESR (Ω)

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Stability over the

Operating Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C Per Year

Insulation Resistance

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABMM - Frequency -

Frequency

XX.XXXX MHz

-R

Packaging

Blank

Bulk

Load Capacitance

Please specify CL in pF or

S for Series

Freq. Tolerance

± 10 ppm max.

± 15 ppm max.

± 20 ppm max.

± 25 ppm max.

± 30 ppm max.

Tape & Reel

Mode

Fund.AT>=33MHz

Fund BT*

(*) Note: ±100ppm max stability

ESR

RXXX (Value in

)

from -10ºC to +60ºC only.

Operating Temp.

0°C ~ +70°C

-20°C ~ +70°C

-30°C ~ +70°C

-30°C ~ +85°C

-40°C ~ +85°C

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Freq. Stability

± 10 ppm max.

± 15 ppm max.

± 20 ppm max.

± 25 ppm max.

± 30 ppm max.

± 35 ppm max.

Revised: 05.24.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
