ABMM2-14.31818MHZ-7-D1-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABMM2-14.31818MHZ-7-D1-T

ABMM2-14.31818MHZ-7-D1-T: DescriptionParallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size787KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABMM2-14.31818MHZ-7-D1-T Overview

Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4

ABMM2-14.31818MHZ-7-D1-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	2 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	18 pF
Manufacturer's serial number	ABMM2
Installation features	SURFACE MOUNT
Nominal operating frequency	14.31818 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L6.0XB3.6XH1.2 (mm)/L0.236XB0.142XH0.047 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

CERAMIC SURFACE MOUNT LOW

PROFILE QUARTZ CRYSTALS

ABMM2

RoHS

Compliant

APPLICATIONS:

• Computers, Modems, Microprocessors

• Communication, Test equipment

• PCMCIA

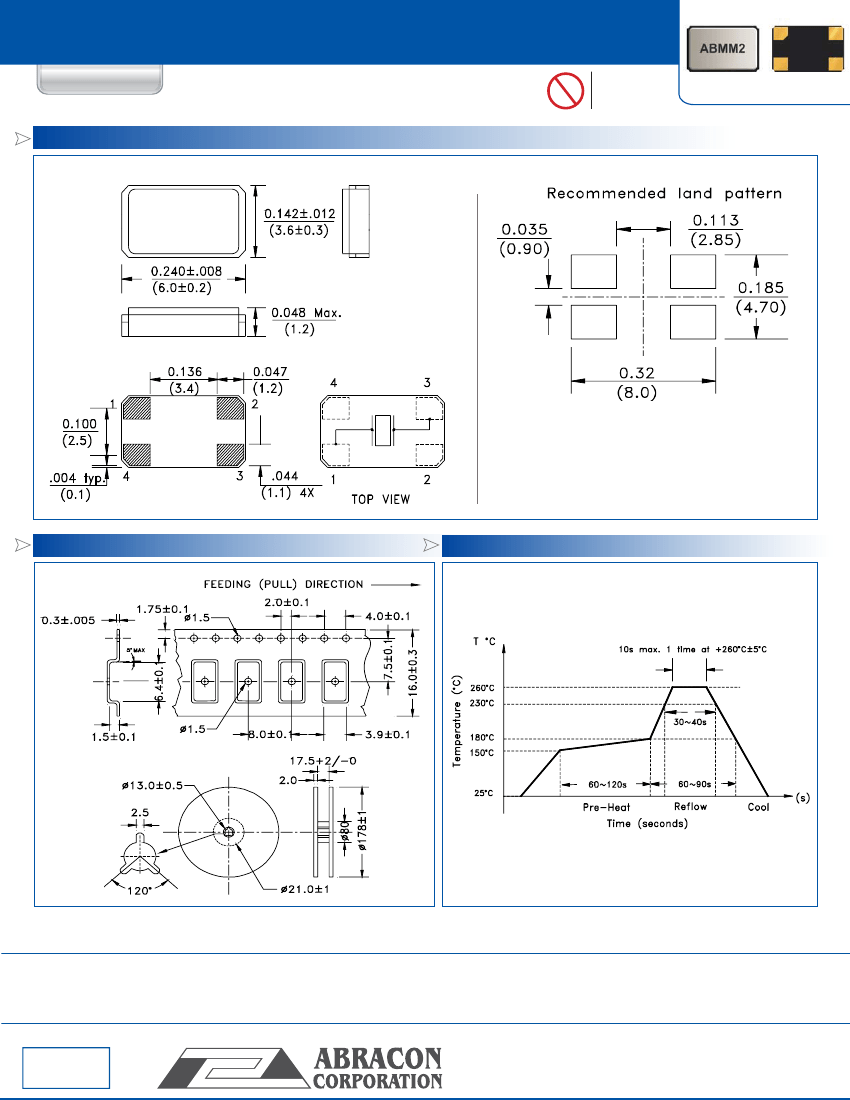

6.0 x 3.6 x 1.2 mm

| | | | | | | | | | | | | | |

FEATURES:

• Suitable for RoHS reflow profile

• Low height 1.2mm

• Seam sealed ceramic package assure high reliability.

• Available tight tolerance and stability

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

ABMM2 Series

7.3728MMHz to 110.00MHz

7.3728MHz ~ 30.00MHz (Fundamental: Standard)

30.01MHz ~ 100.00MHz (3rd Overtone: Standard)

100.01MHz ~ 110.00MHz (5th Overtone: Standard)

30.01.00MHz ~ 50.00MHz (Fundamental: See options)

-10°C to + 60°C (see option)

- 40°C to + 85°C

± 20 ppm max. (See Options)

± 20 ppm max. (See Table 1)

See Table 1

7pF max.

18pF (see options)

500µW max., 100µW typical

± 2ppm max.

500M

Ω

min.

@ 100Vdc ± 15V

Operating Temperature

Storage Temperature

Frequency Tolerance @ 25°C

Frequency Stability over Operating

Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C First Year

Insulation Resistance

TABLE 1

ESR (

Ω

) max

ESR (

Ω

) max

Frequency (MHz)

150

7.3728 - 7.999999(Fund)

30 - 100 (3rd OT)

8.0 - 9.999999(Fund)

100.001 - 110 (5th O/T)

10.0 - 50.0(Fund)

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

Frequency in MHz

e.g. 24.576MHz

14.31818MHz

26.000MHz

Load Capacitance

Please specify CL in pF (8 to

33pF) or S for Series

Please contact ABRACON

for other values

ABMM2 –

MHz -

Packaging

Blank: Bulk

T: 1000pcs/reel

T2: 250pcs/reel

Resonance Mode

F: Fund.AT for >30MHz

Frequency Stability (ppm)

Operating temp.

±10

-----

±20

Std

-----

±50

-----

±100

-----

J10

K10

R□

□: Specify a value in Ω

(e.g.: R40)

Custom ESR if other

than standard

0ºC to +50ºC

-10ºC to +50ºC

Freq. Tolerance

1: ± 10 ppm

7: ± 15 ppm

-10ºC to +60ºC

-20ºC to +70ºC

-40ºC to +85ºC

-40ºC to +105ºC

-40ºC to +125ºC

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 07.30.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
