ABMM2-FREQ-CL-R060-B2-FB-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABMM2-FREQ-CL-R060-B2-FB-T

ABMM2-FREQ-CL-R060-B2-FB-T: DescriptionParallel - 3Rd Overtone Quartz Crystal, 30MHz Min, 100MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size602KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABMM2-FREQ-CL-R060-B2-FB-T Overview

Parallel - 3Rd Overtone Quartz Crystal, 30MHz Min, 100MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4

ABMM2-FREQ-CL-R060-B2-FB-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	2 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	500 µW
frequency stability	0.0005%
frequency tolerance	20 ppm
JESD-609 code	e4
Manufacturer's serial number	ABMM2
Installation features	SURFACE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	L6.0XB3.6XH1.2 (mm)/L0.236XB0.142XH0.047 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

CERAMIC SURFACE MOUNT LOW

PROFILE QUARTZ CRYSTALS

ABMM2

RoHS

Compliant

APPLICATIONS:

• Computers, Modems, Microprocessors

• Communication, Test equipment

• PCMCIA

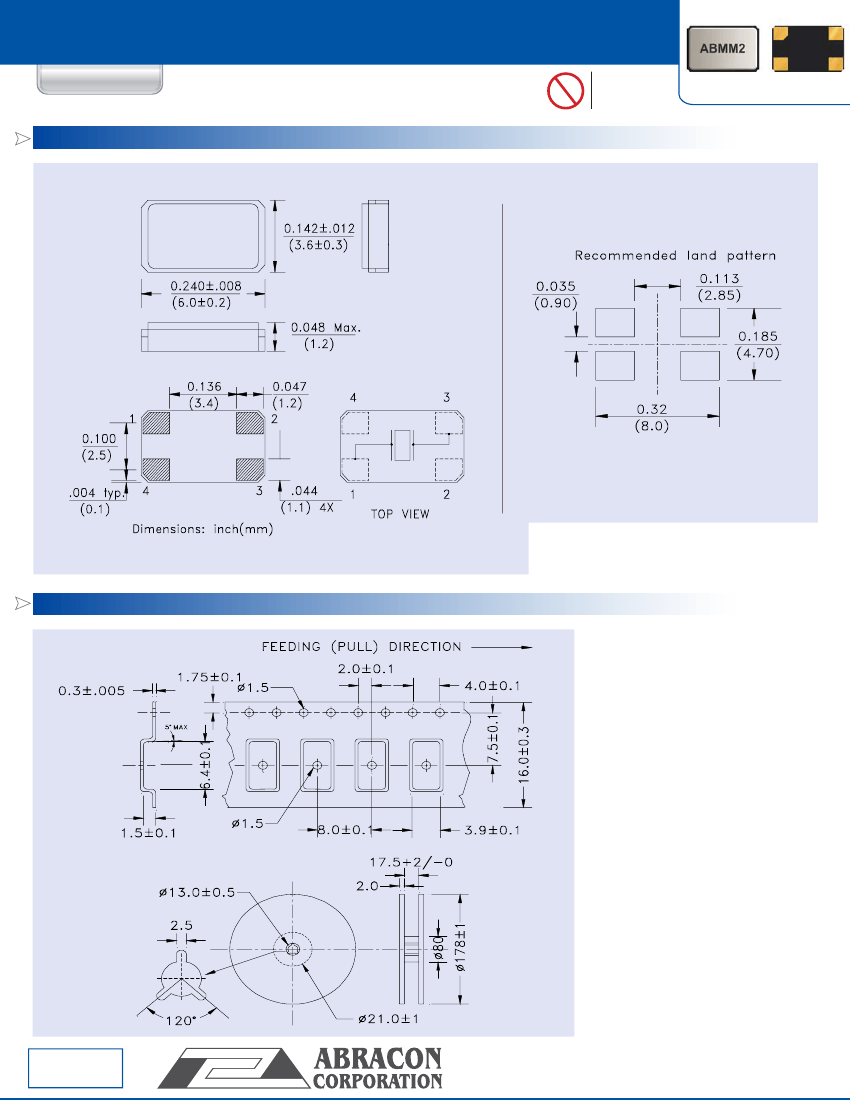

6.0 x 3.6 x 1.2 mm

| | | | | | | | | | | | | | |

FEATURES:

• Suitable for solder reflow

• Low in height - suitable for thin equipment

• ATstrip cut offers a tight tolerance & stability

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance @ 25°C

TABLE 1

ABMM2 Series

8.00 MHz - 110.00 MHz

8.00 MHz ~ 50.00 MHz (Fundamental)

30.01 MHz ~ 100.00 MHz (3rd Overtone)

90.00 MHz ~ 110.00 MHz (5thOvertone)

-10°C to + 60°C (See Options)

- 40°C to + 85°C

± 20 ppm max. (See Options)

8.0 - 9.9 (Fund)

10.0 - 50.0 (Fund)

30 - 100 (3rd OT)

90 - 110 (5th O/T)

Frequency (MHz) ESR (Ω)

Frequency Stability over Opera-

ting Temp. (Ref to +25°C)

± 20 ppm max. (See Table 1)

Equivalent Series Resistance

See Table 1

Shunt Capacitance C

7pF max.

Load Capacitance C

18pF (see options)

Drive Level

500µW max., 100µW correlation

Aging at 25°C First Year

± 2ppm max.

Insulation Resistance

500MΩ min. @ 100Vdc ± 15V

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABMM2 - Frequency -

Frequency

-R

Packaging

XX.XXXX MHz

Freq. Tolerance

± 10 ppm

± 15 ppm

ESR

T for Tape and Reel

Load Capacitance

Please specify CL in pF or S

for Series

RXXX (Value in Ω

)

F for Fund. AT>30MHz

FB for Fund BT>30MHz

Mode

Temp.

Range º

0ºC to +50ºC

-10ºC to +50ºC

-10ºC to +60ºC

-20ºC to +70ºC

-40ºC to +85ºC

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Frequency -vs.- Temperature

±4 ppm

±5 ppm

±10 ppm

max.

±20 ppm

max.

Standard

Revised: 05.01.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
