32.768kHz SMD LOW PROFILE CRYSTAL

ABS06

FEATURES:

• Miniature size 2.0 x 1.2 x 0.6mm ideal for high density circuit boards

• Ceramic package offers excellent environmental & heat resistance

• Extended temperature -55°C to +125°C for industrial applications

RoHS/RoHS II Compliant

2.0 x 1.2 x 0.6mm

Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable

APPLICATIONS:

• Wide range in communication & measuring equipment

• Commercial & Industrial applications

• Wireless communications

• PDA and Palm Pilots

STANDARD SPECIFICATIONS:

Parameters

Frequency

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance @+25°C

Temperature Coefficient:

Turn-over temperature:

Equivalent series resistance (R1)

Load capacitance (CL)

Drive Level

Q value

Aging@25°C±3°C

Insulation Resistance

12.5

0.1

9000

-3

500

Minimum

Typical

32.768

Flexural Mode (Tuning Fork)

-40

+85

-55

+125

-20

-0.04

+20

-0.03

+25

+20

-0.02

+30

110

0.5

Maximum

Units

kHz

ºC

ppm

ppm/T²

ºC

kΩ

µW

ppm

MΩ

See options

Tested at 0.5uW

Notes

For -40 ~ +85°C option

For -40 ~ +125°C option

& -55 ~ +125°C option

See options

First year

@ 100Vdc ± 15V

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ABS06 – 32.768 kHz -

Load Capacitance

Blank: 12.5pF

9: 9pF

7: 7pF

6: 6pF

4P: 4pF

Operating Temp. Range

Blank: -40 ~ +85°C

H: -40 ~ +125°C

W: -55 ~ +125°C

Freq. Tolerance

Blank: ±20ppm

1: ±10ppm

4: ±30ppm

Packaging

Blank: Bulk

T: Tape & Reel

(3000pcs/reel)

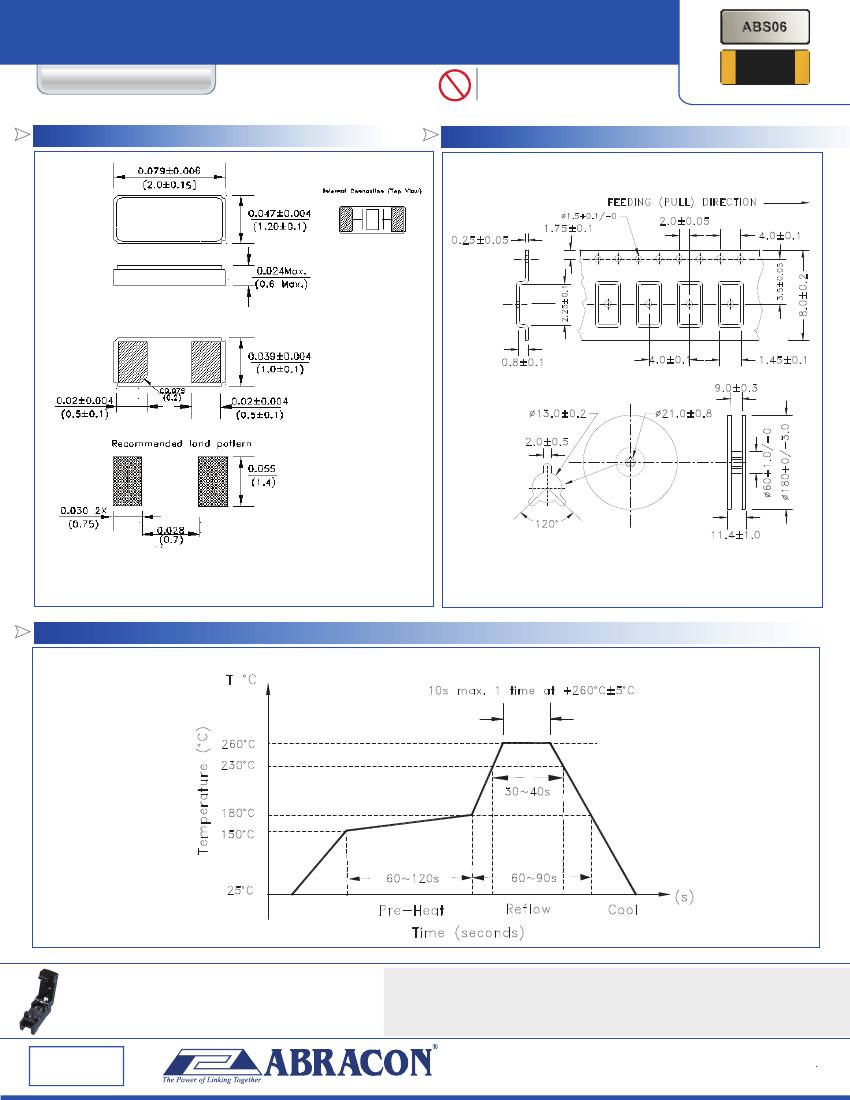

ABRACON IS

ISO 9001 / QS 9000

ISO 9001:2008

CERTIFIED

LLC

2 Faraday, Suite# B

Irvine

CA 92618

Revised: 04.09.15

Ph. 949.546.8000

Fax. 949.546.8001

Visit

www.abracon.com

for Terms and Conditions of Sale
