MO44PG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MO44PG

MO44PG: DescriptionDouble Balanced Mixer; CategoryWireless rf/communication Radio frequency and microwave; File Size505KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

MO44PG Overview

Double Balanced Mixer

MO44PG Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	10.5 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

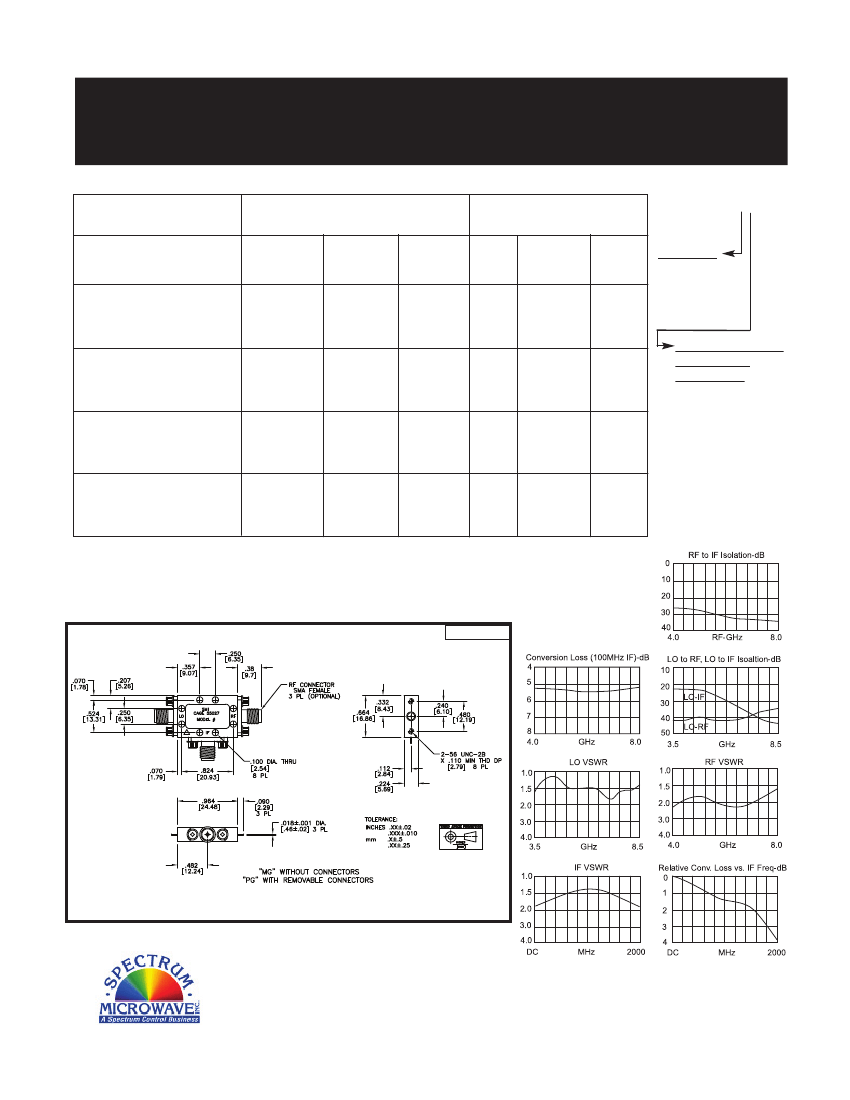

Double Balanced Mixer

Octave Band

Electrical Specifications:

(1)

Model MO4xxG

RF 4.0 to 8.0 GHz

Conditions

Parameter

SSB Conversion

loss:

(2) (3)

Isolation

LO to RF:

LO to IF:

RF to IF:

Input 1 dB

Compression Point:

RF (GHz)

4.0-8.0

LO (GHz)

3.5-8.5

4.0-8.0

3.5-8.5

DC-2000

IF (MHz)

DC-500

DC-1500

DC-2000

Min

Specifications

Typical

5.5 dB

7.0 dB

8.5 dB

38 dB

30 dB

+1 dBm

+4 dBm

+8 dBm

+12 dBm

+11 dBm

+14 dBm

+18 dBm

+22 dBm

+7 dBm

+10 dBm

+14 dBm

+19 dBm

MO43

MO44

MO46

MO47

MO43

MO44

MO46

MO47

MO43

MO44

MO46

MO47

Max

7.0 dB

8.5 dB

10.5 dB

Model MO4xxG

LO Power

3 = +7 dBm

4 = +10 dBm

6 = +14 dBm

7 = +19 dBm

Drop-In Module or

With SMA(F)

Connectors

M = Module

P = With Connectors

25 dB

20 dB

Input Third Order

Intercept Point:

4.0-8.0

3.5-8.5

DC-2000

LO Power:

(4)

4.0-8.0

3.5-8.5

DC-2000

Notes:

1. Specifications are guaranteed when tested as a downconverter in a 50 Ohm system from -55˚C to +100˚C

with the nominal LO power. Specifications indicated as typical are not guaranteed.

2. Noise figure is typically within ±0.5 dB of conversion loss for IF frequencies greater than 10 MHz.

3. Conversion loss typically degrades less than 0.5 dB at +100˚C and improves less than 0.5 dB at -55˚C.

4. Usable LO drives are up to 2 dB below and 3 dB above nominal.

MO4xxG

Outline: G

Typical

Performance

at 25˚C

All dimensions are in inches and [mm].

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, FL 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, PA 19154 · PH (215) 464-4000 · Fax (215) 464-4001

REV A

12/1/09
