AD7537LP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD7537LP

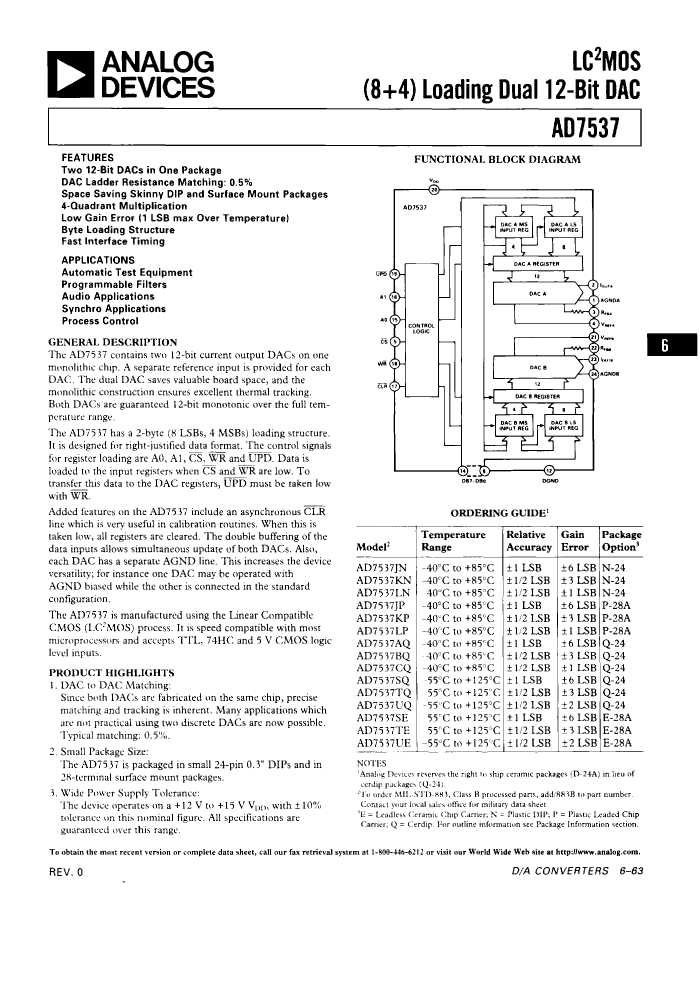

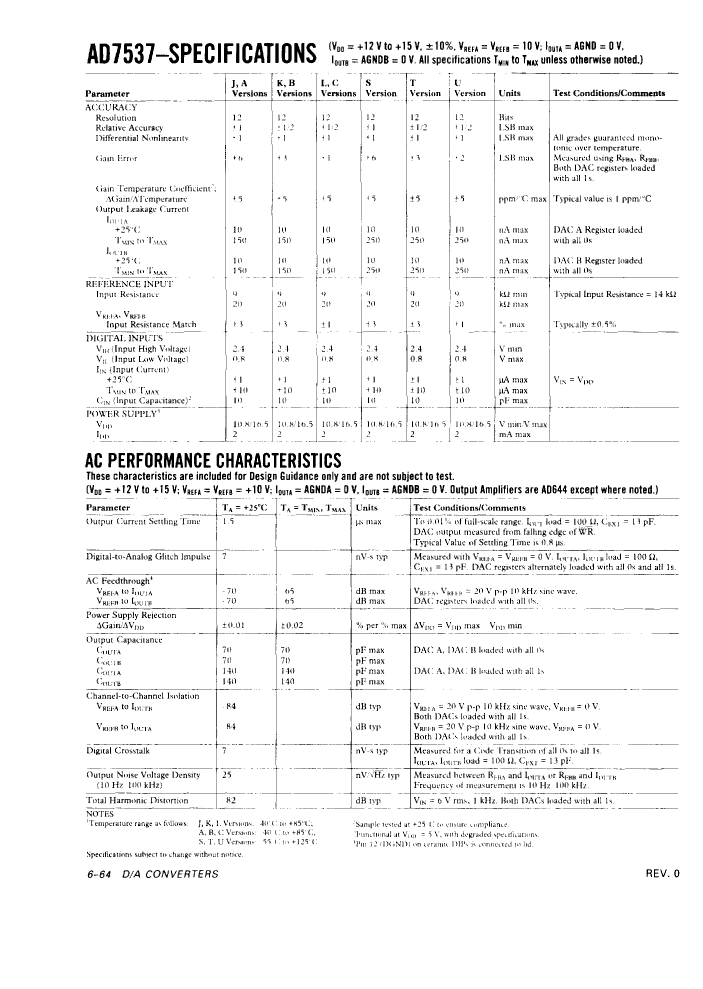

AD7537LP: DescriptionDUAL, PARALLEL, 8 BITS INPUT LOADING, 0.8 us SETTLING TIME, 12-BIT DAC, PQCC28, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC converter; File Size785KB，3 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AD7537LP Overview

DUAL, PARALLEL, 8 BITS INPUT LOADING, 0.8 us SETTLING TIME, 12-BIT DAC, PQCC28, PLASTIC, LCC-28

AD7537LP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
length	11.5062 mm
Maximum linear error (EL)	0.0122%
Humidity sensitivity level	1
Number of digits	12
Number of functions	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
Certification status	COMMERCIAL
Maximum seat height	4.57 mm
Nominal settling time (tstl)	0.8 µs
Nominal supply voltage	12 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.5062 mm
