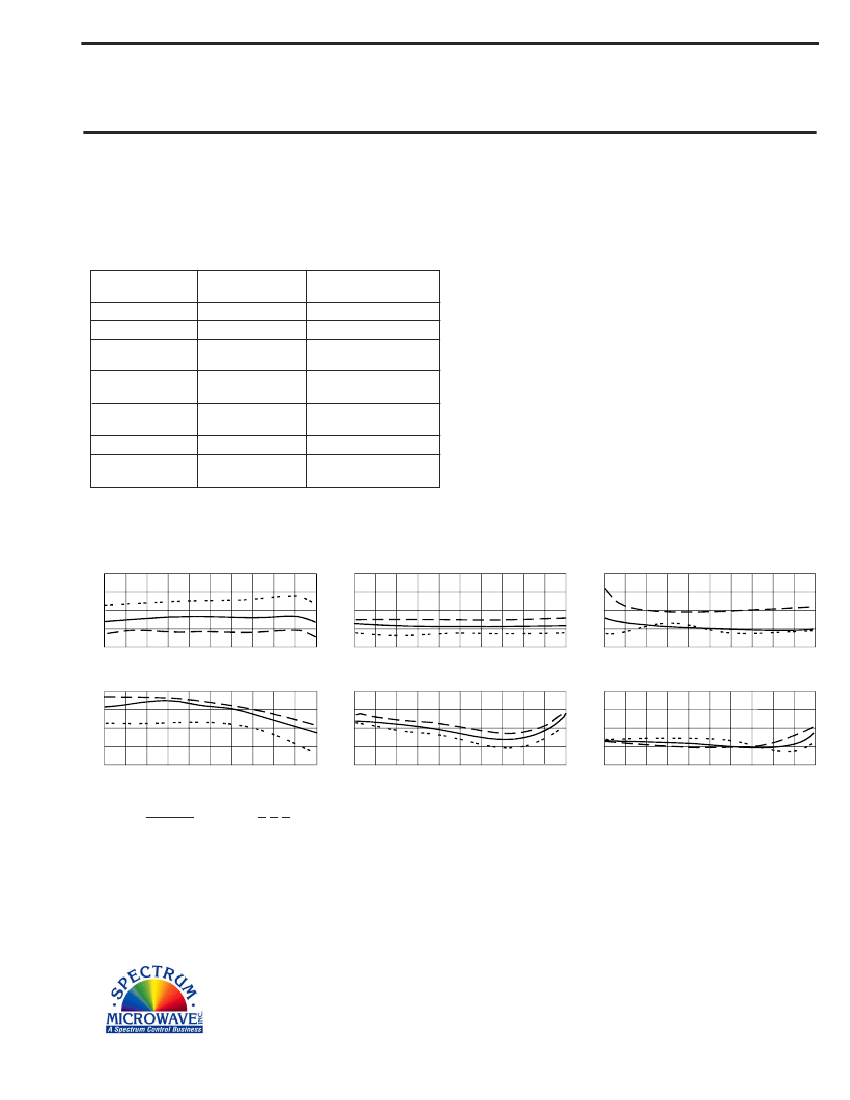

RF AMPLIFIER

MODEL

TM3094

Features

Low +5 Volt Operation

High Gain: 19.5 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM3094, 4 Pin TO-8 (T4)

TN3094, 4 Pin Surface Mount (SM3)

FP3094, 4 Pin Flatpack (FP4)

BX3094, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +46 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +27 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

50 - 2000 MHz

19.5

+14

-35

1.8:1

4.0

MIN/MAX

Ta = -55 ºC to +85 ºC

50 - 2000 MHz

18 Min.

+12 Min.

-30 Max.

2.0:1 Max.

6.0 Max.

75 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 50 MHz

Stop 2000 MHz

Reverse Isolation (dB)

- 25

- 30

- 35

- 40

Start 50 MHz

Stop 2000 MHz

Noise Figure (dB)

6.0

4.0

2.0

Start 50 MHz

Stop 2000 MHz

1 dB Comp. (dBm)

+15

+14

+13

+12

+11

Start 50 MHz

Stop 2000 MHz

Input VSWR

2.0

1.5

1.0

Start 50 MHz

Stop 2000 MHz

Output VSWR

2.0

1.5

1.0

Start 50 MHz

Stop 2000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

02/08/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
