FP3098 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP3098

FP3098: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size183KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP3098 Overview

RF AMPLIFIER MODEL

FP3098 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM3098

Features

Superior Phase Noise Performance

High Output Power: +30 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM3098, 4 Pin TO-8 (T4)

TN3098, 4 Pin Surface Mount (SM3)

FP3098, 4 Pin Flatpack (FP4)

BX3098, Connectorized Housing (H1L)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +66 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +63 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +45 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 300 MHz

13.5

+30

-17

1.5:1

5.0

+15

240

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 250 MHz

13 Min.

+29 Min.

-16 Max.

2.0:1 Max.

6.0 Max.

+15

250 Max.

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +17 Volts

Continuous RF Input Power .................................. +15 dBm

Short Term RF Input Power ........... 100 mW (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

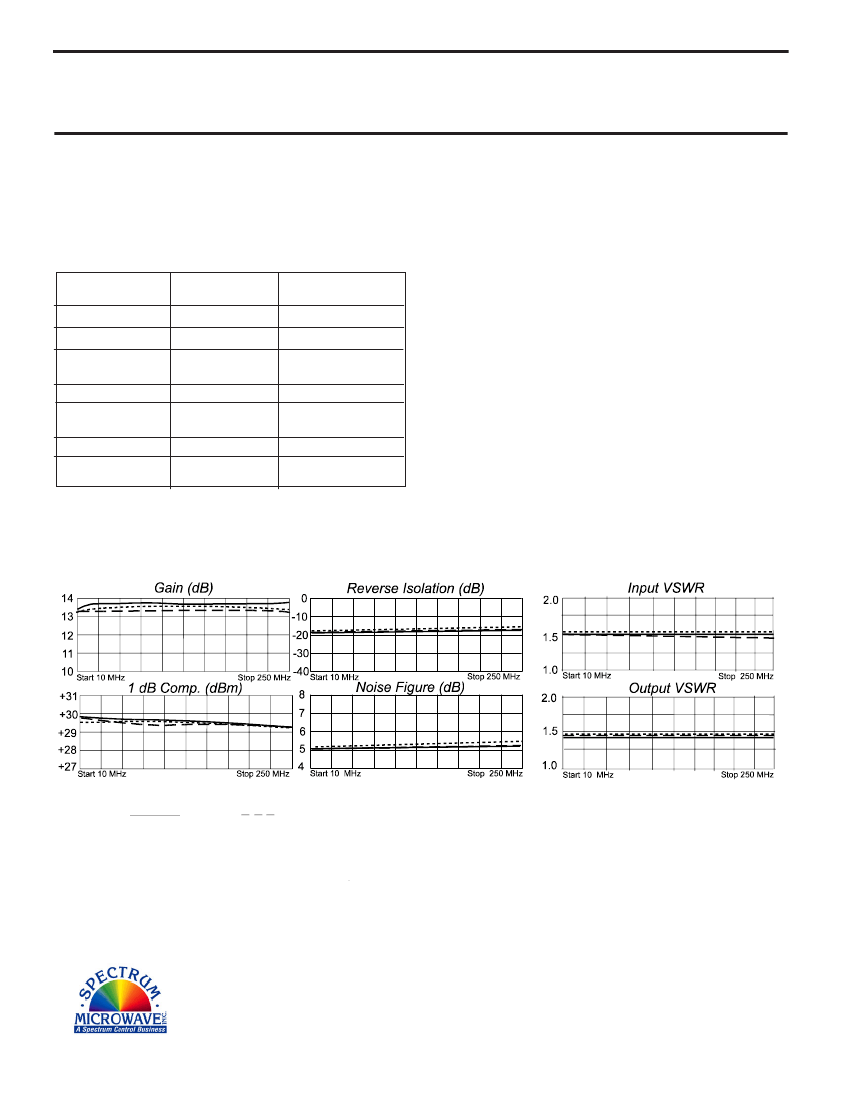

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

3/9/11

www.spectrummicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP3098 Related Products

	FP3098	BX3098	TM3098	TN3098
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	-	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	13 dB	13 dB	-	13 dB
Maximum input power (CW)	15 dBm	15 dBm	-	15 dBm
Maximum operating frequency	250 MHz	250 MHz	-	250 MHz
Minimum operating frequency	10 MHz	10 MHz	-	10 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	-	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	-	2
