FP5102: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5102 Overview

RF AMPLIFIER MODEL

FP5102 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	11 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

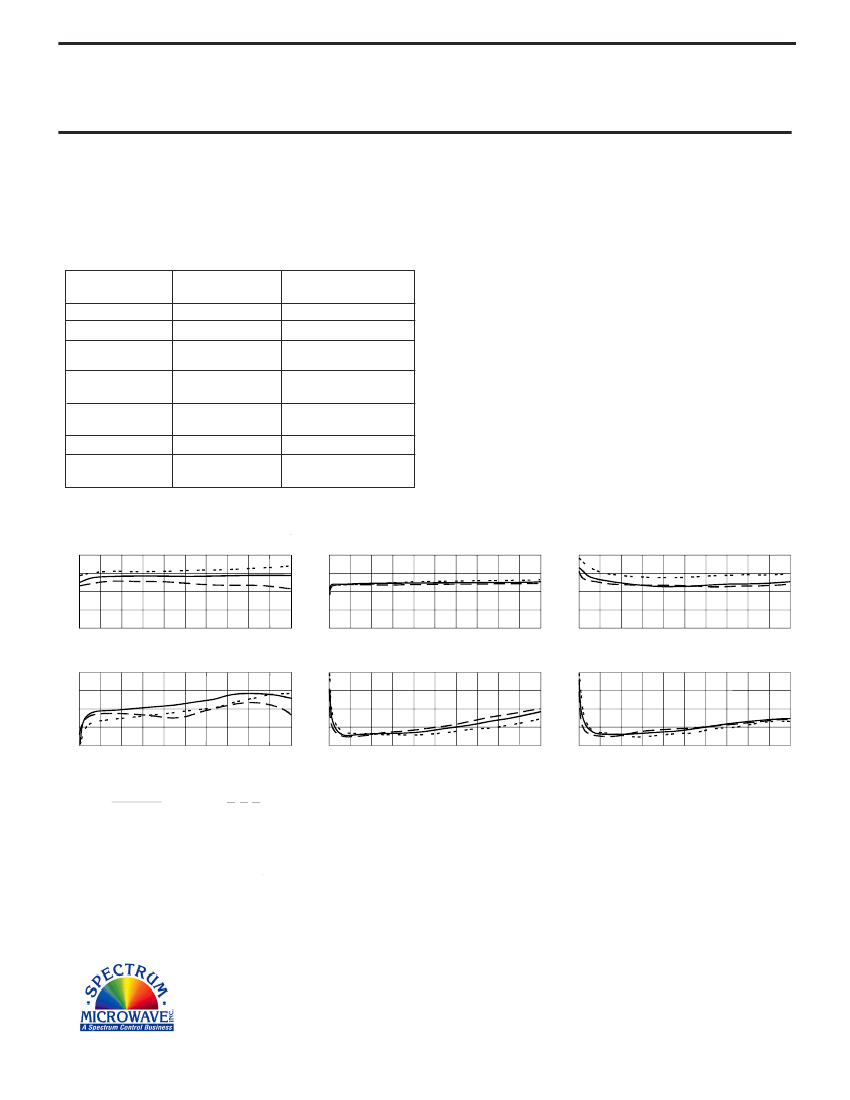

RF AMPLIFIER

MODEL

TM5102

Features

Medium Gain: 12.5 dB Typical

High Output Power: +22 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM5102, 4 Pin TO-8 (T4)

TN5102, 4 Pin Surface Mount (SM3)

FP5102, 4 Pin Flatpack (FP4)

BX5102, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point .......+52 dBm (Typ.)

Second Order Two Tone Intercept Point ........+46 dBm (Typ.)

Third Order Two Tone Intercept Point ............+36 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5-500 MHz

12.5

+22

-16

<1.5:1

5.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-500 MHz

11 Min.

+20 Min.

-15 Max.

2.0:1Max.

7.0 Max.

+15 Min.

90 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

- 10

- 20

- 30

Start 5 MHz

Stop 500 MHz

Reverse Isolation (dB)

Start 5 MHz

Stop 500 MHz

Noise Figure (dB)

- 40

Start 5 MHz

Stop 500 MHz

1 dB Comp. (dBm)

+24

+23

+22

+21

+20

Start 5 MHz

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

2.0

1.5

1.0

Start 5 MHz

Output VSWR

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

Linear S-Parameters

+ 85 ºC - - - - - - -55 ºC

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – –S12– – – –

– – – S22– – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

.14

- 82

4.20

-166

.12

115

.15

.03

4.36

175

.13

- 2

.05

100

.09

4.31

166

.13

- 6

.08

200

.16

4.24

150

.14

- 14

.13

300

.21

- 10

4.23

.15

- 24

- 4

.16

400

.23

- 42

4.27

.15

- 35

- 43

.16

500

.17

- 75

4.35

.16

- 47

- 94

.13

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/02/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5102 Related Products

	FP5102	BX5102	TM5102	TN5102
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	-
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	11 dB	11 dB	11 dB	-
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	-
Maximum operating frequency	500 MHz	500 MHz	500 MHz	-
Minimum operating frequency	5 MHz	5 MHz	5 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	-
Maximum voltage standing wave ratio	2	2	2	-
