FP5107: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size42KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5107 Overview

RF AMPLIFIER MODEL

FP5107 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	550 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM5107

Features

!

Low Noise Figure: <1.75 dB Typical

Gain: 15 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5107, 4 Pin TO-8 (T4)

TN5107, 4 Pin Surface Mount (SM3)

FP5107, 4 Pin Flatpack (FP4)

BX5107, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+22 dBm (Typ.)

Second Order Two Tone Intercept Point.........+16 dBm (Typ.)

Third Order Two Tone Intercept Point.............+13 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

TYPICAL

Ta= 25 ºC

10-550 MHz

15.0

>+2

-20

<1.75:1

<1.75

+15

9.0

MIN/MAX

Ta = -55 ºC to +85 ºC

10-550 MHz

14.0 Min.

+1.0 Min.

-18 Max.

2.0:1 Max.

2.3 Max.

+15

10.0 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage .......................................................... + 18Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

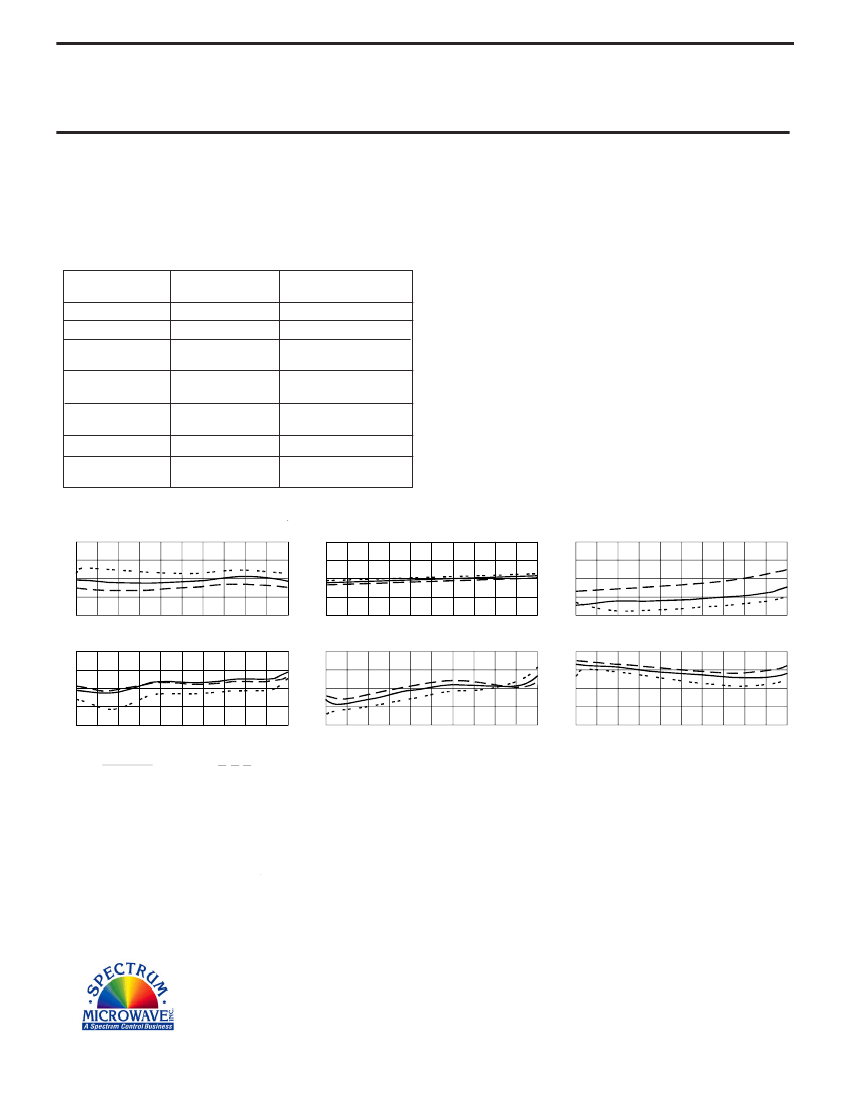

Typical Performance Data

17

16

15

14

13

Start 10 MHz

Stop 550 MHz

Gain (dB)

Reverse Isolation (dB)

0

- 10

- 20

- 30

- 40

Start 10 MHz

Stop 550 MHz

Noise Figure (dB)

3

2

1

Start 10 MHz

Stop 550 MHz

1 dB Comp. (dBm)

+ 5

+ 4

+ 3

+ 2

+ 1

Start 10 MHz

Stop 550 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 550 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 550 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

===========================================================================================

10

.14

- 29

5.70

-176

.09

-176

- 11

.29

50

.13

- 40

5.63

167

.09

166

- 14

.28

100

.15

- 64

5.59

154

.09

151

- 23

.27

200

.20

-106

5.54

127

.09

124

- 44

.26

300

.24

-143

5.49

101

.09

95

- 67

.25

400

.26

176

5.57

72

.10

69

- 92

.25

500

.26

117

5.56

41

.10

40

-125

.26

550

.28

80

5.47

23

.10

27

-146

.27

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/8/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5107 Related Products

	FP5107	BX5107	TM5107	TN5107
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	14 dB	14 dB	14 dB	14 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	550 MHz	550 MHz	550 MHz	550 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
